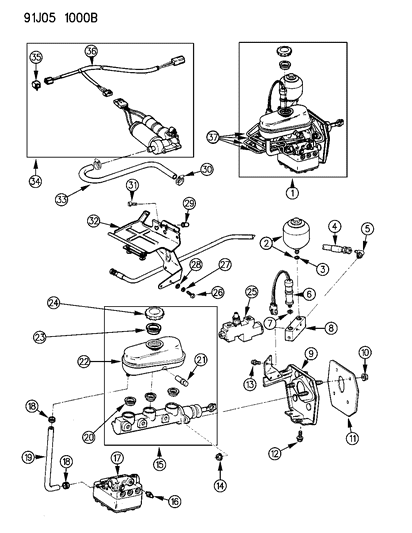

Diagram (1 of 1): BRAKES, SERVICE CYLINDER, BRAKE MASTER (1991) W/ANTI-LOCK BRAKING SYSTEM CHEROKEE, BRIARWOOD
1991 Jeep Cherokee Brake Master Cylinder Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    4637632
    ACCUMULATOR, ABS Brakes
  • 3
    4637629
    O-RING
  • 6
    4637654
    SWITCH, Accumulator (Delta Pressure A) Includes #7
  • 7
    4637652
    O-RING, Switch
  • 9
    4637627
    BRACKET ASSEMBLY, Mounting
  • 11
    4637641
    GASKET, Mounting
  • 12
    4637644
    SCREW, Modulator Mounting
    • Require Quantity: 2
  • 13
    4637648
    BOLT, Accumulator Block Mounting
  • 15
    4637621
    ACTUATOR & RESERVOIR ASSEMBLY
    • ACTUATOR & RESERVOIR ASSEMBLY
  • 15
    4746510
    ACTUATOR & RESERVOIR ASSEMBLY
    • ACTUATOR PACKAGE, Japan
  • 15
    4773177
    ACTUATOR & RESERVOIR ASSEMBLY
    • ACTUATOR REPAIR KIT
  • 15
  • 15
    R4773177
    ACTUATOR & RESERVOIR ASSEMBLY
    • ACTUATOR, ABS Brakes
  • 16
    4637628
    SWITCH, Modulator (Delta Pressure B)
  • 19
    4637646
    HOSE, Low Pressure Feed
  • 20
    4637623
    GROMMET, Reservoir to Actuator
    • Require Quantity: 3
  • 21
    4637625
    SWITCH, Fluid Level
  • 22
    4637622
    RESERVOIR ASSEMBLY, Also Includes Items #21,23 &24
  • 23
    4637624
    FILTER, Reservoir Cap
  • 24
    4637650
    CAP, Reservoir
  • 25
    52006221
    VALVE, Proportioning
  • 27
    J0120380
    WASHER, Bracket Mounting
    • Require Quantity: 3
  • 28
    52006803
    ISOLATOR, Bracket
    • Require Quantity: 3
  • 29
    34201595
    NUTSERT
    • Require Quantity: 2
  • 31
    Jeep 34201808
    34201808
    SCREW & WASHER, Bracket Mounting
    • Require Quantity: 2
  • 32
    52006800
    BRACKET ASSEMBLY, ABS Pump Mounting
  • 33
    52007682
    HOSE, Low Pressure
  • 36
    52004460
    HARNESS, Relay
  • 37
    4637634
    TUBE ASSEMBLY PACKAGE, Also Includes Clip
  • 4637631
    CLIP, Tubes
  • 4637656
    NIPPLE, Low Pressure Hose (120 Degrees)
  • 4637655
    NIPPLE, Low Pressure Hose (Straight)
  • 4637630
    O-RING, Fitting
  • 4637657
    SNAP RING, Pump Inlet Nipple Retaining
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1991 Jeep Cherokee parts. Parts like Brake Master Cylinder are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.1L Diesel, 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
