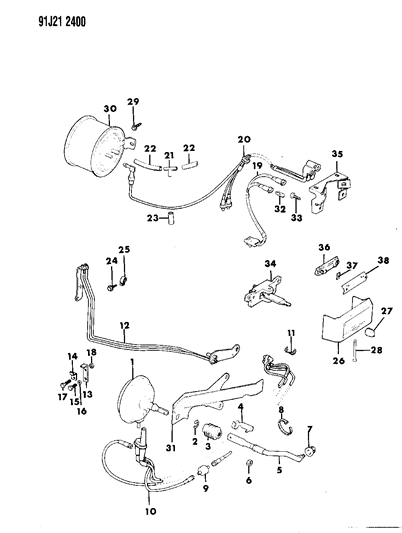

Diagram (1 of 1): TRANSMISSION, MANUAL & TRANSFER CASE CONTROLS SWITCH, TRANSFER CASE VACUUM N.P.G. MODEL 229 GRAND WAGONEER

1991 Jeep Grand Wagoneer Controls Switch, Transfer Case Vacuum Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
53004596
MOTOR, Vacuum

2
J4006924
E-RING, Boot

3
J3240126
BOOT, Shift Rod

4
J3241415
CLIP

5
J5363985
ROD ASSEMBLY, Adjusting

6
J0124824
NUT

7

3575333
GROMMET, Adjusting Rod
$11.20 $7.51
1
Add To Cart

8
6015756
STRAP, Vacuum Lines
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 4641780
$0.45 $0.29
1
Add To Cart

9
J5364511
VALVE, Vacuum Check

10
J5365166
HARNESS, Vacuum Motor to Vacuum Tubes

11
J0987269
RETAINER, Vacuum Harness

12
J5365165
TUBE ASSEMBLY, Vacuum Disconnect

13
J5364338
BRACKET, Vacuum Motor

14
J5364175
CLIP

15
J4006110
BOLT

16
J0120388
WASHER

17
S0180017
BOLT

18
J0271172
NUT

19
J5761733
WIRE, Front Axle Disconect Switch

20
53005194
HARNESS, Vacuum 2WD - 4WD

21
J3239827
TEE, Vacuum Connector, (1/4x1/4x3/16)

22
83300080
HOSE, Vacuum Bulk

23
J8125995
HOSE, Vacuum Bulk

24
J4005600
SCREW

25
J0140786
CLIP

26
55019846
BEZEL, Paint as Required

27
J3241055
KNOB, Select Drive Switch

28
J4007052
SCREW
- Require Quantity: 2

29
J9426241
SCREW
- Require Quantity: 2

30
J3232991
TANK, Vacuum

31
J5363522
BRACKET AND STRAP ASSEMBLY, Motor

32
J3209541
BULB

33
J4005932
SCREW
- Require Quantity: 2

34
53005279
SWITCH, Select Drive Lockout

35
J5761732
BRACKET, Axle Disconnect Switch

36
J5761999
SHIELD, Front Axle Disconnect Switch

37
J4007069
NUT
- Require Quantity: 2

38
J5761923
LENS, 2WD/4WD and Light Bar

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1991 Jeep Grand Wagoneer parts. Parts like Controls Switch, Transfer Case Vacuum are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.9L. Transmission: 3-Speed Automatic Transmission.
