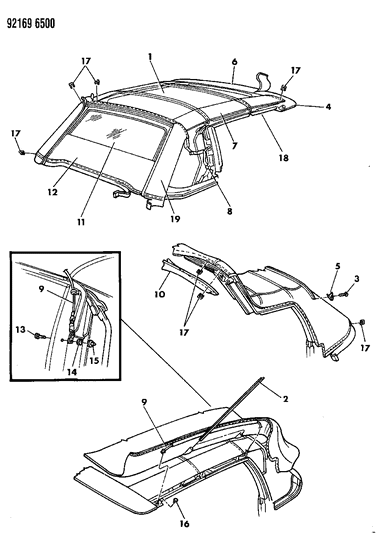

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS CONVERTIBLE TOP J BODY 27

1992 Chrysler LeBaron Convertible Top Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
FC87KV2
COVER ASSEMBLY (w/Three Pockets)
Champagne (Up to 02/03/92)
1
FC87KW7
COVER ASSEMBLY (w/Three Pockets)
- White (Up to 02/03/92)
1
FC87KX9
COVER ASSEMBLY (w/Three Pockets)
- Black (Up to 02/03/92)
1
FC87LB7
COVER ASSEMBLY (w/Three Pockets)
- Blue (Up to 02/03/92)
$652.00 $445.74
1
Add To Cart
1
GS88LB7
COVER ASSEMBLY (w/Three Pockets)
- Blue (After 02/03/92)
1
GS88LV2
COVER ASSEMBLY (w/Three Pockets)
- Champagne (After 02/03/92)
1
GS88LW7
COVER ASSEMBLY (w/Three Pockets)
- White (After 02/03/92)
1
GS88LX9
COVER ASSEMBLY (w/Three Pockets)
- Black (After 02/03/92)

2
4490133
BOW ASSEMBLY
#1 Bow
2
4490134
BOW ASSEMBLY
- #2 Bow
2
4490135
BOW ASSEMBLY
- #3 Bow

4
5253965
HEADER and LATCH ASSEMBLY

5
4491774
CAP, #3 Bow Moulding End
- Require Quantity: 2

6
4097784
PAD, Header

7
4549193
STAY, Side
- Require Quantity: 2

8
4713440
RAIL ASSEMBLY, f/Top, Right
RAIL ASSEMBLY, f/Top, Right
8
4713441
RAIL ASSEMBLY, f/Top, Right
- RAIL ASSEMBLY, f/Top, Left

9
4305011
CABLE
Spring
Require Quantity: 2
9
4655518
CABLE
- CABLE
- Require Quantity: 2
- Package Quantity: 1

10
GY34LB7
WELT, f/Top Header
Blue (After 6/29/92)
10
GY34LV2
WELT, f/Top Header
- Champagne (After 6/29/92)
10
GY34LW7
WELT, f/Top Header
- White (After 6/29/92)
10
GY34LX9
WELT, f/Top Header
- Black (After 6/29/92)
10
T902JB7
WELT, f/Top Header
- Blue (Up to 6/29/92)
10
T902JV2
WELT, f/Top Header
- Champagne (Up to 6/29/92)
10
T902JW7
WELT, f/Top Header
- White (Up to 6/29/92)
10
T902JX9
WELT, f/Top Header
- Black (Up to 6/29/92)

11
FC88KV2
WINDOW, Rear f/Top Heated
Champagne
11
FC88KW7
WINDOW, Rear f/Top Heated
- White
11
FC88KX9
WINDOW, Rear f/Top Heated
- Black
11
FC88LB7
WINDOW, Rear f/Top Heated
- Blue
$267.00 $180.48
1
Add To Cart

15
4491698
CAP
- Require Quantity: 2

16
4454701
RETAINER PLUG
- Require Quantity: 2

18
4114785
COVER ASSEMBLY, Headliner
FASTENER, Headliner
Require Quantity: 4
18
AR20JB9
COVER ASSEMBLY, Headliner
- Blue
18
AR20JV8
COVER ASSEMBLY, Headliner
- Champagne
18
AR20LAZ
COVER ASSEMBLY, Headliner
- Agate
18
AR20LM7
COVER ASSEMBLY, Headliner
- Red

19
4549193
STAY, Rear
- Require Quantity: 2

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1992 Chrysler LeBaron GTC parts. Parts like Convertible Top are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
