Lines & Hoses, Brake fit your 1992 Chrysler LeBaron GTC
Currently shopping for
1992 Chrysler LeBaron GTC
Change VehicleCategories Close X
Currently selected
Brakes, Service
Other Categories
Automatic Transmission
Body
Body - Doors And Related Parts
Body - Exterior Ornamentation
Body - Sheet Metal Except Doors
Clutch
Cooling
Electrical
Electrical - Instrument Panel And Consoles
Emission Systems
Engine
Exhaust
Frame & Bumpers
Front Suspension & Drive
Fuel
Heater & Air Conditioning
Manual Transmission & Transfer Case
Rear Suspension
Steering
Wheels & Jacks
Wiper & Washers And Cylinder & Keys
Parts Questions
2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

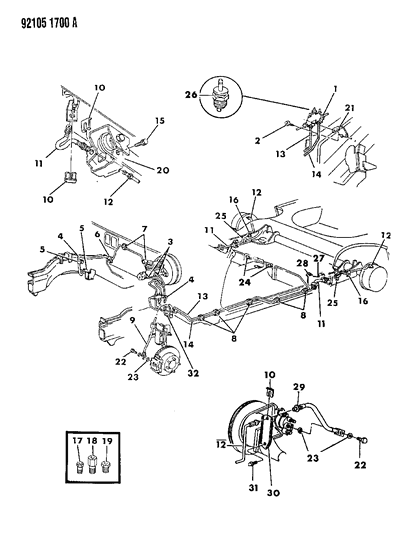

- 1.BRAKES, SERVICE LINES AND HOSES, BRAKE W/ANTI-LOCK BRAKES A,J,G BODIES

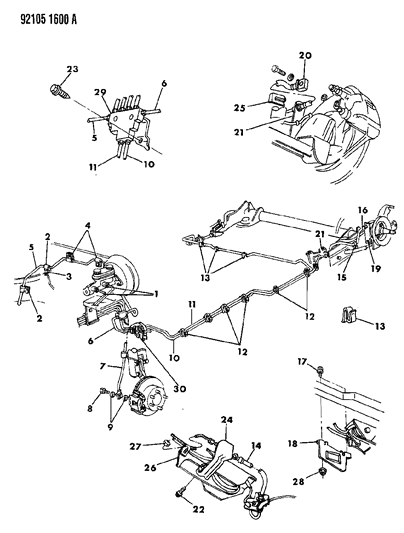

- 2.BRAKES, SERVICE LINES AND HOSES, BRAKE W/O ANTI-LOCK BRAKES J,G BODY
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
$72.68 $57.121 - 1
- 16502286
TUBE, Master Cylinder to Brake Valve- NUT, Tube to Hydraulic Unit
- 16502288
TUBE, Master Cylinder to Brake Valve- NUT, Tube to Hydraulic Unit
- 14485829
VALVE ASSEMBLY, Brake Differential, With Proportioning, in Line- With 14" Wheels, Power Disc Front, Drum Rear, w/o Anti-Lock
With 15" Wheels, With 4 Wheel Disc Brake, Without Anti-Lock - Fitting Vehicle Options: J
- 14509896
VALVE ASSEMBLY, Brake Differential, With Proportioning, in Line- With 15" Wheels, With 4 Wheel Front Disc Brake, Without Anti-Lock
- Fitting Vehicle Options: G
- 2
$6.75 $5.311
- 20152939
SCREW
- 3$72.68 $57.121
- 3
- 46031573
CLIP, Front Tube- Require Quantity: 2
- 4$72.68 $57.121
- 5$72.68 $57.121
- 5
- 5
- 5
- 6$72.68 $57.121
- 6
- 6
- 74423446
HOSE, Front Wheel Brake, Right- HOSE, Front Wheel Brake, Right
- 74423447
HOSE, Front Wheel Brake, Right- HOSE, Front Wheel Brake, Left
- 86030230
BOLT- Require Quantity: 4
- 83766495
CLIP- Require Quantity: 6
- 9
- 94423446
HOSE, Front Wheel Brake- w/ABS, Right
- 94423447
HOSE, Front Wheel Brake- w/ABS, Left
- 94509354
HOSE, Front Wheel Brake- w/o ABS, Right
- 94509355
HOSE, Front Wheel Brake- w/o ABS, Left
- 10
$9.10 $6.621
- 10$72.68 $57.121
- 10
- 10
- 11$37.84 $29.741
- 11$72.68 $57.121
- 11
- 11
- 11
- 123766495
CLIP- Require Quantity: 6
- 12$72.68 $57.121
- 13$72.68 $57.121
- 14$37.84 $29.741
- 14$72.68 $57.121
- 154313848
CLIP- Require Quantity: 2
- 15
- 15
$8.55 $5.791
- 164313848
CLIP
- 16$72.68 $57.121
- 16
- 166033833
TUBE, Rear Suspension Arm Brk., Rt. or Lt.- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 6034880
- 17
- 18
- 184383691
SHIELD, Rear Wheel Brk. Hose, Heat
- 196100153
BOLT, Rear Wheel Brake Hose Brkt.- Require Quantity: 2
- 19
- 204423290
BRACKET, Rear Wheel Brake Hose, Right- BRACKET, Rear Wheel Brake Hose, Right
- 204423291
BRACKET, Rear Wheel Brake Hose, Right- BRACKET, Rear Wheel Brake Hose, Left
- 204383708
HOSE, Rear Wheel Disc- Require Quantity: 2
- 214238626
BRACKET, Brake Valve Mtg.
- 214423412
BRACKET, Rear Wheel Disc Brk. Hose, Right- BRACKET, Rear Wheel Disc Brk. Hose, Right
- 214423413
BRACKET, Rear Wheel Disc Brk. Hose, Right- BRACKET, Rear Wheel Disc Brk. Hose, Left
- 226030230
BOLT- Require Quantity: 2
- 22
- 23
- 244383954
BRACKET, Rear Wheel Brake Hose, Right- BRACKET, Rear Wheel Brake Hose, Right
- 244383955
BRACKET, Rear Wheel Brake Hose, Right- BRACKET, Rear Wheel Brake Hose, Left
- 254313848
CLIP- Require Quantity: 4
- 25
- 264485296
CLIP- Require Quantity: 2
- 27
- 27
0219462
SHIELD, Rear Wheel Brake Hose Heat- NUT, Heat Shield Attach.
- Require Quantity: 2
- 274383691
SHIELD, Rear Wheel Brake Hose Heat- SHIELD, Rear Wheel Brake Hose Heat
- 294383708
HOSE, Rear Wheel Disc Brakes- Require Quantity: 2
- 294509013
JUNCTION BLOCK ASSEMBLY
- 305256096
BRACKET, Front Side Rail Brake Tube, Right- BRACKET, Front Side Rail Brake Tube, Right
- 305256097
BRACKET, Front Side Rail Brake Tube, Right- BRACKET, Front Side Rail Brake Tube, Left
- 304423412
BRACKET, Rear Wheel Disc Brake Hose, Right- BRACKET, Rear Wheel Disc Brake Hose, Right
- 304423413
BRACKET, Rear Wheel Disc Brake Hose, Right- BRACKET, Rear Wheel Disc Brake Hose, Left
- 325256096
BRACKET, Front Side Rail Brake Tube, Right- BRACKET, Front Side Rail Brake Tube, Right
- 325256097
BRACKET, Front Side Rail Brake Tube, Right- BRACKET, Front Side Rail Brake Tube, Left
- 6502737
NUT- Require Quantity: 2
- 6501734
SCREW, Bracket Attaching- Require Quantity: 2
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1992 Chrysler LeBaron GTC parts. Parts like Lines & Hoses, Brake are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
