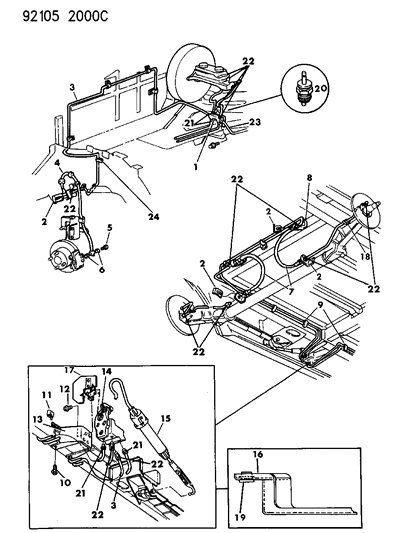

Diagram (1 of 1): BRAKES, SERVICE LINES AND HOSES, BRAKE S BODY
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 14485429
SWITCH ASSEMBLY, Brake Diff.Inc. Prop. Valve
- 2
$9.10 $6.101
- 3
$72.68 $57.121
- 44423446
HOSE, Front Wheel Brake- w/ABS, Right
- 44423447
HOSE, Front Wheel Brake- w/ABS, Left
- 44509354
HOSE, Front Wheel Brake- w/o ABS, Right
- 44509355
HOSE, Front Wheel Brake- w/o ABS, Left
- 56030230
BOLT, Brake Hose- Require Quantity: 2
- 6
- 7$48.43 $38.061
- 84313846
BRACKET, Rear Wheel Brake Hose C/Member- Require Quantity: 2
- 93766495
CLIP, Rear Tube Lt. Rail, Use Up to Oct. 23, 1989- CLIP, Rear Tube Lt. Rail, Use Up to Oct. 23, 1989
- Require Quantity: 6
- 94509059
CLIP, Rear Tube Lt. Rail, Use Up to Oct. 23, 1989- CLIP, Primary and Secondary Tube Rail, Use After Oct. 23, 1989
- Require Quantity: 4
- 10
6500879
SCREW- Require Quantity: 4
- 11
- 12
- 134313938
BRACKET, Height Sensing Brake Valve Mtg.
- 14
$146.00 $98.531 - 14$328.37 $258.041
- 154313969
ACTUATOR, Height Sensing Brake Valve, w/Std. Susp.- ACTUATOR, Height Sensing Brake Valve, w/Std. Duty Susp., w/5 and 6 Passenger Seating Pkg. (w/Ext. W.B., w/Heavy Duty Susp., w/Heavy Duty Tow Pkg., w/Passenger Seating Pkg.)
- Fitting Vehicle Options: 52
- 154313947
ACTUATOR, Height Sensing Brake Valve, w/Std. Susp.- ACTUATOR, Height Sensing Brake Valve, w/Std. Susp.
- Fitting Vehicle Options: 12, H,P
- 154383145
ACTUATOR, Height Sensing Brake Valve, w/Std. Susp.- ACTUATOR, Height Sensing Brake Valve, w/Heavy Duty Susp. (w/Std. Susp., w/7 Passenger Seating Pkg.)
- Fitting Vehicle Options: 12
- 154383586
ACTUATOR, Height Sensing Brake Valve, w/Std. Susp.- ACTUATOR, Height Sensing Brake Valve, w/Ext. W.B., w/Std. Duty Susp. (w/Ext. W.B., w/Heavy Duty Susp., w/Heavy Duty Tow Pkg., w/Passenger Seating Pkg.)
- Fitting Vehicle Options: 53
- 154383697
ACTUATOR, Height Sensing Brake Valve, w/Std. Susp.- ACTUATOR, Height Sensing Brake Valve, Ext. W.B., w/Heavy Duty Susp. (w/Std. Susp., w/7 Passenger Seating Pkg.)
- Fitting Vehicle Options: 53, H,P
- 154509203
ACTUATOR, Height Sensing Brake Valve, w/Std. Susp.- w/AWD, w/o ABS (w/Ext. W.B., w/Heavy Duty Susp., w/Heavy Duty Tow Pkg., w/Passenger Seating Pkg.)
- Fitting Vehicle Options: D,P
- 16
- 174383648
SHIELD, Height Sensing Brake Valve
- 18
$6.75 $5.311 - 184313025
CLIP, Rear Axle Brake Tube- FWD
- Require Quantity: 2
- 186100273
CLIP, Rear Axle Brake Tube- SCREW & WA. ASSEMBLY, Brk. Tube Clip Attatch. AWD.
- Require Quantity: 2
- 19
- 21
- 22
- 234485721
TUBE ASSEMBLY, to Front Left Brake Hose
- 244485592
RETAINER, Sensor Wire Grommet- Require Quantity: 2
- 6502288
NUT, Front Brake Line to Modulator (w/ABS)- Require Quantity: 2
- 6502286
NUT, M10X1.0 w/ABS at Modulator to Rear Brakes
- 6502288
NUT, M12X1.0 w/ABS at Modulator to Front Brakes
- 6502286
NUT, Rear Brake Line to Modulator (w/ABS)- Require Quantity: 2
- $72.68 $57.121
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1992 Dodge Caravan parts. Parts like Lines & Hoses, Brake are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
