3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

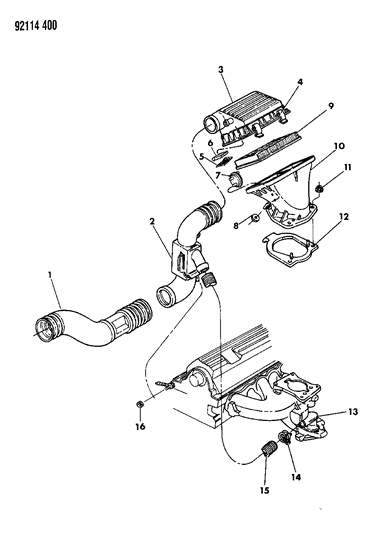

- 1.FUEL AIR CLEANER 2.5L ENGINE W/O TURBO S BODY

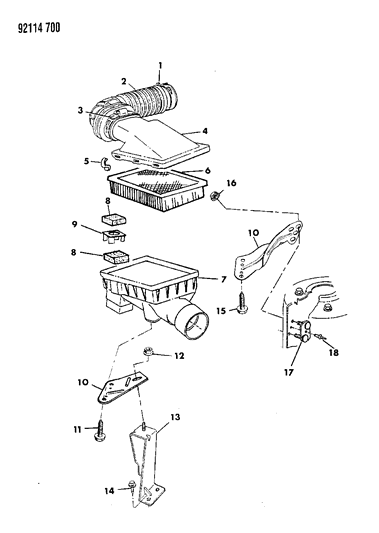

- 2.FUEL AIR CLEANER 3.0L ENGINE

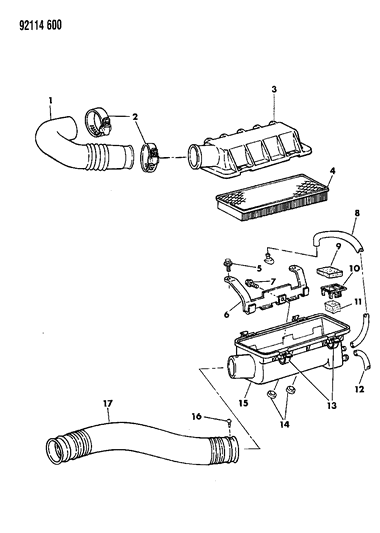

- 3.FUEL AIR CLEANER 3.3L AND 3.8L ENGINE
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
6502003
CLAMP, Hose to Throttle Body
1
5283801
DUCT, Air Cleaner Fresh Air
1
4300496
HOSE, Air Cleaner to Throttle Body
2
4324161HOSE, Air Cleaner to Throttle Body- HOSE, Air Cleaner to Throttle Body
- Fitting Vehicle Options: C,Y
2
4324162HOSE, Air Cleaner to Throttle Body- Fitting Vehicle Options: S
2
4300293
MODULE, Heated Air
3
6502004
CLAMP, Hose to Air Cleaner
3
4300300COVER, Air Cleaner 3
5277081COVER, Air Cleaner
4
4458053
COVER, Air Cleaner
4
6
4307307
BRACKET, Air Cleaner to Intake
7
4342765
SENSOR PACKAGE, Air Cleaner Temperature
8
4459675FILTER, Crankcase Inlet Air
8
6501214
NUT, Air Cleaner Temp. Sensor
9
4306914
FILTER, PCV System Lower
9
4459676
FRAME, Filter Support
10
4458054BRACKET, Air Cleaner to Frame Bracket- Fitting Vehicle Options: S
10
4458055BRACKET, Air Cleaner to Frame Bracket- BRACKET, Air Cleaner to Frame Bracket
- Fitting Vehicle Options: C,Y
11
12
4201284
GASKET, Air Cleaner to Throttle Body
13
4458060
BRACKET, Frame to Air Cleaner Bracket
13
5203338
HEATER, Throttle Body Air
15
4306121
CONNECTOR, Air Heater to Air Cleaner
17
4275038DUCT, Air Cleaner Fresh Air- DUCT, Air Cleaner Fresh Air
- Fitting Vehicle Options: A,J,G,P
17
4459673
PLATE, Air Cleaner Bracket
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1992
Dodge Caravan parts. Parts like Air Cleaner are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
