2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

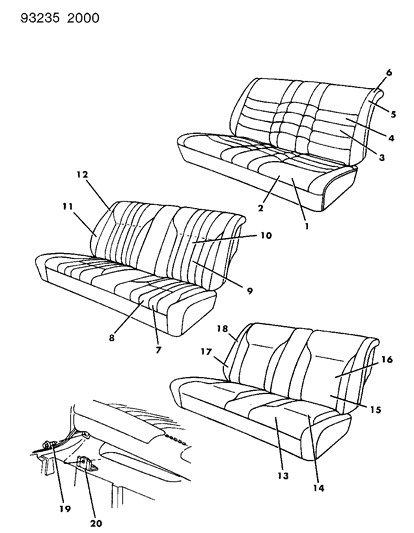

  • 1.A BODY SEAT--REAR A BODY TRIM CODES BF,B7,GF,G7,NF,N7,PF,P7
    1993 Chrysler LeBaron Sedan Rear Seat Diagram 1

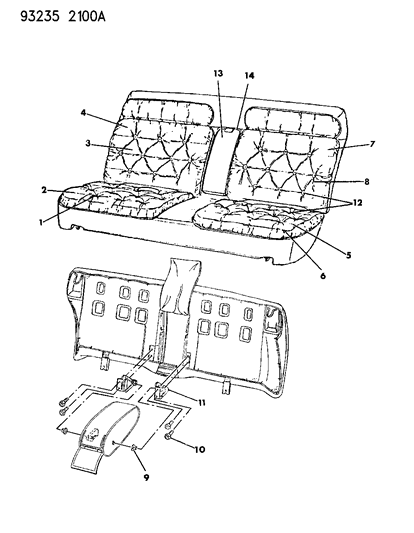

  • 2.A BODY SEAT--REAR A BODY TRIM CODES CF,CP,PL
    1993 Chrysler LeBaron Sedan Rear Seat Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    C411JFD
    CUSHION, w/Spring/Frame, Pad and Cover
    • Quartz, (CFD)
  • 1
    C411KFB
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (CFB)
  • 1
    C411KFV
    CUSHION, w/Spring/Frame, Pad and Cover
    • Champagne, (CFV)
  • 1
    C411LMA
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (CFM)
  • 1
    GP90MBB
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (NFB,BFB,N7B,B7B)
  • 1
    GP90MDD
    CUSHION, w/Spring/Frame, Pad and Cover
    • Quartz, (NFD,BFD,N7D,B7D)
  • 1
    GP90MMA
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (NFM,BFM,N7M,B7M)
  • 1
    GP90MVV
    CUSHION, w/Spring/Frame, Pad and Cover
    • Champagne, (NFV,BFV,N7V,B7V)
  • 2
    C155JFD
    COVER, Cushion
    • Quartz, (CFD)
  • 2
    C155KFB
    COVER, Cushion
    • Blue, (CFB)
  • 2
    C155KFV
    COVER, Cushion
    • Champagne, (CFV)
  • 2
    C155LMA
    COVER, Cushion
    • Red, (CFM)
  • 2
    GR02MBB
    COVER, Cushion
    • Blue, (NFB,BFB,N7B,B7B)
  • 2
    GR02MDD
    COVER, Cushion
    • Quartz, (NFD,BFD,N7D,B7D)
  • 2
    GR02MMA
    COVER, Cushion
    • Red, (NFM,BFM,N7M,B7M)
  • 2
    GR02MVV
    COVER, Cushion
    • Champagne, (NFV,BFV,N7V,B7V)
  • 3
    C412JFD
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (CFD)
  • 3
    C412KFB
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (CFB)
  • 3
    C412KFV
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (CFV)
  • 3
    C412LMA
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (CFM)
  • 3
    C871H7D
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (BFD,B7D)
  • 3
    C871K7B
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (BFB,B7B)
  • 3
    C871K7V
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (BFV,B7V)
  • 3
    C871LMA
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (BFM,B7M)
  • 3
    C872H7D
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (NFD,N7D), Right (FOLDING)
  • 3
    C872K7B
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (NFB,N7B), Right (FOLDING)
  • 3
    C872K7V
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (NFV,N7V), Right (FOLDING)
  • 3
    C872LMA
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (NFM,N7M), Right (FOLDING)
  • 3
    C873H7D
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (NFD,N7D), Left (FOLDING)
  • 3
    C873K7B
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (NFB,N7B), Left (FOLDING)
  • 3
    C873K7V
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (NFV,N7V), Left (FOLDING)
  • 3
    C873LMA
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (NFM,N7M), Left (FOLDING)
  • 4
    B412H7D
    COVER, Back
    • Quartz, (N7D,NFD), Right (FOLDING)
  • 4
    B412K7B
    COVER, Back
    • Blue, (N7B,NFB), Right (FOLDING)
  • 4
    B412K7V
    COVER, Back
    • Champagne, (N7V,NFV), Right (FOLDING)
  • 4
    B412L7M
    COVER, Back
    • Red, (N7M,NFM), Right (FOLDING)
  • 4
    B413H7D
    COVER, Back
    • Quartz, (N7D,NFD), Left (FOLDING)
  • 4
    B413K7B
    COVER, Back
    • Blue, (N7B,NFB), Left (FOLDING)
  • 4
    B413K7V
    COVER, Back
    • Champagne, (N7V,NFV), Left (FOLDING)
  • 4
    B413L7M
    COVER, Back
    • Red, (N7M,NFM), Left (FOLDING)
  • 4
    B417H7D
    COVER, Back
    • Quartz, (B7D,BFD)
  • 4
    B417K7B
    COVER, Back
    • Blue, (B7B,BFB)
  • 4
    B417K7V
    COVER, Back
    • Champagne, (B7V,BFV)
  • 4
    B417LMA
    COVER, Back
    • Red, (B7M,BFM)
  • 4
    C154JFD
    COVER, Back
    • Quartz, (CFD)
  • 4
    C154KFB
    COVER, Back
    • Blue, (CFB)
  • 4
    C154KFV
    COVER, Back
    • Champagne, (CFV)
  • 4
    C154LMA
    COVER, Back
    • Red, (CFM)
  • 5
    C576H7D
    BOLSTER, Back
    • Quartz, (NFD,N7D), Right
  • 5
    C576K7B
    BOLSTER, Back
    • Blue, (NFB,N7B), Right
  • 5
    C576K7V
    BOLSTER, Back
    • Champagne, (NFV,N7V), Right
  • 5
    C576LMA
    BOLSTER, Back
    • Red, (NFM,N7M), Right
  • 5
    C577H7D
    BOLSTER, Back
    • Quartz, (NFD,N7D), Left
  • 5
    C577K7B
    BOLSTER, Back
    • Blue, (NFB,N7B), Left
  • 5
    C577K7V
    BOLSTER, Back
    • Champagne, (NFV,N7V), Left
  • 5
    C577LMA
    BOLSTER, Back
    • Red, (NFM,N7M), Left
  • 5
    C415JPD
    CUSHION, w/Spring/Frame, Pad and Cover
    • Quartz, (CPD)
  • 5
    C415KPB
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (CPB)
  • 5
    C415KPV
    CUSHION, w/Spring/Frame, Pad and Cover
    • Champagne, (CPV)
  • 5
    C415LMA
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (CPM)
  • 5
    FY01MD5
    CUSHION, w/Spring/Frame, Pad and Cover
    • Quartz, (PLD) EUROPEAN
  • 5
    FY01MVV
    CUSHION, w/Spring/Frame, Pad and Cover
    • Champagne, (PLV) EUROPEAN
  • 6
    C954H7D
    COVER, Bolster
    • Quartz, (N7D,NFD), Right
  • 6
    C954K7B
    COVER, Bolster
    • Blue, (N7B,NFB), Right
  • 6
    C954K7V
    COVER, Bolster
    • Champagne, (N7V,NFV), Right
  • 6
    C954LMA
    COVER, Bolster
    • Red, (N7M,NFM), Right
  • 6
    C955H7D
    COVER, Bolster
    • Quartz, (N7D,NFD), Left
  • 6
    C955K7B
    COVER, Bolster
    • Blue, (N7B,NFB), Left
  • 6
    C955K7V
    COVER, Bolster
    • Champagne, (N7V,NFV), Left
  • 6
    C955LMA
    COVER, Bolster
    • Red, (N7M,NFM), Left
  • 6
    C153JPD
    COVER, Cushion
    • Quartz, (CPD)
  • 6
    C153KPV
    COVER, Cushion
    • Champagne, (CPV)
  • 6
    C153LB7
    COVER, Cushion
    • Blue, (CPB)
  • 6
    C153LMA
    COVER, Cushion
    • Red, (CPM)
  • 6
    FY13MD5
    COVER, Cushion
    • Quartz, (PLD) EUROPEAN
  • 6
    FY13MVV
    COVER, Cushion
    • Champagne, (PLV) EUROPEAN
  • 7
    C420JPD
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (CPD)
  • 7
    C420KPB
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (CPB)
  • 7
    C420KPV
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (CPV)
  • 7
    C420LMA
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (CPM)
  • 7
    FY14MD5
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (PLD) EUROPEAN, Right
  • 7
    FY14MVV
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (PLV) EUROPEAN, Right
  • 7
    FY15MD5
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (PLD) EUROPEAN, Left
  • 7
    FY15MVV
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (PLV) EUROPEAN, Left
  • 7
    FL00MB7
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, (GFB,G7B)
  • 7
    FL00MD5
    CUSHION, w/Spring, Frame, Pad and Cover
    • Quartz, (GFD,G7D)
  • 7
    FL00MM6
    CUSHION, w/Spring, Frame, Pad and Cover
    • Red, (GFM,G7M)
  • 7
    FL00MVV
    CUSHION, w/Spring, Frame, Pad and Cover
    • Champagne, (GFV,G7V)
  • 8
    C152JPD
    COVER, Back
    • Quartz, (CPD)
  • 8
    C152KPB
    COVER, Back
    • Blue, (CPB)
  • 8
    C152KPV
    COVER, Back
    • Champagne, (CPV)
  • 8
    C152LMA
    COVER, Back
    • Red, (CPM)
  • 8
    FY18MD5
    COVER, Back
    • Quartz, (PLD) EUROPEAN, Right
  • 8
    FY18MVV
    COVER, Back
    • Champagne, (PLV) EUROPEAN, Right
  • 8
    FY19MD5
    COVER, Back
    • Quartz, (PLD) EUROPEAN, Left
  • 8
    FY19MVV
    COVER, Back
    • Champagne, (PLV) EUROPEAN, Left
  • 8
    FV93MB7
    COVER, Cushion
    • Blue, (GFB,G7B)
  • 8
    FV93MD5
    COVER, Cushion
    • Quartz, (GFD,G7D)
  • 8
    FV93MM6
    COVER, Cushion
    • Red, (GFM,G7M)
  • 8
    FV93MVV
    COVER, Cushion
    • Champagne, (GFV,G7V)
  • 9
    FK92MB7
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (GFB,G7B), Right
  • 9
    FK92MD5
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (GFD,G7D), Right
  • 9
    FK92MM6
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (GFM,G7M), Right
  • 9
    FK92MVV
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (GFV,G7V), Right
  • 9
    FK93MB7
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (GFB,G7B), Left
  • 9
    FK93MD5
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (GFD,G7D), Left
  • 9
    FK93MM6
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (GFM,G7M), Left
  • 9
    FK93MVV
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (GFV,G7V), Left
  • 10
    FV88MB7
    COVER, Back
    • Blue, (G7B,GFB), Right
  • 10
    FV88MD5
    COVER, Back
    • Quartz, (G7D,GFD), Right
  • 10
    FV88MM6
    COVER, Back
    • Red, (G7M,GFM), Right
  • 10
    FV88MVV
    COVER, Back
    • Champagne, (G7V,GFV), Right
  • 10
    FV89MB7
    COVER, Back
    • Blue, (G7B,GFB), Left
  • 10
    FV89MD5
    COVER, Back
    • Quartz, (G7D,GFD), Left
  • 10
    FV89MM6
    COVER, Back
    • Red, (G7M,GFM), Left
  • 10
    FV89MVV
    COVER, Back
    • Champagne, (G7V,GFV), Left
  • 11
    FK96MB7
    BOLSTER, Back
    • Blue, (G7B,GFB), Right
  • 11
    FK96MD5
    BOLSTER, Back
    • Quartz, (G7D,GFD), Right
  • 11
    FK96MM6
    BOLSTER, Back
    • Red, (G7M,GFM), Right
  • 11
    FK96MVV
    BOLSTER, Back
    • Champagne, (G7V,GFV), Right
  • 11
    FK97MB7
    BOLSTER, Back
    • Blue, (G7B,GFB), Left
  • 11
    FK97MD5
    BOLSTER, Back
    • Quartz, (G7D,GFD), Left
  • 11
    FK97MM6
    BOLSTER, Back
    • Red, (G7M,GFM), Left
  • 11
    FK97MVV
    BOLSTER, Back
    • Champagne, (G7V,GFV), Left
  • 12
    DF20JV4
    BUTTON, Cushion and Back
    • Champagne, (CPV)
  • 12
    DF20JW8
    BUTTON, Cushion and Back
    • Quartz, (CPW)
  • 12
    DF20KB7
    BUTTON, Cushion and Back
    • Blue, (CPB)
  • 12
    DF20LM6
    BUTTON, Cushion and Back
    • Red, (CPM)
  • 12
    FV96MB7
    COVER, Bolster
    • Blue, (G7B,GFB), Right
  • 12
    FV96MD5
    COVER, Bolster
    • Quartz, (G7D,GFD), Right
  • 12
    FV96MM6
    COVER, Bolster
    • Red, (G7M,GFM), Right
  • 12
    FV96MVV
    COVER, Bolster
    • Champagne, (G7V,GFV), Right
  • 12
    FV97MB7
    COVER, Bolster
    • Blue, (G7B,GFB), Left
  • 12
    FV97MD5
    COVER, Bolster
    • Quartz, (G7D,GFD), Left
  • 12
    FV97MM6
    COVER, Bolster
    • Red, (G7M,GFM), Left
  • 12
    FV97MVV
    COVER, Bolster
    • Champagne, (G7V,GFV), Left
  • 13
    C413JD5
    ARMREST and COVER
    • Quartz, (CFD)
  • 13
    C413KB7
    ARMREST and COVER
    • Blue, (CFB)
  • 13
    C413KVV
    ARMREST and COVER
    • Champagne, (CFV)
  • 13
    C413LMA
    ARMREST and COVER
    • Red, (CFM)
  • 13
    C421JDW
    ARMREST and COVER
    • Quartz, (CPDW)
  • 13
    C421KB7
    ARMREST and COVER
    • Blue, (CPB)
  • 13
    C421KVV
    ARMREST and COVER
    • Champagne, (CPV)
  • 13
    C421LMA
    ARMREST and COVER
    • Red, (CPM)
  • 13
    FL02MB7
    Cushion, w/Spring/Frame, Pad and Cover
    • Blue, (PFB,P7B)
  • 13
    FL02MD5
    Cushion, w/Spring/Frame, Pad and Cover
    • Quartz, (PFD,P7D)
  • 13
    FL02MM6
    Cushion, w/Spring/Frame, Pad and Cover
    • Red, (PFM,P7M)
  • 13
    FL02MVV
    Cushion, w/Spring/Frame, Pad and Cover
    • Champagne, (PFV,P7V)
  • 14
    C156JDW
    COVER, Armrest
    • Quartz, (CPDW)
  • 14
    C156KB7
    COVER, Armrest
    • Blue, (CPB)
  • 14
    C156KVV
    COVER, Armrest
    • Champagne, (CPV)
  • 14
    C156LMA
    COVER, Armrest
    • Red, (CPM)
  • 14
    C157JD5
    COVER, Armrest
    • Quartz, (CFD)
  • 14
    C157LB7
    COVER, Armrest
    • Blue, (CFB)
  • 14
    C157LMA
    COVER, Armrest
    • Red, (CFM)
  • 14
    C157LV4
    COVER, Armrest
    • Champagne, (CFV)
  • 14
    FV91MB7
    COVER, Cushion
    • Blue, (PFB,P7B)
  • 14
    FV91MD5
    COVER, Cushion
    • Quartz, (PFD,P7D)
  • 14
    FV91MM6
    COVER, Cushion
    • Red, (PFM,P7M)
  • 14
    FV91MVV
    COVER, Cushion
    • Champagne, (PFV,P7V)
  • 15
    FK94MB7
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (PFB,P7B), Right (FOLDING)
  • 15
    FK94MD5
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (PFD,P7D), Right (FOLDING)
  • 15
    FK94MM6
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (PFM,P7M), Right (FOLDING)
  • 15
    FK94MVV
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (PFV,P7V), Right (FOLDING)
  • 15
    FK95MB7
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (PFB,P7B), Left (FOLDING)
  • 15
    FK95MD5
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (PFD,P7D), Left (FOLDING)
  • 15
    FK95MM6
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (PFM,P7M), Left (FOLDING)
  • 15
    FK95MVV
    BACK, w/Spring/Frame, Pad and Cover
    • Champagne, (PFV,P7V), Left (FOLDING)
  • 16
    FV86MB7
    COVER, Back
    • Blue, (PFB,P7B), Right
  • 16
    FV86MD5
    COVER, Back
    • Quartz, (PFD,P7D), Right
  • 16
    FV86MM6
    COVER, Back
    • Red, (PFM,P7M), Right
  • 16
    FV86MVV
    COVER, Back
    • Champagne, (PFV,P7V), Right
  • 16
    FV87MB7
    COVER, Back
    • Blue, (PFB,P7B), Left
  • 16
    FV87MD5
    COVER, Back
    • Quartz, (PFD,P7D), Left
  • 16
    FV87MM6
    COVER, Back
    • Red, (PFM,P7M), Left
  • 16
    FV87MVV
    COVER, Back
    • Champagne, (PFV,P7V), Left
  • 17
    FK98MB7
    BOLSTER
    • Blue, (PFB,P7B), Right
  • 17
    FK98MD5
    BOLSTER
    • Quartz, (PFD,P7D), Right
  • 17
    FK98MM6
    BOLSTER
    • Red, (PFM,P7M), Right
  • 17
    FK98MVV
    BOLSTER
    • Champagne, (PFV,P7V), Right
  • 17
    FK99MB7
    BOLSTER
    • Blue, (PFB,P7B), Left
  • 17
    FK99MD5
    BOLSTER
    • Quartz, (PFD,P7D), Left
  • 17
    FK99MM6
    BOLSTER
    • Red, (PFM,P7M), Left
  • 17
    FK99MVV
    BOLSTER
    • Champagne, (PFV,P7V), Left
  • 18
    FV94MB7
    COVER, Bolster
    • Blue, (PFB,P7B), Right
  • 18
    FV94MD5
    COVER, Bolster
    • Quartz, (PFD,P7D), Right
  • 18
    FV94MM6
    COVER, Bolster
    • Red, (PFM,P7M), Right
  • 18
    FV94MVV
    COVER, Bolster
    • Champagne, (PFV,P7V), Right
  • 18
    FV95MB7
    COVER, Bolster
    • Blue, (PFB,P7B), Left
  • 18
    FV95MD5
    COVER, Bolster
    • Quartz, (PFD,P7D), Left
  • 18
    FV95MM6
    COVER, Bolster
    • Red, (PFM,P7M), Left
  • 18
    FV95MVV
    COVER, Bolster
    • Champagne, (PFV,P7V), Left
  • FY16MD5
    BOLSTER
    • Quartz, (PLD) EUROPEAN, Right
  • FY16MVV
    BOLSTER
    • Champagne, (PLV) EUROPEAN, Right
  • FY17MD5
    BOLSTER
    • Quartz, (PLD) EUROPEAN, Left
  • FY17MVV
    BOLSTER
    • Champagne, (PLV) EUROPEAN, Left
  • FY22MD5
    COVER, Bolster
    • Quartz, (PLD) EUROPEAN), Right
  • FY22MVV
    COVER, Bolster
    • Champagne, (PLV) EUROPEAN, Right
  • FY23MD5
    COVER, Bolster
    • Quartz, (PLD) EUROPEAN), Left
  • FY23MVV
    COVER, Bolster
    • Champagne, (PLV) EUROPEAN, Left
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1993 Chrysler LeBaron Sedan parts. Parts like Rear Seat are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission.
