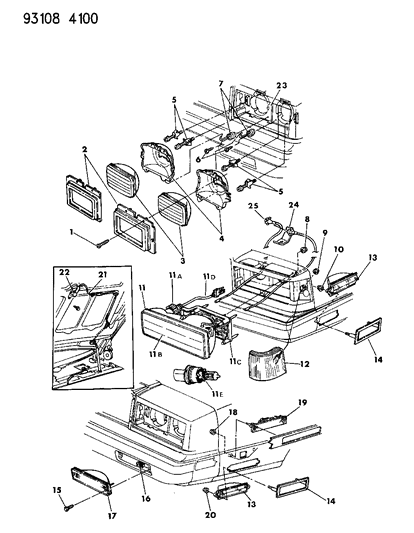

Diagram (1 of 1): ELECTRICAL LAMPS--FRONT NEW YORKER- DYNASTY C-BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
4334904BEZEL, H/Lamp, Right 2
4334905BEZEL, H/Lamp, Right
3
4388238BULB, Lo- AERO
- Fitting Vehicle Options: C, D
3
4451024BULB, Lo- High
- Fitting Vehicle Options: C, S
3
4451025BULB, Lo- BULB, Lo
- Fitting Vehicle Options: C
4
3868926SEAT, Hi-Lo, Right 4
3868927SEAT, Hi-Lo, Right 4
3868928SEAT, Hi-Lo, Right 4
3868929SEAT, Hi-Lo, Right
11B
11B
4388835HOUSING, H/Lamp w/Clips, Right- HOUSING, H/Lamp w/Clips, Left
11D
4388728
SOCKET & CABLE, w/Retainer (Park & Turn Signal)
12
4399814LAMP ASSEMBLY, Frt. S/Marker & Reflex, Right- LAMP ASSEMBLY, Frt. S/Marker & Reflex, Right
12
13
5262232LAMP ASSEMBLY, Fender Cornering, Right- LAMP ASSEMBLY, Fender Cornering, Right
13
14
14
4399057BEZEL, Cornering Lamp, w/o ES & GTS Pkg., Right- BEZEL, Cornering Lamp, w/o ES & GTS Pkg., Left
23
4388994HOUSING, H/Lamp, Right 23
4388995HOUSING, H/Lamp, Right
24
4451237
BRACKET, H/Lamp Cable Adj.
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1993
Chrysler New Yorker Salon parts. Parts like Lamps - Front are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.3L. Transmission: 4-Speed Automatic Transmission.
