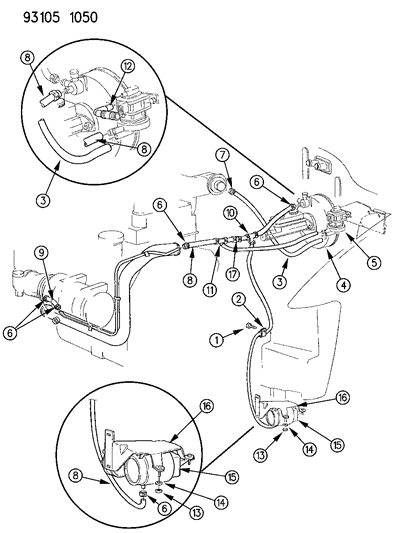

Diagram (1 of 1): BRAKES, SERVICE VACUMM SYSTEM 2.5L DIESEL ENGINE S BODY

1993 Dodge Caravan Vacuum System Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price

Part No. &
Part Description

2
4470400
BRACKET, Pressure and Retrurn Vacuum Hose to Battery Tray

3
4026511
HOSE, Vacuum to EGR (50 Ft. Roll)

4
4509281
BOOSTER, Brake

5
4686063
MODULATOR, EGR

6
2448761
CLAMP
- Replaced By:
  33000784
MSRP: $4.95
$3.28
1
Add To Cart

7
4641085
CLAMP, Vacuum Hose to EGR Valve

8
3879277
HOSE, Vacuum to Booster (25 Ft. Roll)
HOSE, Brake Vacuum (25 Ft. Roll)
Replaced By:
HWV01132AA
MSRP: $40.00
$27.06
1
Add To Cart
8
4443176
HOSE, Vacuum to Booster (25 Ft. Roll)
HOSE, Vacuum Pump (25 Ft. Roll) (CLAMP, Brake Booster Vacuum Hose (Not Serviced))
HOSE, Vacuum to Booster (25 Ft. Roll)
- Replaced By:
  HFV00516
8
4495664
HOSE, Vacuum to Booster (25 Ft. Roll)
SLEEVE, Braided Hose Vac Pump Hose to Tee (279.4 +6.35)
8
4546593
HOSE, Vacuum to Booster (25 Ft. Roll)
(533.4 + 12.7)
8
4683463
HOSE, Vacuum to Booster (25 Ft. Roll)
CONNECTOR, Vacuum Pump Inlet (CLAMP, Brake Booster Vacuum Hose (Not Serviced))

9
4428265
HOSE, Vacuum Pump to Tube

10
4275638
TEE, Brake Vacuum

11
4683477
CONNECTOR, Brake Vacuum to EGR

12
4612419
FILTER, Modulator

13
6100015
NUT, Lock
- Require Quantity:
  3

14
4633465
WASHER, Vacuum Pump

15
4683444
PUMP, Vacuum

16
4683464
BRACKET, Vacuum Pump Mount

17
4536027
VALVE, Check
