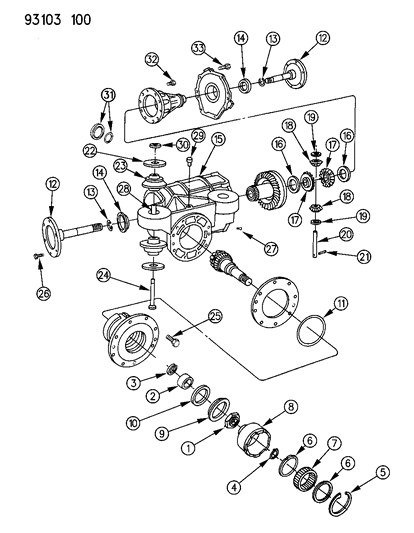

Diagram (1 of 1): REAR AXLE DIFFERENTIAL, REAR AWD S BODY

1993 Dodge Caravan Differential - Rear Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price

Part No. &
Part Description

1
4518766
NUT, Hex Flange Lock

2
4518143
SPACER

3
4641430
SHIM
5.12/5.15mm
3
4641431
SHIM
5.16/5.19mm
3
4641432
SHIM
5.20/5.23mm
3
4641433
SHIM
5.24/5.27mm
3
4641434
SHIM
5.28/5.31mm
3
4641435
SHIM
5.32/5.35mm
3
4641436
SHIM
5.36/5.39mm
3
4641437
SHIM
5.40/5.43mm
3
4641438
SHIM
5.44/5.47mm
3
4641439
SHIM
5.48/5.51mm
3
4641440
SHIM
5.52/5.55mm
3
4641441
SHIM
5.56/5.59mm
3
4641442
SHIM
5.60/5.63mm
3
4641443
SHIM
5.64/5.67mm
3
4641444
SHIM
5.68/5.71mm

4
4486755
SNAP RING

5
4518952
SNAP RING

6
4518536
SPACER, Over Running
- Require Quantity:
  2

7
4518953
CLUTCH, Over Running

8
4518510
RACE, Over Running Clutch

9
4518148
SEAL (Serviced in 4637109 Seal Package)

10
4518190
SEAL (Serviced in 4637109 Seal Package)

11
4486077
O-RING
MSRP: $13.59
$10.68
1
Add To Cart

12
4518920
CARRIER, Output
- Require Quantity:
  2

13
4518780
RING, Joint Retaining
- Require Quantity:
  2

14
4641263
SEAL RING
- Require Quantity:
  2

16
4412016
WASHER, Package, Thrust

17
4531093
GEAR, Side
- Require Quantity:
  2

18
4348679
GEAR, Pinion
- Require Quantity:
  2
- Package Quantity:
  1

19
4137024
WASHER, Pinion Gear
- Require Quantity:
  2
- Package Quantity:
  1

20
4348687
SHAFT, Pinion

21
6101284
PIN

22
4486903
WASHER
- Require Quantity:
  4
- Package Quantity:
  1

23
4486901
SLEEVE
BUSHING, Carrier Rubber Isolator
Require Quantity:
4
Package Quantity:
1
23
4486902
SLEEVE
SLEEVE
- Require Quantity:
  4
- Package Quantity:
  1

24
4518329
BOLT

26
6502350
BOLT, Axle Shaft to Output Shaft
- Require Quantity:
  12
- Package Quantity:
  1

27
4486046
MAGNET, Rear Drive Module End Cover

28
4486902
SLEEVE, Carrier Rubber Isolator
- Require Quantity:
  4
- Package Quantity:
  1

29
2124715
VENT

30
4518308
WASHER, Isolator
- Require Quantity:
  2
- Package Quantity:
  1

31
4637108
PLUG PACKAGE

33
6101321
BOLT, Flange Head, End Cover to Case
- Require Quantity:
  8

4518960
CARRIER, Rear Differential Assembly Complete

3683823
CLAMP, Vent Cap Assembly

4641290
RESERVOIR ASSEMBLY, Remote Vent

4213328
VENT CAP ASSEMBLY, Hose

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1993 Dodge Caravan parts. Parts like Differential - Rear are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission, 7-Speed Automatic Transmission.
