Diagram (1 of 1): ENG. 6 CYL.(3.9L) AND (5.9L) DSL. TIMING GEAR AND CASE 5.9L DIESEL INTERCOOLED

1993 Dodge D150 Timing Gear & Case Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4429131
GASKET, Gear Housing
- Replaced By: 5003941AB
$126.00 $54.28
1
Add To Cart

2
4740284
HOUSING, Gear

3
4429633
SCREW, Hex. Head Cap Front Cover
- Require Quantity: 10
- Package Quantity: 1
$8.45 $5.68
1
Add To Cart

4

4429629
SCREW, Hex. Head Cap Front Cover
$8.05 $5.39
1
Add To Cart

5
4638679
SEAL, Retainer Ring

6
4638677
HOUSING, Timing

7
4429994
O-RING, Front Cover

8
4429924
PIN, Front Cover Timing
$33.90 $22.87
1
Add To Cart

9
4429849
RING, Retaining Front Cover

10
4429998
SCREW, Round Head Cap
- Require Quantity: 2
- Package Quantity: 1

11
83507211
GASKET, Gear Cover

12
4638667
COVER, Gear

13
4429353
SEAL, Oil
- Replaced By: 68027026AA
$77.40 $58.58
1
Add To Cart

15
4429431
GEAR, Camshaft

16
4429446
SCREW, Hex. Head Cap Housing Cover

17
4429622
RETAINER, Belt

18

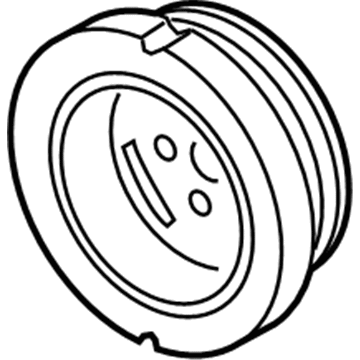

83507217
DAMPER, Vibration Rubber

19
4429857
SCREW, Damper Cap
- Require Quantity: 4
- Package Quantity: 1
$20.80 $14.02
1
Add To Cart

20
4713852
GEAR, Crankshaft

21
83506411
GEAR, Oil Pump (Serviced in Oil Pump)
GEAR, Oil Pump (Serviced in Oil Pump)
21
R5010965AA
GEAR, Oil Pump (Serviced in Oil Pump)
- PUMP, Engine Oil
- Replaced By: 5010965AC

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1993 Dodge D150 parts. Parts like Timing Gear & Case are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.9L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission, 8-Speed Automatic Transmission.
