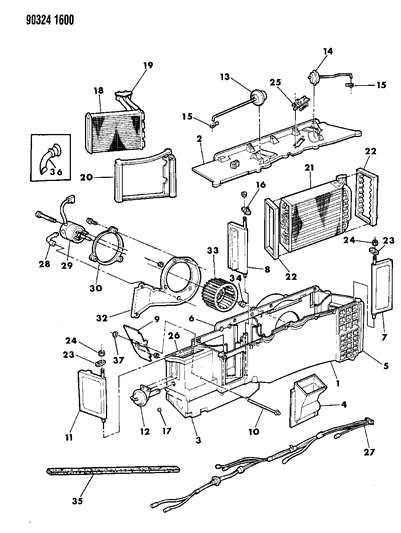

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONER AND HEATER UNIT D MODELS

1993 Dodge D150 Air Conditioner & Heater Unit Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4163707
HOUSING, w/STUD

2
4361285
COVER, w/SEAL Complete

3
4163752
HOUSING, A/C Heat Distr.

4
4163753
HOUSING, w/SEAL, A/C Unit Distr.

5
4361192
SEAL, Unit to Side Cowl

6
4163703
SEAL, Unit to Dash

7
4163715
DOOR, Recirc.

8
4163727
DOOR, w/SEAL, Air Blend

9
4163733
DOOR, A/C Bi-Level Heater Defroster

10
4163735
SHAFT, Defroster Door

11
4163721
DOOR, w/SEAL, A/C Mode Door

12
4163731
ACTUATOR, Defroster Door

13
4163719
ACTUATOR, Air Blend Door

14
4163713
ACTUATOR, Recirc. Door

15
6008144
CLIP, Actuators
- Require Quantity: 2
- Package Quantity: 1

16
4163725
LEVER, w/PIN, Blend Air Door

17

6031147
NUT, Acturator
$1.55 $1.02
1
Add To Cart

18
4361181
CORE, Heater

19
4163736
SEAL, Unit to Dash

20
4163671
SEAL, Heater Core to Housing

21
4494321
COIL, Evaporator Complete

22
3847116
SEAL, Coil to Housing
- Require Quantity: 2

23
4163714
LEVER, Recirc, Door

24
0219462
NUT

25

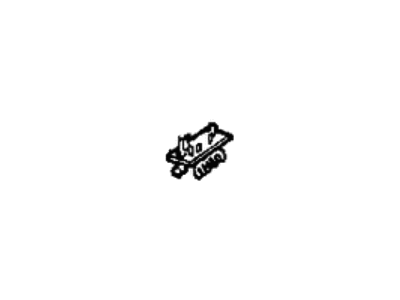

56003527
RESISTOR, Heater
A/C
$26.67 $20.96
1
Add To Cart
25
56003528
RESISTOR, Heater
- RESISTOR, Heater
$25.01 $19.35
1
Add To Cart

26
4163657
SEAL, Unit Defoster Duct

27
4361268
HOSE and CONNECTOR, A/C. Vacuum

28
3503040
TUBE, A/C Unit Motor Cooling

29
4638064
MOTOR, w/SEAL, Heater

32
4163704
PLATE, Back Housing Mounting

33
3503037
WHEEL, Blower

34

2837680
CLAMP, Motor Shaft
$2.35 $1.31
1
Add To Cart

35
3848151
SEAL, A/C Evap. Coil Hsg. Hair Pin End

36
56004538
TUBE, A/C Drain

37
6026173
RETAINER, Defroster Door Shaft

4428601
INSULATOR, Dash Pnl. (Htr. Blwr. Mtr.) Diesel
INSULATOR, Dash Pnl. (Htr. Blwr. Mtr.) Diesel
4677204
INSULATOR, Dash Pnl. (Htr. Blwr. Mtr.) Diesel
- RESERVOIR, Vacuum, with Valve

3846756
SEAL, A/C Evap. Coil Bottom

4163739
SEAL, A/C Evap. Coil Bracket Housing

3848151
SEAL, A/C Evap. Hsg. Hair Pin End

4163758
SEAL, Blower Motor

3441609
VALVE, Check

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1993 Dodge D150 parts. Parts like Air Conditioner & Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.9L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission, 8-Speed Automatic Transmission.
