3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

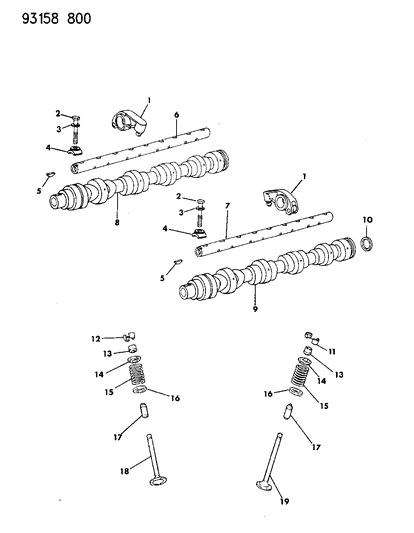

- 1.ENGINE, 4 CYLINDER CAMSHAFT & VALVES 2.5 L ENGINE
- 2.ENGINE, 4 CYLINDER CAMSHAFTS AND VALVES 2.2 L ENGINE TURBO 16 VALVE
- 3.ENGINE, 6 CYLINDER CAMSHAFT & VALVES 3.0 L ENGINE
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
4484380ARM, Rocker Assembly
1
1
4298143VALVE, Exhaust - Standard- 0.15mm O/S
- Require Quantity: 4
1
4298144VALVE, Exhaust - Standard- 0.40mm O/S
- Require Quantity: 4
1
2
4484418BOLT, Rocker Shaft Retaining
2
4298138VALVE, Intake - Standard EDM Engine- 0.15mm O/S
- Require Quantity: 4
2
4298139VALVE, Intake - Standard EDM Engine- 0.40mm O/S
- Require Quantity: 4
2
4298140VALVE, Intake - Standard EDM Engine- 0.80mm O/S
- Require Quantity: 4
2
2
4323245VALVE, Intake - Standard EDM Engine- 0.15MM O/S
- Require Quantity: 4
2
4323246VALVE, Intake - Standard EDM Engine- 0.40MM O/S
- Require Quantity: 4
2
4323247VALVE, Intake - Standard EDM Engine- 0.80MM O/S
- Require Quantity: 4
MD145656
CAMSHAFT ASSEMBLY,(A)-Lt.
4
4424007RETAINER, Rocker Shaft- Intake and Exhaust Shafts
- Require Quantity: 16
4
4424008RETAINER, Rocker Shaft 4
4484423RETAINER, Rocker Shaft
4
5203792SEAT, Exhaust Valve
5
4483714GUIDE, Intake Valve
5
4442045KEY, Camshaft Sprocket
MD125669SPRING, Rocker Shaft Rt.
6
6
5203472SEAT, Intake Valve
6
4484419
SHAFT ASSEMBLY, Exhaust Valve Rocker
7
4484373
SHAFT ASSEMBLY, Intake Valve Rocker
8
4442941
CAMSHAFT ASSEMBLY, Exhaust
9
4442940
CAMSHAFT ASSEMBLY, Intake
9
4105295
NIPPLE, Thermostat Water By-Pass (Also in Group 7)
10
4387850
CAMSHAFT, Standard Journals
10
MD061895LOCK, Valve Spring Retainer
10
4424061
SPACER, Intake Rocker Shaft
11
4424035LOCK, Intake Valve Spring Retainer
MD066498RETAINER, Valve Spring
12
4424034LOCK, Exhaust Valve Spring Retainer
12
13
4638413
SEAL PACKAGE, Valve Stem
MD073398SPRING, Valve Intake and Exhaust
14
4424033RETAINER, Valve Spring
14
4397767ROCKER, Valve (Roller)
MD096944SEAT, Valve Spring
15
15 15
16
5203578RETAINER, Valve Spring
16
4484407SEAT, Valve Spring
16
18
19 19
4105366SEAL, Valve Guide - Standard EDM Engine- 0.15mm O/S (Green)
- Require Quantity: 8
19
4105367SEAL, Valve Guide - Standard EDM Engine- 0.40mm O/S (Yellow)
- Require Quantity: 8
19
4105368SEAL, Valve Guide - Standard EDM Engine- 0.80mm O/S (Red)
- Require Quantity: 8
19
4667243SEAL, Valve Guide - Standard EDM Engine- Standard, Flex Fuel Engine
- Require Quantity: 8
19
4667376SEAL, Valve Guide - Standard EDM Engine- 0.15mm O/S
- Require Quantity: 8
19
4667377SEAL, Valve Guide - Standard EDM Engine- 0.40mm O/S
- Require Quantity: 8
19
4667378SEAL, Valve Guide - Standard EDM Engine- 0.80mm O/S
- Require Quantity: 8
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1993
Dodge Daytona parts. Parts like Camshaft & Valves are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
