2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

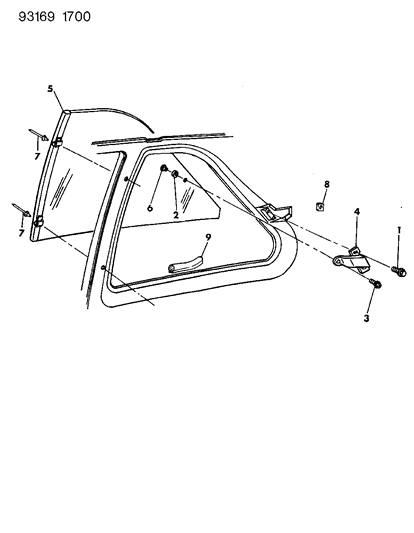

- 1.BODY - SHEET METAL EXCEPT DOORS GLASS QUARTER WINDOW P BODY 24

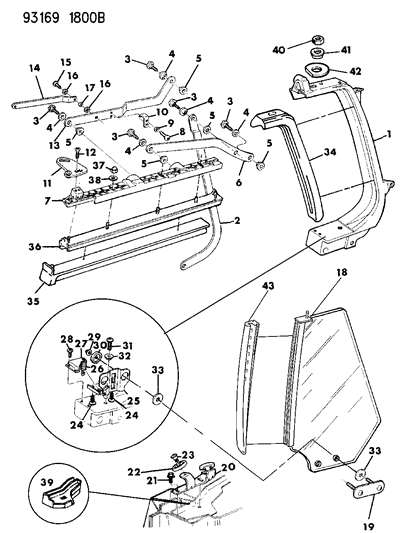

- 2.BODY - SHEET METAL EXCEPT DOORS GLASS QUARTER WINDOW P BODY 27
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
5
4512676FRAME and GLASS ASSEMBLY, Right- FRAME and GLASS ASSEMBLY, Right
5
4512677FRAME and GLASS ASSEMBLY, Right- FRAME and GLASS ASSEMBLY, Left
8
4341494T-PLATE, Quarter Window, Right- T-PLATE, Quarter Window, Right
8
4341495T-PLATE, Quarter Window, Right- T-PLATE, Quarter Window, Left
9
0138530
WASHER (Serviced in Downstop Pkg. 5241851)
9
4512190WEATHERSTRIP, Right 9
4512191WEATHERSTRIP, Right
11
5241182BRACKET ASSEMBLY, Side Rail Pivot , Right- BRACKET ASSEMBLY, Side Rail Pivot , Right
11
5241183BRACKET ASSEMBLY, Side Rail Pivot , Right- BRACKET ASSEMBLY, Side Rail Pivot , Left
18
5241490GLASS ASSEMBLY w/Channel , Right- GLASS ASSEMBLY w/Channel , Right
18
5241491GLASS ASSEMBLY w/Channel , Right- GLASS ASSEMBLY w/Channel , Left
20
5241866ROLLER BRACKET , Right 20
5241867ROLLER BRACKET , Right
21
4710063
SCREW and WASHER ASSEMBLY (M6 x 1.0 x 17.0)
34
4741170WEATHERSTRIP ASSEMBLY, Rear Rail , Right- WEATHERSTRIP ASSEMBLY, Rear Rail , Right
34
4741171WEATHERSTRIP ASSEMBLY, Rear Rail , Right- WEATHERSTRIP ASSEMBLY, Rear Rail , Left
35
5242263WEATHERSTRIP ASSEMBLY, Front Rail , Right- WEATHERSTRIP ASSEMBLY, Front Rail , Left
36
5241444RETAINER ASSEMBLY, Right 36
5241445RETAINER ASSEMBLY, Right
39
5242056TROUGH ASSEMBLY, Lock Pillar Drain , Right- TROUGH ASSEMBLY, Lock Pillar Drain , Right
39
5242057TROUGH ASSEMBLY, Lock Pillar Drain , Right- TROUGH ASSEMBLY, Lock Pillar Drain , Left
42
5241482
PLATE, Quarter Window Adjust
43
5241496WEATHERSTRIP ASSEMBLY, Quarter Glass Front , Right- WEATHERSTRIP ASSEMBLY, Quarter Glass Front , Right
43
5241497WEATHERSTRIP ASSEMBLY, Quarter Glass Front , Right- WEATHERSTRIP ASSEMBLY, Quarter Glass Front , Left
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1993
Dodge Shadow parts. Parts like Glass - Quarter Window are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
