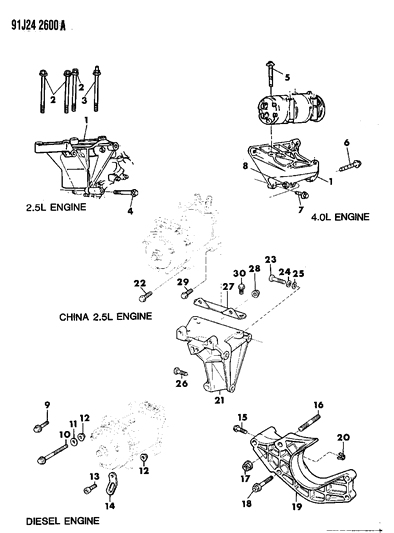

Diagram (1 of 1): HEATER AND AIR CONDITIONING COMPRESSOR MOUNTING CHEROKEE, BRIARWOOD, COMANCHE WRANGLER

1993 Jeep Cherokee Compressor & Mounting Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
53000530
BRACKET
CHINA
1
53006548
BRACKET
- 4.0L Engine
1
53007600
BRACKET
- 2.5L Engine
1
53010090
BRACKET
- RHD

3
6502145
STUD

4
J0180129
BOLT
CHINA
$8.92 $7.01
1
Add To Cart
4
6502138
BOLT
4
J4001102
BOLT
- WASHER, Flat, Compressor Mounting Bracket CHINA

6
6502957
BOLT

7
6025063
SCREW AND WASHER

8

6502135
NUT
$10.55 $7.12
1
Add To Cart

9
34201819
BOLT
- Require Quantity: 2

10
6101420
BOLT 130mm

11
J4001104
WASHER

12
11502812
NUT
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 6502135
$10.55 $7.28
1
Add To Cart

13
J4200446
BOLT 35mm

14
4713466
STRAP, Adjusting
1991
14
53010083
STRAP, Adjusting
- 1992-93, Rear
14
53010084
STRAP, Adjusting
- 1992-93

15
34201869
BOLT 35mm
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6502137
$13.75 $9.53
1
Add To Cart

16
34201744
STUD 85mm

17
J4200081
NUT

18
34202047
BOLT 65mm

19
53001771
BRACKET

20
53000548
SPACER

21
53000530
BRACKET, Mounting

22
6502137
BOLT, 35mm
- Require Quantity: 2
- Package Quantity: 1

23
J0180129
BOLT
$8.92 $7.01
1
Add To Cart

24
J0120382
WASHER

25
J4001102
WASHER

26
J4006995
BOLT
- Require Quantity: 2

27
53000529
BRACKET, Mounting

28

11506007
NUT
$8.10 $5.46
1
Add To Cart

29
11502689
BOLT
- Require Quantity: 2

30
34201868
BOLT
- Require Quantity: 2

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1993 Jeep Cherokee parts. Parts like Compressor & Mounting are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.1L Diesel, 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
