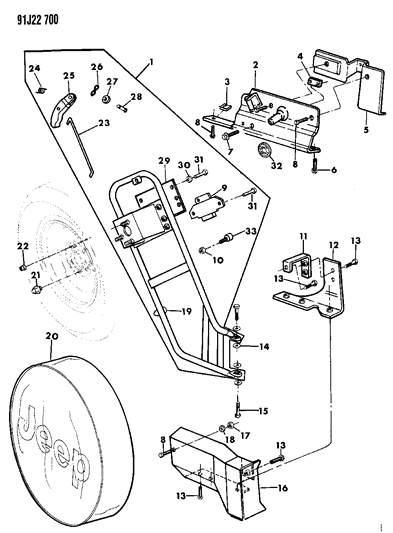

Diagram (1 of 1): WHEELS WHEEL, SPARE OUTSIDE MOUNTING, SWING AWAY CHEROKEE, BRIARWOOD

1993 Jeep Cherokee Spare Wheel, Outside Mounting, Swing Away Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
55025329
CARRIER ASSEMBLY

2
55026244
REINFORCEMENT

3

6101283
U-NUT

4
55026245
BRACKET

5
55026243
REINFORCEMENT

6
6502334
BOLT, Torx M8x1.25x35

7
34202452
SCREW, w/Washer

8
34201596
BOLT, Pan Head Torx M8x1.25x22
- Require Quantity: 5
- Package Quantity: 1

9
52005822
MECHANISM, Lock

10

6100219
NUT, Jam M10x1.50
$8.40 $5.68
1
Add To Cart

11
55026247
REINFORCEMENT, Upper

12
55026246
REINFORCEMENT, Lower

13
34202467
BOLT, M8x1.25x30
- Require Quantity: 7
- Package Quantity: 1
$8.95 $6.18
1
Add To Cart

14
83507112
BUSHING PACKAGE

15
6004504
BOLT, Carrier Pivot
- Require Quantity: 2
- Package Quantity: 1

16
52005823
BRACKET ASSEMBLY

17

6101467
NUT, M8x1.25
$7.80 $6.09
1
Add To Cart

18
6501000
WASHER, Flat

19
52005825
BUMPER, Lower

20
55016126
COVER, Black Spare

21
J4006956
NUT, Acorn
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6036747AA
$15.90 $8.55
1
Add To Cart

22
J4007186
NUT, Lock

23
52005821
ROD, Handle

24
55234511
SPRING, Handle Return

25
52005820
HANDLE

26
55234514
CLIP

27
55234513
WASHER

28
55234512
PIN, Handle to Weldment

29
55234515
PLATE, Adjuster

30
55234510
WASHER, Adjuster Plate
- Require Quantity: 4

31
55234517
BOLT, Adjuster Plate and Latch
- Require Quantity: 4

32
55234516
SLEEVE, Latch Pin

33
52005826
BUMPER, Upper

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1993 Jeep Cherokee parts. Parts like Spare Wheel, Outside Mounting, Swing Away are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.1L Diesel, 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
