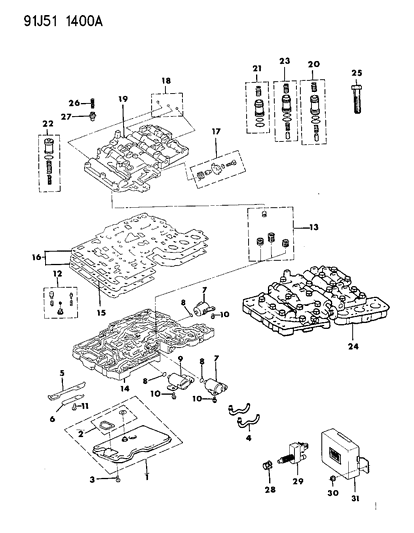

Diagram (1 of 1): TRANSMISSION, AUTO. VALVE BODY AND ELECTRONIC CONTROL AUTOMATIC TRANSMISSION - AW4 CHEROKEE, BRIARWOOD, COMANCHE, GRAND CHEROKEE
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
- 2$19.50 $15.331
- 3
83504031
BOLT, Flange, M6x1.0x12mm- Require Quantity: 4
- 4
83504334
TUBE- Require Quantity: 2
- 5
83504016
SPRING, Manual Detent

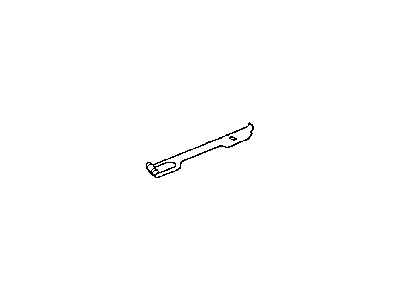

- 6
83504015
COVER, Detent
- 783504043
SOLENOID, 1st & 2nd- Require Quantity: 2
- 8
83504065
O-RING- Require Quantity: 3
- 9
- 1083504031
BOLT, Flange Head, M6x1.0x12mm- Require Quantity: 3
- 11
83504014
BOLT, Flange, M6x1.0x16mm
- 12
- 13
83504336
STRAINER PACKAGE
- 1483504356
BODY, Lower Valve
- 15
4637468
PLATE, 1991- 1992-93
- 1583503770
PLATE, 1991- PLATE, 1991
- 1683504337
GASKET PACKAGE
- 17
4637026
CAM PACKAGE, Throttle Valve
- 18
4637031
BALL PACKAGE, Check (Qty.3)
- 1983504355
BODY, Upper Valve
- 20
4636787
ACCUMULATOR PACKAGE, B-2- PISTON, Accumulator, B-2
- 204637030
ACCUMULATOR PACKAGE, B-2- ACCUMULATOR PACKAGE, B-2
- 21
4636788
ACCUMULATOR PACKAGE, B-0- PISTON, Accunulator, B-0
- 21
4637028
ACCUMULATOR PACKAGE, B-0- ACCUMULATOR PACKAGE, B-0
- 22
83504343
ACCUMULATOR PACKAGE, C-2

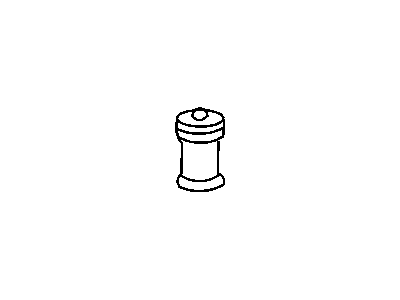

- 23
4636786
ACCUMULATOR PACKAGE, C-2- PISTON, Accumulator, C-2
- 23
4637029
ACCUMULATOR PACKAGE, C-2- ACCUMULATOR PACKAGE, C-2
- 23
- 23
- 24
- 2583504011
BOLT- M5x0.8x20mm
- Require Quantity: 9
- 2583504012
BOLT- M5x0.8x28mm
- Require Quantity: 3
- 2583504013
BOLT- M5x0.8x38mm
- Require Quantity: 13
- 2583504014
BOLT- M6x1.0x16mm
- 2583504031
BOLT- M6x1.0x12mm
- Require Quantity: 6
- 2583504133
BOLT- M6x1.0x23mm
- Require Quantity: 5
- 2583504134
BOLT- M6x1.0x32mm
- Require Quantity: 12
- 26
83504036
SPRING
- 27
- 28J4006789
NUT

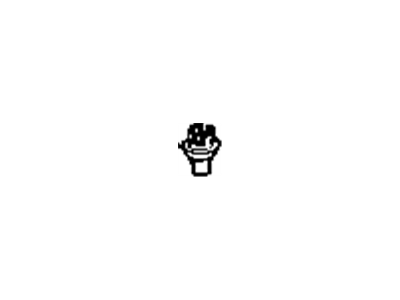

- 2956002281
SWITCH, Trans. Converter Cut-Out
- 30
- 3153008383
MODULE, Transmission, 1991- MODULE, Transmission, 1991
w/EUROPEAN, 1992-93 - Fitting Vehicle Options: XJ,MJ
- MODULE, Transmission, 1991
- 3153009230
MODULE, Transmission, 1991- MODULE, Trans. Control, (Located at Left Cowl Side)
- Fitting Vehicle Options: ZJ
- 3153009231
MODULE, Transmission, 1991- BACKPLATE, Control Module Mtg.
- Fitting Vehicle Options: ZJ
- 3156026769
MODULE, Transmission, 1991- Except EUROPEAN, 1992-93
- Fitting Vehicle Options: XJ,MJ
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1993 Jeep Grand Cherokee parts. Parts like Valve Body & Electronic Control are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.0L, 8 Cyl 5.2L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
