2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

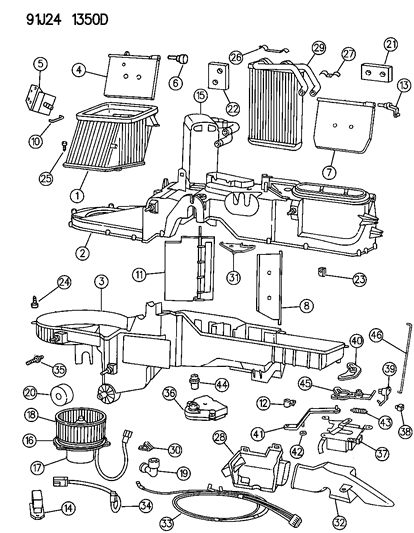

1.HEATER AND AIR CONDITIONING AIR CONDITIONING UNIT A.T.C. GRAND CHEROKEE (ZJ)

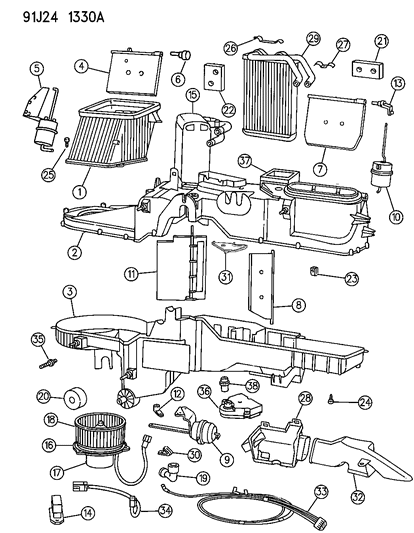

2.HEATER AND AIR CONDITIONING AIR CONDITIONING UNIT GRAND CHEROKEE (ZJ)

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4720549
HOUSING, Fresh and Recirc.

2
4720546
HOUSING, Upper

3
4720547
HOUSING, Lower
HOUSING, Lower
3
4720548
HOUSING, Lower
- HOUSING, Lower
3
4720558
HOUSING, Lower
- BUSHING

4
4720026
DOOR, Fresh Air
DOOR, Fresh Air
$62.15 $42.22
1
Add To Cart
4
4720024
DOOR, Fresh Air
- DOOR, Fresh Air

5
4720349
ACTUATOR, Fresh Air Door

5
4720563
ACTUATOR, Fresh Air Door, Stamped 063700-3780

6

4720029
RETAINER, Fresh Air Door

7

4720023
DOOR, Vent/Defrost

8
4720022
DOOR, Floor Duct

8
4720022
DOOR, Heater Floor Duct

9
4720282
ACTUATOR, Floor Duct

10
4720279
ACTUATOR, Vent/Defrost

10
4720562
SHAFT, Door

11
4720011
DOOR, Temp.

12
4720573
LEVER

12
4720347
LEVER, Floor Duct Door
$0.00

13
4720348
LEVER, Vent/Defrost

13
04740166
LEVER, Vent/Defrost Door
LEVER, With Spring, Mode Door
13
4720348
LEVER, Vent/Defrost Door
- LEVER, Vent/Defrost Door

14
4720046
MODULE, Power (Resistor, Motor)

14

4720278
RESISTOR, Blower Motor
$86.10 $58.46
1
Add To Cart

15
04728766
EVAPORATOR, Core
O RING, Evap. To Line
15
4723518
EVAPORATOR, Core
- EVAPORATOR, Core
15
V9900110
EVAPORATOR, Core
- Mopar V-Line Alternative Part
- Replaced By: 4723518AD

16

4720039
SEAL, Blower Motor

16

4720039
SEAL, Motor

17
4720006
MOTOR, Blower
MOTOR, Blower
17
R4720006
MOTOR, Blower
- MOTOR, Heater Blower

18

4720009
WHEEL, Motor

19
5210066
TUBE, Motor Vent

20

4720037
SEAL, Evaporator Drain to Dash

21
4720033
SEAL, Heater Tubes to Dash

22

4720034
SEAL, Evaporator Tubes to Dash
$30.34 $23.84
1
Add To Cart

23
4720045
U-NUT

24
4720533
SCREW
- Require Quantity: 21
- Package Quantity: 1
$5.70 $3.87
1
Add To Cart

25
4720534
SCREW
- Require Quantity: 14
- Package Quantity: 1

26
4720555
CLAMP

27
4720028
RETAINER, Heater Core Tubes

28
4720010
DUCT, Floor

29

4720008
CORE ASSEMBLY, Heater

30
4720031
CLAMP
- Require Quantity: 2
- Package Quantity: 1

30
4720031
RETAINER

31
4746572
COVER

32
4720560
DUCT, Air

33
4720350
LINE, Vacuum

34
4720531
HARNESS, Wiring
HARNESS, Wiring
34
4720532
HARNESS, Wiring
- HARNESS, Wiring

35
4720032
STUD, Mounting
- Require Quantity: 4
- Package Quantity: 1
$16.67 $13.10
1
Add To Cart

36

4647039
MODULE, Door, Casting# 16124952, E1822533S
$0.00

36
4720015
SERVO, Temp. Door, Stamped 16124922
$64.10 $50.37
1
Add To Cart

37
4720569
ACTUATOR, Heat and Defrost Door (Mode) (AA113800 1362)
$0.00

37
4720546
DUCT, Air

38
4720576
CLIP

38
4720014
LEVER, Temp.

39

4720572
LEVER
$8.29 $6.42
1
Add To Cart

40
4720559
PLATE

41
4740166
LEVER

42
4746882
WASHER

43
4746883
SPRING
$8.92 $7.01
1
Add To Cart

44
4720014
LEVER, Temp.

45
4762086
PLATE

46
4720571
SHAFT, A/C/Heater Door

04728767
O RING, Evap. To Drier

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1993 Jeep Grand Cherokee parts. Parts like A/C Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.0L, 8 Cyl 5.2L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
