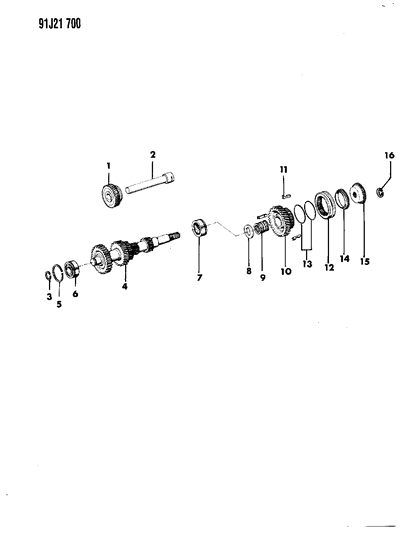

Diagram (1 of 1): TRANSMISSION, MANUAL & TRANSFER CASE GEAR TRAIN, REVERSE IDLER, MANUAL TRANSMISSION SIX CYLINDER ENGINE 4.0L, FIVE SPEED TRANSMISSION AISIN - MODEL AX 15

1993 Jeep Wrangler Gear Train, Reverse Idler Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
5252084
GEAR, Reverse Idler

2
83506258
SHAFT, Reverse Idler Gear
$47.84 $37.60
1
Add To Cart

3
83506081
SNAP RING, Counter Shaft Front Bearing
Stamped A (X=2.00mm/2.05mm)
3
83506082
SNAP RING, Counter Shaft Front Bearing
- Stamped B (X=2.05mm/2.10mm)
3
83506083
SNAP RING, Counter Shaft Front Bearing
- Stamped C (X=2.10mm/2.15mm)
3
83506084
SNAP RING, Counter Shaft Front Bearing
- Stamped D (X=2.15mm/2.20mm)
3
83506085
SNAP RING, Counter Shaft Front Bearing
- Stamped E (X=2.20mm/2.25mm)

4
4636371
GEAR, Cluster Counter
1992-93
$511.90 $402.27
1
Add To Cart
4
5252085
GEAR, Cluster Counter
- 1991

5
83506220
SNAP RING, Center Front Bearing, Case

6
83506259
BEARING, Front Roller, No. 1 (53mmODx24mmWD)

7
83506080
BEARING, Rear Countershaft Needle Roller (64mmODx22mmWD)
$130.09 $99.11
1
Add To Cart

8
83506245
WASHER, Thrust, 5th Gear

9
83506079
BEARING, 5TH Counter Gear, Needle Roller, (34.85mmODx37.5mmWD)

10
4637527
GEAR PACKAGE, Fifth Counter Gear, (Used up to Transmission Serial #00705123)
GEAR, 5TH Counter, (Used after Transmission Serial #00705123) (1 - 4637534 Spring #3)
10
4637535
GEAR PACKAGE, Fifth Counter Gear, (Used up to Transmission Serial #00705123)
- GEAR PACKAGE, Fifth Counter Gear, (Used up to Transmission Serial #00705123)

11
4637532
KEY, Synchronizer No. 3 5th Gear
After Transmission Serial #00705123
11
83506256
KEY, Synchronizer No. 3 5th Gear
- Up to Transmission Serial #00705123

12

83506257
SLEEVE, Synchronizer No. 3, 5th Gear

13
4637534
SPRING, Synchronizer No. 3, 5th Gear
After Transmission Serial #00705123
Fitting Vehicle Options: ZJ
13
83506254
SPRING, Synchronizer No. 3, 5th Gear
- Up to Transmission Serial #00705123

14
4637533
RING, Synchronizer No. 3, 5th Gear
After Transmission Serial #00705123
Fitting Vehicle Options: ZJ
14
83506253
RING, Synchronizer No. 3, 5th Gear
- Up to Transmission Serial #00705123

15
83506242
SPACER, /gear Spline No. 5

16
83506260
SNAP RING, Countershaft 5th Gear
Stamped A (X=2.80mm/2.85mm)
16
83506261
SNAP RING, Countershaft 5th Gear
- Stamped B (X=2.85mm/2.90mm)
16
83506262
SNAP RING, Countershaft 5th Gear
- Stamped C (X=2.90mm/2.95mm)
16
83506263
SNAP RING, Countershaft 5th Gear
- Stamped D (X=2.95mm/3.00mm)
16
83506264
SNAP RING, Countershaft 5th Gear
- Stamped E (X=3.00mm/3.08mm)
16
83506265
SNAP RING, Countershaft 5th Gear
- Stanped F (X=3.05mm/3.10mm)
16
83506266
SNAP RING, Countershaft 5th Gear
- Stamped G (X=3.10mm/3.15mm)
16
83506267
SNAP RING, Countershaft 5th Gear
- Stamped H (X=3.15mm/3.20mm)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1993 Jeep Wrangler parts. Parts like Gear Train, Reverse Idler are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
