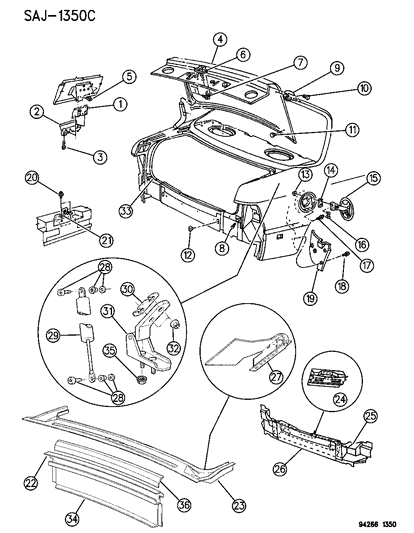

Diagram (1 of 1): SHEET METAL - BODY J-BODY LIFTGATE PANEL AND FUEL FILLER DOOR J BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
4378228COVER, Deck Lid Latch 2
5257620COVER, Deck Lid Latch
4
5253361PANEL, Deck Lid- FILLER, Deck Lid Opening Upper To Backlite
4
7
8
9
4416766COVER, Deck Lid Inner Panel Tail Lamp Filler, Right- COVER, Deck Lid Inner Panel Tail Lamp Filler, Right
9
4416767COVER, Deck Lid Inner Panel Tail Lamp Filler, Right- COVER, Deck Lid Inner Panel Tail Lamp Filler, Left
10
11
13
116000NUT- Require Quantity: 2
- Package Quantity: 1
16
4719008
PLATE, Fuel Filler Door
19
4371598SHIELD, Rear w/House Inner Panel, Right- SHIELD, Rear w/House Inner Panel, Right
19
4371599SHIELD, Rear w/House Inner Panel, Right- SHIELD, Rear w/House Inner Panel, Left
22
4341774
TROUGH, Deck Opening Upper Panel Drain
23
5253362
TROUGH, Deck Opening Upper Drain
24
4386086
REINFORCEMENT, Deck Opening Lower Panel Striker
25
4341690
REINFORCEMENT, Opening Lower Panel
26
4341681
PANEL, Deck Opening Lower
27
4440260BRACKET, Door Opening Upper Panel Prop, Right- BRACKET, Door Opening Upper Panel Prop, Right
27
4440261BRACKET, Door Opening Upper Panel Prop, Right- BRACKET, Door Opening Upper Panel Prop, Left
34
4440332
PANEL, Deck Lid Opening Upper Rear
35
36
4440152
BRACE, Deck Opening Drain Trough to Closure Panel
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1994
Chrysler LeBaron GTC parts. Parts like Liftgate Panel And Fuel Filler Door are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L. Transmission: 4-Speed Automatic Transmission.
