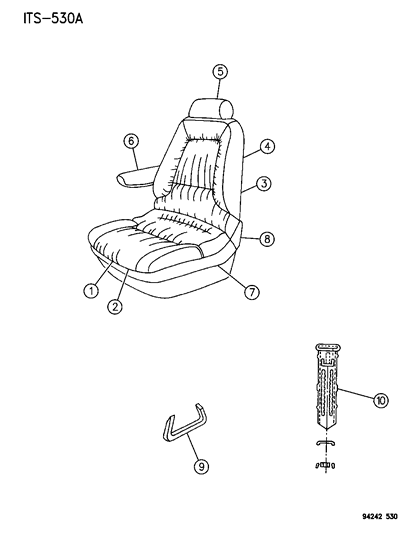

Diagram (1 of 1): INTERIOR TRIM S BODY SEAT--FRONT S BODY TRIM CODES G7,GL
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
HT28PF6CUSHION, w/Spring/Frame, Pad and Cover
3
JH72PF6BACK, w/Spring/Frame, Pad and Cover 3
JH73PF6BACK, w/Spring/Frame, Pad and Cover
4
WU34PF6COVER, Back- Driftwood, (G7F), Right (CLOTH)
4
WU35PF6COVER, Back- Driftwood, (G7F), Left (CLOTH)
6
JH44PF6ARMREST and COVER- Driftwood, (G7F) (Inboard)
6
JH45PF6ARMREST and COVER- Driftwood, (G7F) (Inboard)
7
HT26PF4CUSHION, w/Spring/Frame, Pad and Cover- Driftwood, (GLF) (LEATHER)
- Require Quantity: 2
7
HT26PW8CUSHION, w/Spring/Frame, Pad and Cover- Quartz, (GLDW) (LEATHER)
- Require Quantity: 2
8
WU24MW8COVER, Cushion- Quartz, (GLDW) (Leather)
- Require Quantity: 2
8
WU24PF4COVER, Cushion- Driftwood, (GLF) (Leather)
- Require Quantity: 2
9
JH74PF4BACK, w/Spring/Frame, Pad and Cover 9
JH74PW8BACK, w/Spring/Frame, Pad and Cover 9
JH75PF4BACK, w/Spring/Frame, Pad and Cover 9
JH75PW8BACK, w/Spring/Frame, Pad and Cover
10
WU22MW8COVER, Back- Quartz, (GLDW), Right (LEATHER)
10
WU22PF4COVER, Back- Driftwood, (GLF), Right (LEATHER)
10
WU23MW8COVER, Back- Quartz, (GLDW), Left (LEATHER)
10
WU23PF4COVER, Back- Driftwood, (GLF), Left (LEATHER)
11
AA56MW8HEADREST and COVER- Quartz, (GLDW) (LEATHER)
- Require Quantity: 2
11
AA56PF4HEADREST and COVER- Driftwood, (GLF) (LEATHER)
- Require Quantity: 2
12
JH44PF4ARMREST and COVER- Driftwood, (GLF) (Inboard)
12
12
JH45PF4ARMREST and COVER- Driftwood, (GLF) (Inboard)
12
15
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1994
Chrysler Town & Country parts. Parts like Front Seat are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.8L. Transmission: 4-Speed Automatic Transmission.
