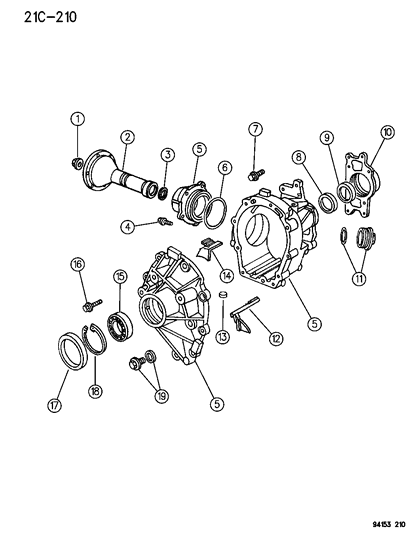

Diagram (1 of 1): PWR. TRANFER UNIT 4 SPEED TRANSFER CASE AND HOUSING POWER TRANSFER, USE WITH 41AE S BODY, AWD

1994 Dodge Grand Caravan Transfer Case & Housing Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4518903
NUT, Pinion Flange Lock, M16x1.5

2
4518917
FLANGE, Output Shaft Tube
FLANGE, Output Shaft Tube
2
6500517
FLANGE, Output Shaft Tube
- SCREW, Flange to P/Shaft, M8x1.25x27 (Not Shown)
- Require Quantity: 6

3
4486070
O-RING, Output Shaft Flange Tube

4
6101321
SCREW, Cover Case Rear, M8x1.25x30
- Require Quantity: 5

6
4486077
O-RING, Case Rear Cover
$13.59 $10.68
1
Add To Cart

7
6101321
SCREW, Case to Retainer Plate, M8x1.25x30
- Require Quantity: 4

8
4486042
SEAL, Bearing Retainer Plate Oil
$32.45 $24.96
1
Add To Cart

9
4486042
SEAL, Bearing Retainer Plate Oil
$32.45 $24.96
1
Add To Cart

10
6500111
RETAINER PLATE, w/Bearing Cup, To Transaxle
O-RING, Retainer Plate (Not Shown)
$13.65 $11.86
1
Add To Cart
10
4773735
RETAINER PLATE, w/Bearing Cup, To Transaxle
- RETAINER PLATE, w/Bearing Cup, To Transaxle

11
4637108
PLUG, w/O-Ring, Fill & Inspection Oil, Large 2-1/2" O.D.

13
4486046
MAGNET, Case End Cover

14
4486796
TROUGH, Case Right

15
4486065
BEARING, Outer Half Drive Shaft Roller

16
6500511
SCREW, End Cover to Case, M8x1.25x33
- Require Quantity: 9
- Package Quantity: 1
$8.45 $5.73
1
Add To Cart

17
4641263
SEAL, Outer Half Shaft Oil

18
4486754
SNAP RING, Bearing Retaining

19
4293859
PLUG, w/Gasket, Fill & Drain, Small

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1994 Dodge Grand Caravan parts. Parts like Transfer Case & Housing are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.8L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission.
