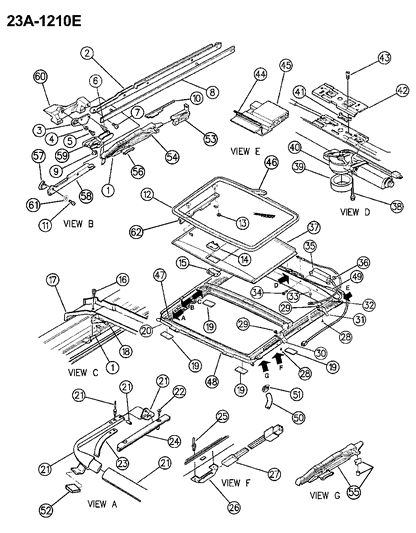

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS SUNROOF LH BODY

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4796084
SUNROOF, Kit (Mechanism) (Includes Item 53 Thru 60) Does Not Include The Motor

2
4728442
TROUGH and GUIDE LINK , Right
TROUGH and GUIDE LINK , Right
2
4728443
TROUGH and GUIDE LINK , Right
- TROUGH and GUIDE LINK , Left

3
4798480
PIVOT, Front Guide Plate, Right
PIVOT, Front Guide Plate, Right
3
4798481
PIVOT, Front Guide Plate, Right
- PIVOT, Front Guide Plate, Left

4
4728556
BUSHING, 4.25x6.5x3.79, (Serviced in Item 1)

5
4728555
SCREW, M4-0.7x12.0

6
4728557
SCREW, M5-.8x12.0, (Serv. in Item 1) 1994
SCREW, M5-.8x12.0, (Serv. in Item 1) 1994
6
4796082
SCREW, M5-.8x12.0, (Serv. in Item 1) 1994
- SCREW, 1995
- Require Quantity: 2
6
4798760
SCREW, M5-.8x12.0, (Serv. in Item 1) 1994
- 1996
- Require Quantity: 2

7
4728584
SCREW, M3x0.5x8.0

8
4741595
COVER, Assy.
Right
8
4741765
COVER, Assy.
- Left

9
4796770
BUSHING, Right
BUSHING, Right
9
4796771
BUSHING, Right
- BUSHING, Left

10
4728439
CABLE, Assy.
CABLE, Assy.
10
4798766
CABLE, Assy.
- 1996

11
4728553
SCREW, M5x6.0 (1994)
SCREW, M5x6.0 (1994)
11
4796081
SCREW, M5x6.0 (1994)
- SCREW, (1995)
- Require Quantity: 4
11
4798759
SCREW, M5x6.0 (1994)
- SCREW, 1996
- Require Quantity: 4

12
4728550
PANEL ASSY., Glass Complete

13
4728552
NUT, M5-0.8

14
83505358
BEZEL, Sunscreen

15
4741911
HANDLE, Fingerwell, Sunscreen

16
4728583
SCREW, 18x.375
SCREW, 18x.375
Require Quantity: 8
16
4856086
SCREW, 18x.375
- 1996

17
4728440
TROUGH ASSY., Water w/Seal

18
4728585
SCREW, M4x6

19
4773001
RETAINER, Dual Lock 1"x1"
- Require Quantity: 4

20
4728438
HOUSING ASSY., Complete
HOUSING ASSY., Complete
20
4856084
HOUSING ASSY., Complete
- 1996

21
4762994
DEFLECTOR ASSY.

22
4728586
SCREW, M4-0.7x10.0
SCREW, M4-0.7x10.0
22
4798695
SCREW, M4-0.7x10.0
- 1996

23
4728534
SPRING, Wind Deflector

24
4728444
PLUG, Sunroof Track (Cover)
Right
24
4728445
PLUG, Sunroof Track (Cover)
- Left

25
4728587
RIVET, 1/8x.125

26
4728441
RETAINER, Switch

27
4728446
SWITCH ASSY.,Sensor

28
6503015
SCREW, M6x1.0x16
- Require Quantity: 2

29
5242202
NUT, M6x1.00, "U" Type
- Require Quantity: 2

30
4728436
BRACKET, Front Support

31
4728437
BRACKET, Rear Support

32
4728524
TUBE, Return

35
4728535
CONTROLLER, Sunroof Open/Vent

36
4762999
RETAINER, M6x15

37
4778152
SUNSHADE ASSEMBLY
Natural
37
4778153
SUNSHADE ASSEMBLY
- Quartz

38
4773003
SCREW, M5-8x44

40
4728447
DRIVE ASSEMBLY, Electric (Motor Sunroof)

41
4728519
GUIDE, Cable Drive

42
4762789
RETAINER, Tube (1994)
RETAINER, Tube (1994)
42
4796077
RETAINER, Tube (1994)
- RETAINER, Tube (1995)

43
4728588
SCREW, M4.2x9.5

44
4728434
SEAL, Dust (Side and Rear) Right, Right
SEAL, Dust (Side and Rear) Right, Right
44
4728435
SEAL, Dust (Side and Rear) Right, Right
- SEAL, Dust (Side and Rear) Right, Left

45
4762249
RESTRICTOR, Glass Panel Sunshade

46
4728551
SEAL, Panel

47
4740794
SEAL, Plug to Track, Right
SEAL, Plug to Track, Right
47
4740795
SEAL, Plug to Track, Right
- SEAL, Plug to Track, Left

48
4728432
SEAL, Dust Front

49
4728433
INSULATOR

50
4630441
TUBE, Drain
Front
50
4630446
TUBE, Drain
- Rear

51
J4007354
CLAMP, Sunroof Drain

52
4763000
ISOLATOR

53
4796756
SHOE ASSEMBLEY, Guide , Right
SHOE ASSEMBLEY, Guide , Right
53
4796757
SHOE ASSEMBLEY, Guide , Right
- SHOE ASSEMBLEY, Guide , Left

54
4796748
CAM-SLIDE, Right

55
4796754
CAM-SLIDE, Left

56
4796749
SPRING, Cam

57
4796766
RETAINER, Slide, Right
RETAINER, Slide, Right
57
4796767
RETAINER, Slide, Right
- RETAINER, Slide, Left

58
4796762
SLIDE, Glass Panel, Right
SLIDE, Glass Panel, Right
58
4796763
SLIDE, Glass Panel, Right
- SLIDE, Glass Panel, Left

59
4796752
LINK, Sunroof, Right
LINK, Sunroof, Right
59
4796753
LINK, Sunroof, Right
- LINK, Sunroof, Left

60
4796736
GUIDE, Front, Right
GUIDE, Front, Right
60
4796737
GUIDE, Front, Right
- GUIDE, Front, Left

61
4761529
WASHER, (M5.3x0.9x0.6)
- Require Quantity: 8

62
4856040
BRACKET, Guide, Right
BRACKET, Guide, Right
62
4856041
BRACKET, Guide, Right
- BRACKET, Guide, Left

4798691
BOLT, Shoulder (M4x0.7)(Revised Shoulder Bolt to Improve Spring Function)

4728448
BUSHING, Slide

4746280
Glass, (For 4746276 Pkg. Only)

4798690
LINK ASSY., Front Guide Trough Pkg. (2 Link Guides, 2 Springs, 2 Nuts, 2 Bolts) Used On Sunroof Before Sept 1994

4798688
LINK, Front Guide (The Weld Nut Is deleted and Attachment Holes Revised To Allow For New Attaching Hardware), Right
LINK, Front Guide (The Weld Nut Is deleted and Attachment Holes Revised To Allow For New Attaching Hardware), Right
4798689
LINK, Front Guide (The Weld Nut Is deleted and Attachment Holes Revised To Allow For New Attaching Hardware), Right
- LINK, Front Guide (The Weld Nut Is deleted and Attachment Holes Revised To Allow For New Attaching Hardware), Left
$17.50 $13.69
1
Add To Cart

4796086
LINK, Front Guide, Right
LINK, Front Guide, Right
4796087
LINK, Front Guide, Right
- LINK, Front Guide, Left

4798694
NUT, (Replaces Weld Nut Which Was Part of 4796086)
- Require Quantity: 2
- Package Quantity: 1

4778163
NUT, Sunroof Top
- Require Quantity: 6

4796755
SCREW, (M-5-0.8x6.5x3.9 Shoulder)
- Require Quantity: 4

4778164
SCREW, (Round Washer Head M4-0.7x12)

4741600
SCREW, Attach Cover To Trough
- Require Quantity: 2

4796214
SEAL PKG., Dust

4778160
SEAL, Dust Rear

4778159
SEAL, Trough Water

4778159
SEAL, Water Trough

4778155
SPACER, Housing Sunroof
- Require Quantity: 2

4798692
SPRING, Glass Panel, (Spring Redesigned Changing of Coils and Angle Between Legs to Improve Durability and Function, Right
SPRING, Glass Panel, (Spring Redesigned Changing of Coils and Angle Between Legs to Improve Durability and Function, Right
4798693
SPRING, Glass Panel, (Spring Redesigned Changing of Coils and Angle Between Legs to Improve Durability and Function, Right
- SPRING, Glass Panel, (Spring Redesigned Changing of Coils and Angle Between Legs to Improve Durability and Function, Left

4796370
SPRING, Glass Panel, Right
SPRING, Glass Panel, Right
4796371
SPRING, Glass Panel, Right
- SPRING, Glass Panel, Left

4746276
SUNROOF ASSEMBLY, (Less Glass)
4856092
SUNROOF ASSEMBLY, (Less Glass)

4762240
TAPE, Fastener Loop - Sunroof Center Wet Area

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1994 Dodge Intrepid parts. Parts like Sunroof are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.3L, 6 Cyl 3.5L. Transmission: 4-Speed Automatic Transmission.
