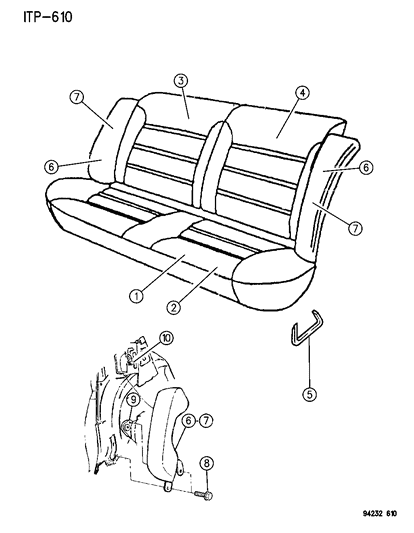

Diagram (1 of 1): INTERIOR TRIM P BODY SEAT--REAR P BODY TRIM CODES F7-P7
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1-2
HH58MD5CUSHION, w/Spring/Frame, Pad and Cover 1-2
HH58MV4CUSHION, w/Spring/Frame, Pad and Cover
2
HH59MD5COVER, Cushion- Quartz, (F7D,P7D) (CLOTH)
2
HH59MV4COVER, Cushion- Champagne, (F7V,P7V) (CLOTH)
3-4
FZ40LD5BACK, w/Spring/Frame, Pad and Cover 3-4
FZ40LV4BACK, w/Spring/Frame, Pad and Cover 3-4
GU70MD5BACK, w/Spring/Frame, Pad and Cover 3-4
GU70MV4BACK, w/Spring/Frame, Pad and Cover
5
6
EG94KD5BOLSTER, w/Cover- Quartz, (F7D,P7D), Right
- Fitting Vehicle Options: 24
6
EG94KV4BOLSTER, w/Cover- Champagne, (F7V,P7V), Right
- Fitting Vehicle Options: 24
6
EG95KD5BOLSTER, w/Cover- Quartz, (F7D,P7D), Left
- Fitting Vehicle Options: 24
6
EG95KV4BOLSTER, w/Cover- Champagne, (F7V,P7V), Left
- Fitting Vehicle Options: 24
6
EG96KD5BOLSTER, w/Cover- Quartz, (F7D,P7D), Right
- Fitting Vehicle Options: 44
6
EG96KV4BOLSTER, w/Cover- Champagne, (F7V,P7V), Right
- Fitting Vehicle Options: 44
6
EG97KD5BOLSTER, w/Cover- Quartz, (F7D,P7D), Left
- Fitting Vehicle Options: 44
6
EG97KV4BOLSTER, w/Cover- Champagne, (F7V,P7V), Left
- Fitting Vehicle Options: 44
7
EH02KDDCOVER, Bolster- Quartz, (F7D,P7D), Right
- Fitting Vehicle Options: 24
7
EH02KVVCOVER, Bolster- Champagne, (F7V,P7V), Right
- Fitting Vehicle Options: 24
7
EH03KDDCOVER, Bolster- Quartz, (F7D,P7D), Left
- Fitting Vehicle Options: 24
7
EH03KVVCOVER, Bolster- Champagne, (F7V,P7V), Left
- Fitting Vehicle Options: 24
7
EH06KD5COVER, Bolster- Quartz, (F7D,P7D), Right
- Fitting Vehicle Options: 44
7
EH06KV4COVER, Bolster- Champagne, (F7V,P7V), Right
- Fitting Vehicle Options: 44
7
EH07KD5COVER, Bolster- Quartz, (F7D,P7D), Left
- Fitting Vehicle Options: 44
7
EH07KV4COVER, Bolster- Champagne, (F7V,P7V), Left
- Fitting Vehicle Options: 44
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1994
Dodge Shadow parts. Parts like Rear Seat are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
