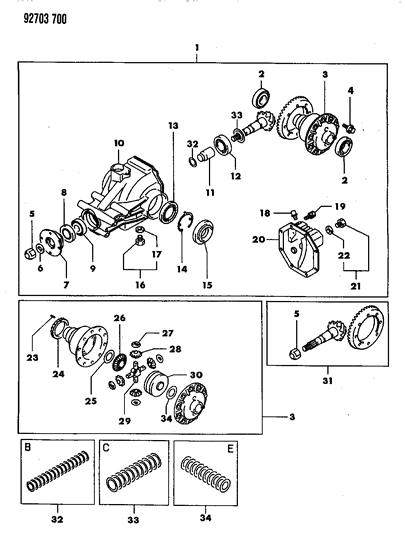

Diagram (1 of 1): REAR AXLE DIFFERENTIAL STEALTH AWD

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
MB698849
CARRIER ASSY., Rear Differential
1992-93
1
MR124420
CARRIER ASSY., Rear Differential
- 1994

2
MB569926
BEARING, Side
- Require Quantity: 2

3
MB837462
DIFFERENTIAL KIT, Limited Slip

4
MB092221
BOLT, Flange, (10x23.5)
- Require Quantity: 10
- Package Quantity: 1
$2.04 $0.92
1
Add To Cart

5

MA143517
NUT, Lock, (18)

6
MT203641
WASHER, Plain, (18.5)

7
MB664296
FLANGE, Companion

8
MB569924
SEAL, Drive Pinion Oil

9
MB290961
BEARING, Drive Pinion Front, (30.163x22.225)

10
MB569920
CARRIER, Differential

11
MB092143
SPACER, Pinion Bearing
46.67
11
MB092144
SPACER, Pinion Bearing
- 47.01

12
MB290960
BEARING, Drive Pinion Rear, (36.513x29.370)
1994
12
MB393470
BEARING, Drive Pinion Rear, (36.513x29.370)
- 1992-93

13
MB569922
NUT, Differential
- Require Quantity: 2

14
MB569923
SNAP RING, Differential
- Require Quantity: 2

15
MB569925
SEAL, Side Bearing Oil
- Require Quantity: 2

16
MB569390
PLUG KIT, Drain
$11.30 $8.71
1
Add To Cart

17

MB001294
GASKET, Diferential
$1.70 $1.14
1
Add To Cart

18
MB393530
PLUG, Vent

19
MF244881
BOLT, w/Washer, (10x30)
1992-93
Require Quantity: 8
Package Quantity: 1
$8.92 $7.01
1
Add To Cart
19
MF244882
BOLT, w/Washer, (10x30)
- 1994
- Require Quantity: 8

20
MB569935
COVER, Carrier

21

MB001261
PLUG KIT, Filler

22

MF660066
GASKET, Differential
$1.90 $1.14
1
Add To Cart

23
MF472536
PIN, Spring, (3x16)
$1.07 $0.66
1
Add To Cart

24
MB569835
GEAR, Differential Drive

25
MB837522
SHIM, Viscous Coupling, LSD

26
MB837457
GEAR, Viscous Coupling, LSD, Side

27
MB837460
WASHER, Differential
- Require Quantity: 4

28
MB837459
PINION, Viscous Coupling, LSD
- Require Quantity: 4

29
MB837458
SHAFT, Viscous Coupling, LSD, Pinion

30
MB837456
COUPLING UNIT, Viscous, Rear

31
MB185450
GEAR KIT, Differential Final Drive
1994
31
MB241979
GEAR KIT, Differential Final Drive
- 1992-93

32
MB569391
SHIM SET, Drive Pinion, Front

33

MB185351
SHIM SET, Drive Pinion, Rear

34
MB837461
WASHER SET, Viscous Coupling, LSD

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1994 Dodge Stealth parts. Parts like Differential are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L. Transmission: 5-Speed Manual Transmission, 6-Speed Automatic Transmission, 6-Speed Manual Transmission.
