2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.BRAKES, PARKING LEVER ASSEMBLY AND CABLES PARKING BRAKE WRANGLER, YJ

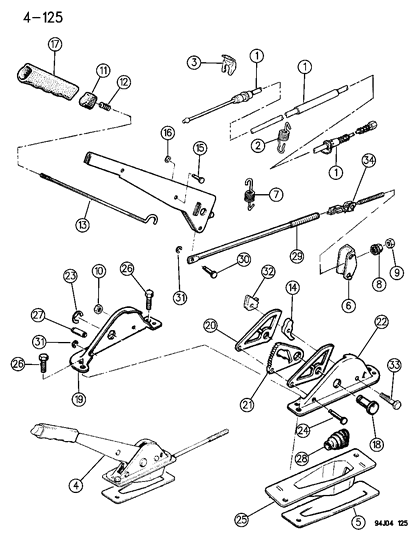

    1994 Jeep Wrangler Lever Assembly & Cables Parking Brake Diagram 1
  • 2.BRAKES, PARKING LEVER ASSEMBLY AND CABLES PARKING BRAKE, FLOOR MOUNT WRANGLER, W/RHD (XDT)

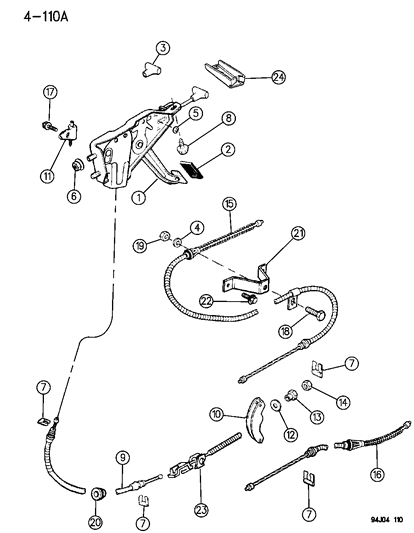

    1994 Jeep Wrangler Lever Assembly & Cables Parking Brake Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    55216598
    CABLE, Parking Brake, Right
    • CABLE, Parking Brake, Right
  • 1
    55216599
    CABLE, Parking Brake, Right
    • CABLE, Parking Brake, Left
  • 1
    52008250
    LEVER ASSEMBLY, Brake
  • 2
    J3220433
    PAD, Pedal
  • 3
    J3217581
    CLIP, Spring
    • Require Quantity: 2
  • 3
    J4487994
    HANDLE
  • 5
    J3208306
    CLIP
  • 5
    32000744
    SEAL
  • 6
    J4005704
    NUT, 5/16-18
  • 7
    J3217581
    CLIP
    • Require Quantity: 4
  • 7
    52006657
    SPRING, Cable to Frame Rail
  • 8
    6502499
    NUT, M8x1.25
  • 9
    52007048
    CABLE, Brake
    • Fitting Vehicle Options: 77
  • 9
    52007049
    CABLE, Brake
    • KDX
    • Fitting Vehicle Options: 78
  • 10
    J0271163
    NUT, Lock
  • 11
    56007167
    SWITCH, Brake Warning Lamp
  • 12
    J4001134
    WASHER
  • 13
    6502499
    NUT, M8x1.25
  • 15
    J3050033
    PIN, Pivot 5-13
  • 16
    J3066150
    CLIP, Retaining
  • 17
    53009151
    HANDLE, Lever
  • 17
    9423951
    SCREW, .190-16x1.00
  • 18
    J3050070
    SHAFT, Housing
  • 19
    J9413447
    NUT, Hex Lock
  • 20
    J5351742
    GROMMET
  • 21
    J5363211
    BRACKET, KDX
  • 22
    S9423777
    BOLT, KDX
    • Require Quantity: 2
  • 23
    J3066162
    RING, Retaining
  • 23
    52007050
    TENSIONER ASSEMBLY
    • TENSIONER ASSEMBLY
  • 23
    6502499
    TENSIONER ASSEMBLY
    • NUT and C/WASHER, Hex W/Lk Insert M8x1.25
  • 24
    J3050094
    PIN, 6-23
  • 25
    52077661
    COVER, Housing
  • 29
    55255656
    ROD, Adjusting
  • 33
    9423951
    SCREW, .190-16x1.00
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1994 Jeep Wrangler parts. Parts like Lever Assembly & Cables Parking Brake are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
