2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.SHEET METAL - BODY WRANGLER SOFT TOP HARDWARE WITH FULL HARD DOORS WRANGLER, YJ

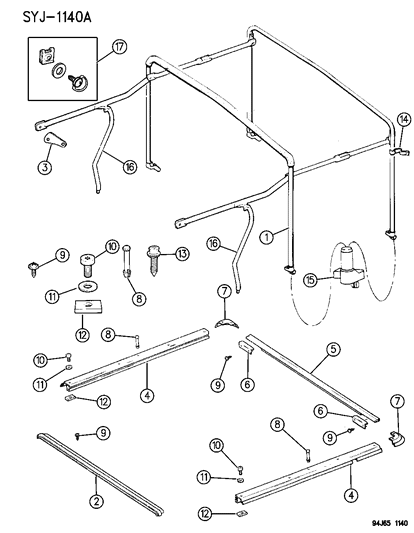

    1994 Jeep Wrangler Soft Top Hardware Diagram 1
  • 2.SHEET METAL - BODY WRANGLER SOFT TOP HARDWARE WITH HALF DOORS WRANGLER, YJ
    1994 Jeep Wrangler Soft Top Hardware Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    5252835
    BOW AND DOOR FRAME ASSEMBLY, (Does not include the vertile door supports, item 16)
  • 1
    55176350
    RETAINER, Windshield
    • 1995
  • 1
    82200921
    RETAINER, Windshield
    • 1994
  • 2
    55176350
    RETAINER, Windshield
    • 1995
  • 2
    82200921
    RETAINER, Windshield
    • 1994
  • 2-3
    55176224
    FLANGE, Door Sealing Front
    • 1995, After 4-3-95, Right
  • 2-3
    55176225
    FLANGE, Door Sealing Front
    • 1995, After 4-3-95, Left
  • 2-3
    55215674
    FLANGE, Door Sealing Front
    • 1994-95, Up to 4-3-95, Right
  • 2-3
    55215675
    FLANGE, Door Sealing Front
    • 1994-95, Up to 4-3-95, Left
  • 4
    83505252
    BOW ASSEMBLY, Front Roof
  • 5
    55011006
    BOW ASSEMBLY, Rear Roof
  • 5
    55174546
    RETAINER, Tailgate Opening
  • 6-7
    55010744
    RAIL, Upper Door Drip, Right
    • RAIL, Upper Door Drip, Right
  • 6-7
    55010745
    RAIL, Upper Door Drip, Right
    • RAIL, Upper Door Drip, Left
  • 7
    55010734
    RETAINER, Rear Corner Belt Rail
    • Require Quantity: 2
  • 8
    55215591
    BAR, Spreader
    • Require Quantity: 2
  • 9
    55015378
    CLIP, (includes stud)
    • Require Quantity: 10
  • 9
    J4003671
    SCREW, .38" Long
    • SCREW, .625" Long
    • Require Quantity: 15
    • Package Quantity: 1
  • 9
    J4007487
    SCREW, .38" Long
    • SCREW, .38" Long
    • Require Quantity: 15
  • 10
    J4007484
    BOLT
    • Require Quantity: 12
  • 11
    55013673
    SLIDER, Drip Rail Lock
    • Require Quantity: 2
  • 12
    J0968155
    PLATE, Tapping
    • Require Quantity: 12
  • 12
    J4007015
    WASHER
    • Require Quantity: 4
  • 13-14
    55018024
    RETAINER, Side Belt Rail
    • Front, KDX w/103" W.B., Right
    • Fitting Vehicle Options: 78
  • 13-14
    55018025
    RETAINER, Side Belt Rail
    • Front, KDX w/103" W.B., Left
    • Fitting Vehicle Options: 78
  • 13-14
    55018028
    RETAINER, Side Belt Rail
    • Rear, KDX, w/103" W.B., Right
    • Fitting Vehicle Options: 78
  • 13-14
    55018029
    RETAINER, Side Belt Rail
    • Rear, KDX, w/103" W.B., Left
    • Fitting Vehicle Options: 78
  • 13-14
    55027330
    RETAINER, Side Belt Rail
    • w/93" W.B, Right
    • Fitting Vehicle Options: 77
    $77.10 $66.94
    1
    Add To Cart
  • 13-14
    55027331
    RETAINER, Side Belt Rail
    • w/93" W.B, Left
    • Fitting Vehicle Options: 77
  • 15
    55174546
    RETAINER, Tailgate Opening
  • 17
    55010734
    RETAINER, Rear Corner Belt Rail
    • Require Quantity: 2
  • 20
    6035024
    BOLT
    • 1995
  • 20
    J4007484
    BOLT
    • 1994
  • 22
    J4007487
    SCREW
    • Require Quantity: 17
  • 23
    83504132
    NUT, Acorn, (Use With Screw 4740356)
    • Require Quantity: 4
  • 27
    J0968155
    PLATE, Tapping
    • Require Quantity: 12
  • J8051615
    STUD, (also included in the above clip)
    • Require Quantity: 10
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1994 Jeep Wrangler parts. Parts like Soft Top Hardware are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
