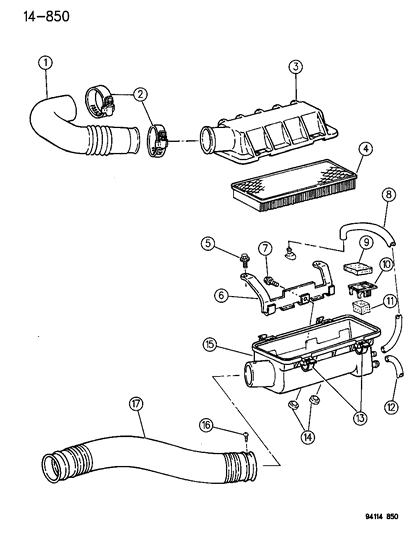

3 diagrams found. Select a diagram to view its particular parts.- 1.FUEL AIR CLEANER 2.5L ENGINE A,J BODY

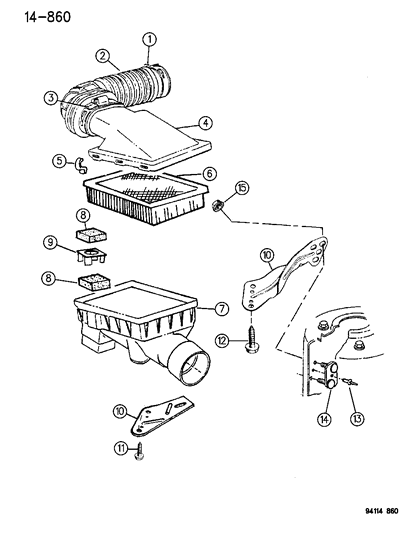

- 2.FUEL AIR CLEANER 3.0L ENGINE

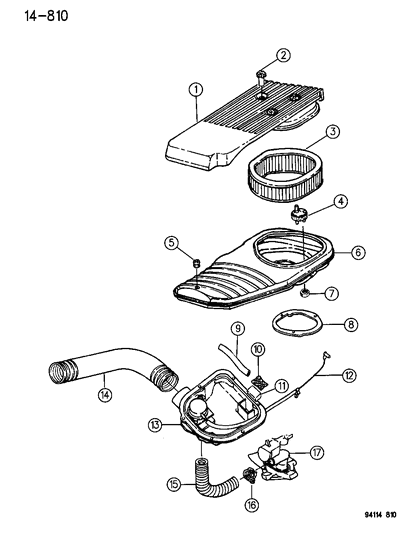

- 3.FUEL AIR CLEANER 3.3L - 3.8L ENGINE
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
6502003
CLAMP, Hose to Throttle Body
1
5277862
COVER, Air Cleaner
1
4300496
HOSE, Air Cleaner to Throttle Body
2
4324162
HOSE, Air Cleaner to Throttle Body
2
3
6502004
CLAMP, Hose to Air Cleaner
4
4458053
COVER, Air Cleaner
4
4
4342765
SENSOR, Air Cleaner Temperature
6
4307307
BRACKET, Air Cleaner to Intake
7
6501214
NUT, Air Cleaner Temperature Sensor
8
4459675FILTER, Crankcase Inlet Air
8
4405108
GASKET, Air Cleaner to Throttle Body
9
4306914
FILTER, PCV System Lower
9
4459676
FRAME, Filter Support
9
10
4458054
BRACKET, Air Cleaner to Frame Bracket
12
4306317
HOSE, Temperature Sensor to Vacuum Motor
14
4612753
PLATE, Air Cleaner Bracket
15
5283198
CLEANER ASSY, Air, Complete
15
4288002
CONNECTOR, Air Heater to Air Cleaner
17
17
4275038DUCT, Air Cleaner Fresh Air- Fitting Vehicle Options: A,J
17
5203338
HEATER, Carburetor Air
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1995
Chrysler LeBaron parts. Parts like Air Cleaner are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L. Transmission: 4-Speed Automatic Transmission.
