3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

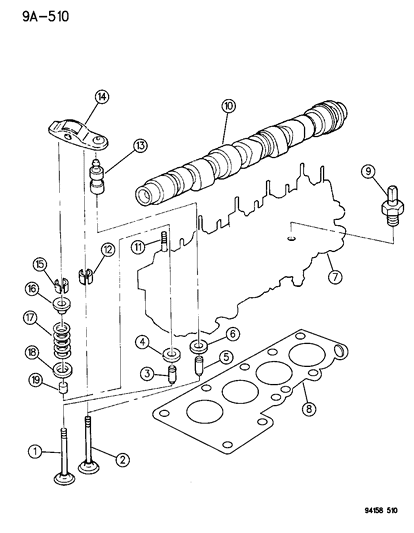

- 1.ENGINE, 4 CYLINDER (2.5L) CAMSHAFT & VALVES 2.5 L ENGINE

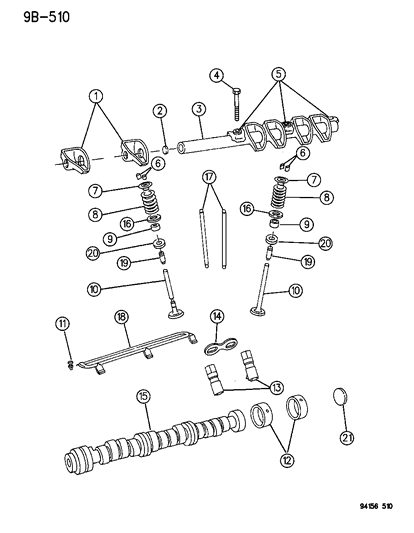

- 2.ENGINE, 6 CYLINDER (3.0L) CAMSHAFT & VALVES 3.0 L ENGINE
- 3.ENGINE, 6 CYLINDER (3.3L) (3.8L) CAMSHAFT AND VALVES 3.3L AND 3.8L ENGINE
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
1
4298143VALVE, Exhaust- 0.15mm O/S
- Require Quantity: 4
1
4298144VALVE, Exhaust- 0.40mm O/S
- Require Quantity: 4
1
2
4298138VALVE, Intake, w/EDM Engine- 0.15mm O/S
- Require Quantity: 4
2
4298139VALVE, Intake, w/EDM Engine- 0.40mm O/S
- Require Quantity: 4
2
4298140VALVE, Intake, w/EDM Engine- 0.80mm O/S
- Require Quantity: 4
2
2
4323245VALVE, Intake, w/EDM Engine- 0.15MM O/S (w/FLEX FUEL ENGINE)
- Require Quantity: 4
2
4323246VALVE, Intake, w/EDM Engine- 0.40MM O/S (w/FLEX FUEL ENGINE)
- Require Quantity: 4
2
4323247VALVE, Intake, w/EDM Engine- 0.80MM O/S (w/FLEX FUEL ENGINE)
- Require Quantity: 4
3
MD125669SPRING, Rocker Shaft
5
5
6 6
MD145656
CAMSHAFT ASSEMBLY, Lt.
7
MD151382ADJUSTER, Rocker Arm Lash
8
9
MD061895LOCK, Valve Spring Retainer
9 9
4105366SEAL, Valve Guide Standard- 0.15MM O/S Green
- Require Quantity: 12
9
4105367SEAL, Valve Guide Standard- 0.40MM O/S Yellow
- Require Quantity: 12
9
4105368SEAL, Valve Guide Standard- 0.80MM O/S Red
- Require Quantity: 12
10
4387850
CAMSHAFT, Standard Journals
MD066498RETAINER, Valve Spring
10 4448053VALVE, Intake Standard- 0.15MM O/S
- Require Quantity: 6
4448054VALVE, Intake Standard- 0.40MM O/S
- Require Quantity: 6
4448055VALVE, Intake Standard- 0.80MM O/S
- Require Quantity: 6
4621116VALVE, Intake Standard- VALVE, Exhaust Standard
- Require Quantity: 6
4621117VALVE, Intake Standard- 0.15MM O/S
- Require Quantity: 6
4621118VALVE, Intake Standard- 0.40MM O/S
- Require Quantity: 6
4621119VALVE, Intake Standard- 0.80MM O/S
- Require Quantity: 6
4621762VALVE, Intake Standard- w/CNG 3.3L Standard
- Require Quantity: 6
6500136SCREW and WASHER, Yoke Retainer Att.
11
MD073398SPRING, Inlet and Exhaust Valve
MD096944SEAT, Valve Spring
13
4387677TAPPET, Valve (Std) .9040/.9035- TAPPET, Valve (Std) .9040/.9035
- Require Quantity: 12
13
13
13
4387680TAPPET, Valve (Std) .9040/.9035- (.030 O/Size) .9340/.9335
- Require Quantity: 12
14
4397767ROCKER, Valve (Roller)
14 14
14
15
15
15
16
5203578RETAINER, Valve Spring
16
17
18
18
19 19
4105366SEAL, Valve Guide, w/EDM Engine- 0.15mm O/S (Green)
- Require Quantity: 8
19
4105367SEAL, Valve Guide, w/EDM Engine- 0.40mm O/S (Yellow)
- Require Quantity: 8
19
4105368SEAL, Valve Guide, w/EDM Engine- 0.80mm O/S (Red)
- Require Quantity: 8
19
4667243SEAL, Valve Guide, w/EDM Engine- Standard (w/FLEX FUEL ENGINE)
- Require Quantity: 8
19
4667376SEAL, Valve Guide, w/EDM Engine- 0.15mm O/S (w/FLEX FUEL ENGINE)
- Require Quantity: 8
19
4667377SEAL, Valve Guide, w/EDM Engine- 0.40mm O/S (w/FLEX FUEL ENGINE)
- Require Quantity: 8
19
4667378SEAL, Valve Guide, w/EDM Engine- 0.80mm O/S (w/FLEX FUEL ENGINE)
- Require Quantity: 8
21
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1995
Dodge Caravan parts. Parts like Camshaft & Valves are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L, Electric Motor. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 7-Speed Automatic Transmission.
