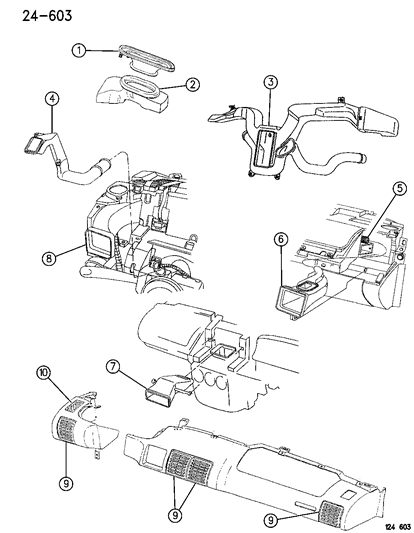

Diagram (1 of 1): HEATER & A/COND. AIR DISTRIBUTION DUCTS, OUTLETS PL BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
5264656DUCT ASSEMBLY, Defroster, Upper- SEAL, Duct, Defroster, Upper
1
LC87PF8DUCT ASSEMBLY, Defroster, Upper 1
LC87SC8DUCT ASSEMBLY, Defroster, Upper
5264569DUCT ASSEMBLY, Defroster, Lower- DUCT ASSEMBLY, Defroster, Lower
5264703DUCT ASSEMBLY, Defroster, Lower- EXPORT RHD
- Fitting Vehicle Options: Z
3
5264541DUCT, Outlet, Distribution/Demister- DUCT, Outlet, Distribution/Demister
5264702DUCT, Outlet, Distribution/Demister- EXPORT RHD
- Fitting Vehicle Options: Z
5264575ADAPTOR, Demister, Left 5264705ADAPTOR, Demister, Left- Right, EXPORT RHD
- Fitting Vehicle Options: Z
5
5264574
HOSE, Demister, Right
6
5264610DUCT, Outlet/Demister, Right- DUCT, Outlet/Demister, Right
6
5264706DUCT, Outlet/Demister, Right- Left, EXPORT RHD
- Fitting Vehicle Options: Z
7
5264540DUCT, Outlet, Center 5264701DUCT, Outlet, Center- EXPORT RHD
- Fitting Vehicle Options: Z
8
5264609DUCT, Outlet, Left 8
5264707DUCT, Outlet, Left- Right, EXPORT RHD
- Fitting Vehicle Options: Z
9
9
LF74PF6OUTLET ASSEMBLY- Medium Driftwood
- Require Quantity: 3
9
LF74SC3OUTLET ASSEMBLY- Mist Gray
- Require Quantity: 3
9
LF74SKBOUTLET ASSEMBLY- Dark Camel Tan
- Require Quantity: 3
10
10
10
10
QC86SC3GRILLE, Demister- Gray, Right, RHD, EUROPE
- Fitting Vehicle Options: 42
10
QC86SF6GRILLE, Demister- Driftwood, Right, RHD, EUROPE
- Fitting Vehicle Options: 42
10
QC87SC3GRILLE, Demister- Gray, Left, RHD, EUROPE
- Fitting Vehicle Options: 42
10
QC87SF6GRILLE, Demister- Driftwood, Left, RHD, EUROPE
- Fitting Vehicle Options: 42
5264604
SEAL, Duct, Defroster, Lower
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1996
Dodge Neon parts. Parts like Air Distribution Ducts, Outlets are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.0L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
