2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

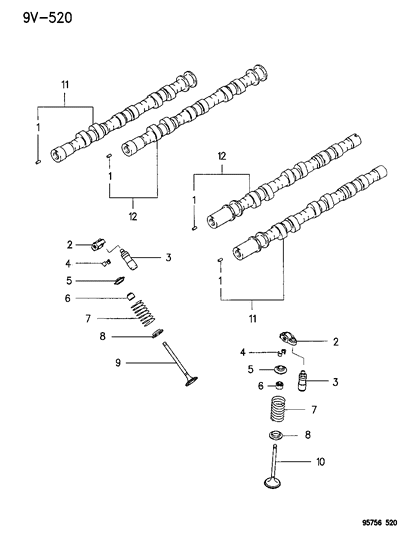

- 1.ENGINE, 6 CYLINDER (3.0L) CAMSHAFT AND VALVE 3.0L ENGINE, DOHC STEALTH

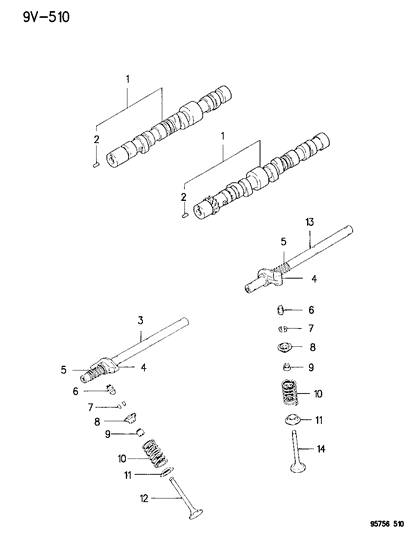

- 2.ENGINE, 6 CYLINDER (3.0L) CAMSHAFT AND VALVE 3.0L ENGINE, SOHC STEALTH
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
1
MD156472PIN, Dowel, (4x9.8)
2
MD150266ARM, Rocker, Inlet and Exhaust Valve
MD149309ADJUSTER, Rocker Arm Lash
4
4
5
MD125669SPRING, Rocker Shaft
MD151382ADJUSTER, Rocker Arm Lash
7
MD061895LOCK, Valve Spring Retainer
7
MD184342SPRING, Inlet and Exhaust Valve
MD066498RETAINER, Valve Spring
8
9
MD073398SPRING, Inlet and Exhaust
11
MD192012CAMSHAFT, Exhaust- Rt.
- Fitting Vehicle Options: T,P
11
MD192013CAMSHAFT, Exhaust- Lt.
- Fitting Vehicle Options: T,P
11
MD192018CAMSHAFT, Exhaust- Rt.
- Fitting Vehicle Options: U
11
MD192019CAMSHAFT, Exhaust- Lt.
- Fitting Vehicle Options: U
MD096944SEAT, Valve Spring
12
14
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1996
Dodge Stealth parts. Parts like Camshaft & Valves are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L. Transmission: 5-Speed Manual Transmission, 6-Speed Automatic Transmission, 6-Speed Manual Transmission.
