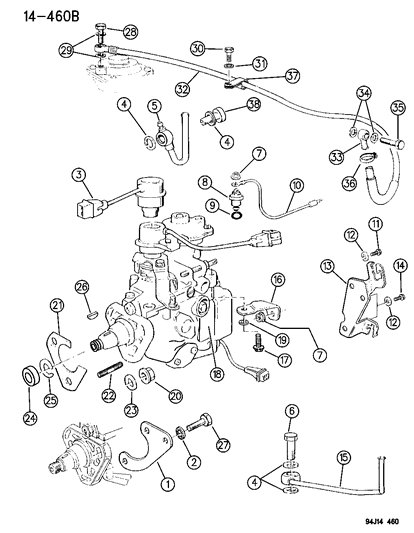

Diagram (1 of 1): FUEL FUEL INJECTION PUMP 2.5L DIESEL ENGINE XJ BODY

1996 Jeep Cherokee Fuel Injection Pump Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4778999
STIFFENER, Injection Pump

2
4723223
WASHER

3
4723269
POTENTIOMETER
1994
3
4797800
POTENTIOMETER
- 1995-96

4
4720703
WASHER
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 6106000AA
$8.80 $5.90
1
Add To Cart

5
4778994
ADAPTOR, Spill Return Pump
1994-95
5
4864579
ADAPTOR, Spill Return Pump
- 1996

6
4720367
BOLT, Oil Pressure Transducer
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 4720367AA
$11.85 $8.06
1
Add To Cart

7
4778996
NUT

8
4723264
SOLENOID, Fuel Shutoff

9
4723266
O-RING, Solenoid

10
4741820
LEAD, Solenoid

11
4798309
SCREW

12
4723168
WASHER
- Require Quantity: 3
- Package Quantity: 1

13
4778997
BRACKET, Electrical Connectors

14
4720372
BOLT

15
4796399
TUBE, Fuel Feed to Pump, w/Wire Mesh

16
4797752
BRACKET, Cable Support

17
4728186
SCREW

18
4778995
PUMP, Injection

19
4720305
WASHER

20
4778961
NUT
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 68031585AA
$2.55 $1.70
1
Add To Cart

21
4720196
GASKET, Pump

22
4723241
STUD
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 68050415AA
$1.75 $1.21
1
Add To Cart

23
4720193
WASHER

24
4723271
NUT

25
4723272
WASHER

26
4720198
KEY, Pump

27
4723187
SCREW
1994-95
27
4864559
SCREW
- 1996

28
4723183
BOLT, Banjo

29
4720554
WASHER
- Require Quantity: 3
- Package Quantity: 1

30
4720372
BOLT

31
4723195
WASHER

32
4778955
PIPE, Manifold to Injector Pump Sensor

33
4778958
CONNECTOR, Banjo

34
4720713
WASHER
- Require Quantity: 2
- Package Quantity: 1
$6.90 $4.61
1
Add To Cart

35
4762717
BOLT, Banjo

36
4778962
CLIP, Hose

37
4720368
CLIP

38
4797785
VALVE, Pressure Relief
1994-95
38
4874444
VALVE, Pressure Relief
- 1996

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1996 Jeep Cherokee parts. Parts like Fuel Injection Pump are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 4 Cyl 2.5L Diesel, 6 Cyl 4.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
