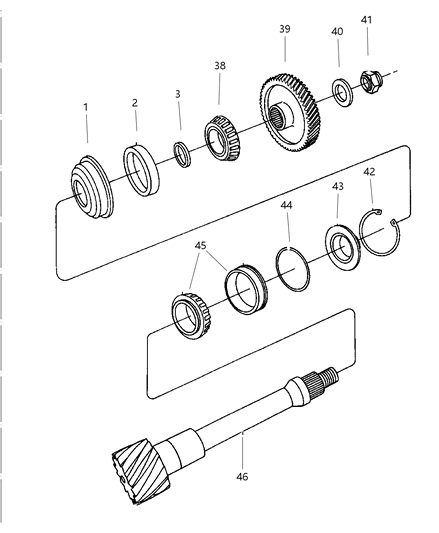

Diagram (1 of 1): Automatic Transaxle 4 Speed Shaft Transfer Automatic Transaxle,(DGL)

1997 Chrysler Sebring Shaft - Transfer Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4412273
RETAINER Transfer Gear Bearing

2
4504041
BEARING CUP Transfer Shaft
$19.75 $13.39
1
Add To Cart

3
4505570
SPACER Transfer Shaft 3.22mm

38
4504042
BEARING PACKAGE Transfer Shaft
$21.18 $16.39
1
Add To Cart

39
4713444
GEAR PACKAGE Output And Transfer Shaft

40
6501833
WASHER Coned M22.6x45x3.42
$8.45 $5.68
1
Add To Cart

41
6502611
LOCK NUT M22x1.50

42
6501936
SNAP RING
$13.25 $8.91
1
Add To Cart

43
4471869
BAFFLE Transfer Shaft
$7.15 $4.77
1
Add To Cart

44
6501768
O RING Transfer Shaft Bearing Retainer ATX
$25.50 $17.25
1
Add To Cart

45
4856911
BEARING PACKAGE Transfer Shaft
$229.00 $150.93
1
Add To Cart

46
4531976
SHAFT Transfer Gear

4412806
SPACER Output Shaft 3.46mm

4412807
SPACER Output Shaft 3.50mm

4412808
SPACER Output Shaft 3.54mm

4412809
SPACER Output Shaft 3.58mm

4412810
SPACER Output Shaft 3.62mm

4412811
SPACER Output Shaft 3.66mm

4412812
SPACER Output Shaft 3.70mm

4412813
SPACER Output Shaft 3.74mm

4412814
SPACER Output Shaft 3.78mm

4412815
SPACER Output Shaft 3.82mm
- Replaced By: 4412815AB
$3.95 $2.67
1
Add To Cart

4412816
SPACER Output Shaft 3.86mm

4412817
SPACER Output Shaft 3.90mm

4412818
SPACER Output Shaft 3.94mm

4412819
SPACER Output Shaft 3.98mm

4412820
SPACER Output Shaft 4.02mm

4412821
SPACER Output Shaft 4.06mm

4412822
SPACER Output Shaft 4.10mm

4412823
SPACER Output Shaft 4.14mm

4412824
SPACER Output Shaft 4.18mm

4412825
SPACER Output Shaft 4.22mm

4412826
SPACER Output Shaft 4.26mm

4412827
SPACER Output Shaft 4.30mm

4412828
SPACER Output Shaft 4.34mm
- Replaced By: 4412828AB
$14.50 $9.76
1
Add To Cart

4412829
SPACER Output Shaft 4.38mm

4412830
SPACER Output Shaft 4.42mm

4412801
SPACER Transfer Shaft 3.26mm

4412802
SPACER Transfer Shaft 3.30mm

4412803
SPACER Transfer Shaft 3.34mm

4412804
SPACER Transfer Shaft 3.38mm

4412831
SPACER Transfer Shaft 4.46mm

4412832
SPACER Transfer Shaft 4.50mm

4412833
SPACER Transfer Shaft 4.54mm

4412835
SPACER Transfer Shaft 4.62mm

4505588
SPACER Transfer Shaft 4.66mm

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1997 Chrysler Sebring Convertible parts. Parts like Shaft - Transfer are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.0L, 4 Cyl 2.4L, 6 Cyl 2.5L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
