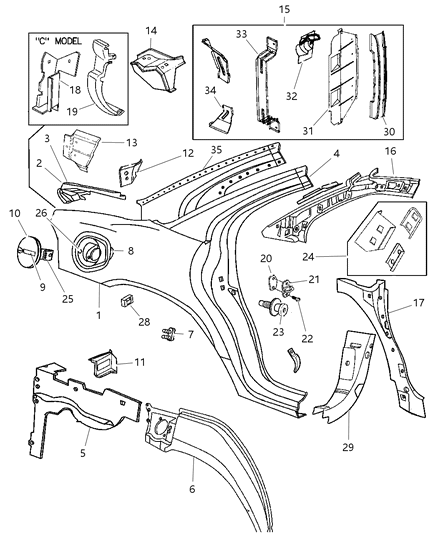

Diagram (1 of 1): Body Sheet Metal Except Doors Quarter Panel
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
4756010THROUGH Deck Opening 2
4
4624582REINFORCEMENT Quarter Panel 4
4624583REINFORCEMENT Quarter Panel
4646082PANEL Quarter Inner 4646083PANEL Quarter Inner
4696458WHEELHOUSE Rear Outer 6
4696543
PLATE Fuel Filler Door Hinge
4646530
REINFORCEMENT Fuel Tube
4583396EXTENSION Quarter Panel- Right Quarter Panel - Lower
4583397EXTENSION Quarter Panel- Left Quarter Panel - Lower
4646008FILLER Rear Quarter Extension- Right Quarter Extension Lower
4646009FILLER Rear Quarter Extension- Left Quarter Extension Lower
4624768FILLER Quarter Pnl. To Extension- Right (Pocket For Tail Lamp
4624769FILLER Quarter Pnl. To Extension- Left (Pocket For Tail Lamp

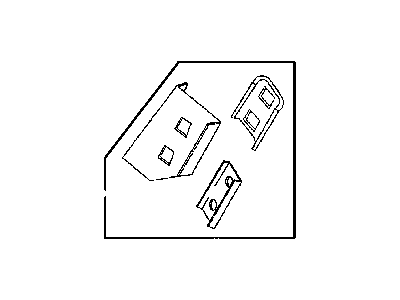

4756004EXTENSION Quarter Panel 4756005EXTENSION Quarter Panel
15
4696484PANEL Quarter Inner 4696485PANEL Quarter Inner
4756534PANEL Quarter Inner 4756535PANEL Quarter Inner
20 20
22
4696937STRIKER Door Interlock
25
4756019
SPRING Fuel Filler Door
4416406
BUMPER AND SUPPORT
28
30
32
35
4696462REINFORCEMENT Quarter Panel To Wheelhouse 35
4696463REINFORCEMENT Quarter Panel To Wheelhouse
6502879
STUD M6x1.00x15.00
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1997
Dodge Intrepid parts. Parts like Quarter Panel are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.3L, 6 Cyl 3.5L. Transmission: 4-Speed Automatic Transmission.
