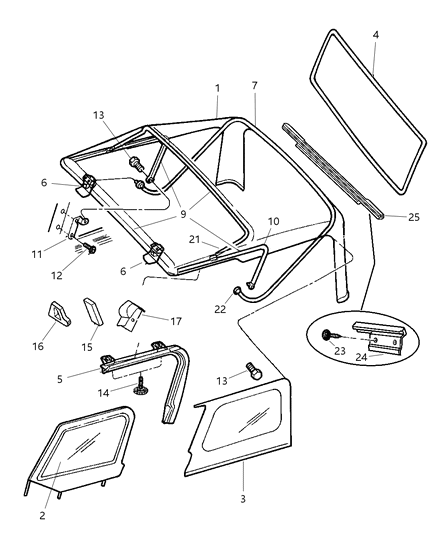

Diagram (1 of 1): Body Sheet Metal Except Doors Soft Top And Windows Wrangler

1997 Jeep Wrangler Soft Top & Windows Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
5FM99TTB
COVER Soft Top
Spice
1
5FM99TW1
COVER Soft Top
- White
1
5FM99TX7
COVER Soft Top
- Black

2
5FV22TTB
WINDOW Half Door Soft Top
Right Spice
2
5FV22TW1
WINDOW Half Door Soft Top
- Right White
2
5FV22TX7
WINDOW Half Door Soft Top
- Right Black
2
5FV23TTB
WINDOW Half Door Soft Top
- Left Spice
2
5FV23TW1
WINDOW Half Door Soft Top
- Left White
2
5FV23TX7
WINDOW Half Door Soft Top
- Left Black

3
5EZ00TTB
WINDOW Quarter
Right Spice
3
5EZ00TW1
WINDOW Quarter
- Right White
3
5EZ00TX7
WINDOW Quarter
- Right Black
3
5EZ01TTB
WINDOW Quarter
- Left Spice
3
5EZ01TW1
WINDOW Quarter
- Left White
3
5EZ01TX7
WINDOW Quarter
- Left Black

4
5EZ03TTB
WINDOW Tailgate
Spice
4
5EZ03TW1
WINDOW Tailgate
- White
4
5EZ03TX7
WINDOW Tailgate
- Black

5

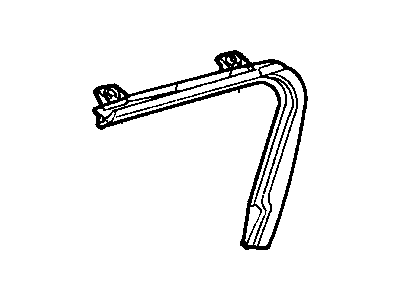

55175858
FRAME Door Glass
Right
5
55175859
FRAME Door Glass
- Left

6
55176287
LATCH AND BASE Folding Top
- Require Quantity: 2

7
55176442
BOW Folding Top Number 3
With Pivot, Up to 12-3-96
7
55176442AB
BOW Folding Top Number 3
- With Pivot, After 12-3-96

9
4874281
BOW Folding Top Number 1

10
55176206
BUMPER Rubber
- Require Quantity: 2
- Package Quantity: 1

11
55175803
BRACKET Soft Top Bow 1 & 3
Left
$23.25 $18.27
1
Add To Cart
11
55175802
BRACKET Soft Top Bow 1 & 3
- Right

12
6503267
SCREW Round Head M6x1x25
- Require Quantity: 4
- Package Quantity: 1

13
6035797
SCREW Shoulder
- Require Quantity: 4

14
55176198
PIN Release Lever
- Require Quantity: 2
- Package Quantity: 1

15

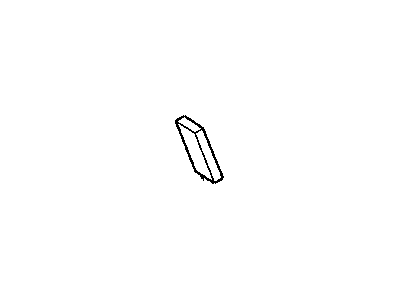

55176304
SEAL Door Also Serviced in Frame Door Glass
Right
15
55176305
SEAL Door Also Serviced in Frame Door Glass
- Left

16
55176714AA
SEAL A-Pillar Blocker
Right
16
55176715AA
SEAL A-Pillar Blocker
- Left

17
55176722AA
SEAL Header Top And Side Rail
Right
17
55176723AA
SEAL Header Top And Side Rail
- Left

21
55175813
KNUCKLE Rear
- Require Quantity: 2

22
55176064
KNUCKLE Rear
- Require Quantity: 2

24
55176470
CLIP Tailgate Opening
Right Up to 1-6-97
$26.76 $21.03
1
Add To Cart
24
55176471
CLIP Tailgate Opening
- Left Up to 1-6-97
24
55176738AA
CLIP Tailgate Opening
- Right After 1-6-97
24
55176739AA
CLIP Tailgate Opening
- Left After 1-6-97
$0.00

25
55176232
RETAINER Soft Top Rail
Up to 1/6/97
25
55176736AA
RETAINER Soft Top Rail
- After 1/6/97

5FZ85BX7AA
BOOT Folding Top
Black
5FZ85LTBAA
BOOT Folding Top
- Spice
5FZ85SW1AA
BOOT Folding Top
- White

4897190AA
PULL STRAP KIT
$61.68 $48.47
1
Add To Cart

4778470

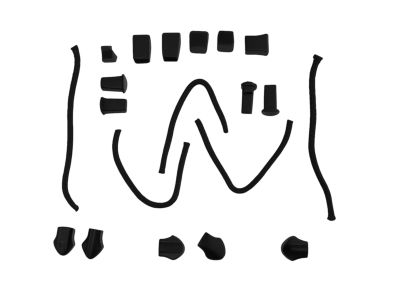

SNAP KIT Soft Top

55176444
STRAP Retaining
- Require Quantity: 2
- Package Quantity: 1

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1997 Jeep Wrangler parts. Parts like Soft Top & Windows are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
