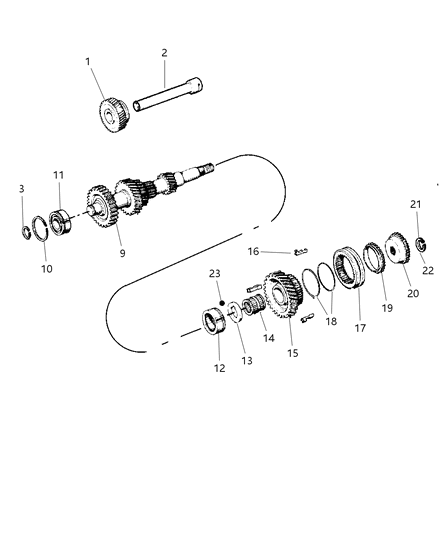

Diagram (1 of 1): Manual Transmission 5 Speed Reverse Idler AX 15 (DDQ)

1999 Jeep Wrangler Reverse Idler Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
5252084
GEAR Reverse Idler

2
83506258
IDLER SHAFT Transmission
$47.84 $37.60
1
Add To Cart

3
83506081
SNAP RING
STAMPED A (X=2.05mm/2.10mm)
3
83506082
SNAP RING
- STAMPED B (X=2.10mm/2.15mm)
3
83506083
SNAP RING
- STAMPED C (X=2.15mm/2.20mm)
3
83506084
SNAP RING
- STAMPED D (X=2.20mm/2.25mm)
3
83506085
SNAP RING
- STAMPED E (X=2.25mm/2.30mm)

9
4636371
GEAR Countershaft
$511.90 $402.27
1
Add To Cart

10
83506220
SNAP RING

11
83506259
BEARING Countershaft

12
83506080
NEEDLE BEARING Countershaft
$130.09 $99.11
1
Add To Cart

13
83506245
THRUST WASHER Fifth Gear

14
83506079
NEEDLE BEARING Fifth Gear

15
4637527
GEAR Countershaft Fifth

16
4637532
KEY Synchronizer

17

83506257
SLEEVE Synchronizer

18
4637534
SPRING Synchronizer

19
4637533
STOP RING Synchronizer

20
83506242
GEAR Fifth Splined

21
83506260
SNAP RING
STAMPED A (X=2.80mm/2.85mm)
21
83506261
SNAP RING
- STAMPED B (X=2.85mm/2.90mm)
21
83506262
SNAP RING
- STAMPED C (X=2.90mm/2.95mm)
21
83506263
SNAP RING
- STAMPED D (X=2.95mm/3.00mm)
21
83506264
SNAP RING
- STAMPED E (X=3.00mm/3.05mm)
21
83506265
SNAP RING
- STAMPED F (X=3.05mm/3.10mm)
21
83506266
SNAP RING
- STAMPED G (X=3.05mm/3.15mm)
21
83506267
SNAP RING
- STAMPED H (X=3.154mm/3.20mm)

22
4874503
RING Snap
STAMPED A (X=2.80mm/2.85mm)
22
4874504
RING Snap
- STAMPED B (X=2.85mm/2.90mm)
$9.84 $7.73
1
Add To Cart
22
4874505
RING Snap
- STAMPED C (X=2.90mm/2.95mm)
22
4874506
RING Snap
- STAMPED E (X= 2.95mm/3.00mm)
22
4874507
RING Snap
- STAMPED F (X=3.00mm/3.05mm)
22
4874508
RING Snap
- STAMPED G (X=3.05mm/3.10mm)
22
4874509
RING Snap
- STAMPED H (X=3.10m/3.15mm)

23
83500573
BALL Reverse

83500607
SNAP RING Input Shaft 2.10mm

83500608
SNAP RING Input Shaft 2.15mm

83500609
SNAP RING Input Shaft 2.20mm

83500610
SNAP RING Input Shaft 2.25mm

83500611
SNAP RING Input Shaft 2.30mm

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1999 Jeep Wrangler parts. Parts like Reverse Idler are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
