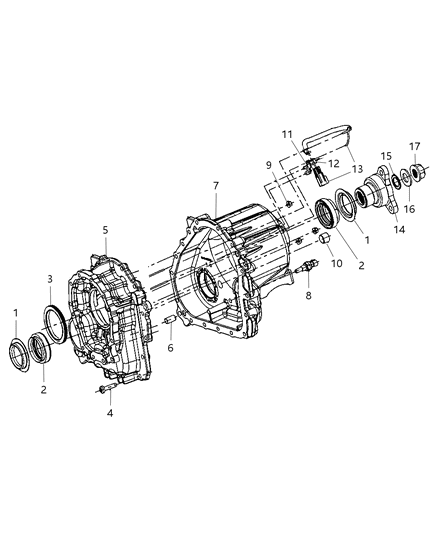

Diagram (1 of 1): Power Transfer Unit; Transfer Case Case And Related Parts Borg Warner 44-40 [DKB]

2009 Chrysler 300 Case & Related Parts Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
68055318AA
SHIELD Dust
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 68055318AB
$8.95 $6.07
1
Add To Cart

2
68055262AA
SEAL Output
Front Output Shaft
Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, EZD - 8 Cyl 5.7L Hemi VCT MDS, EZH - 8 Cyl 5.7L HEMI MDS VCT, F - BRAND AWD
$37.75 $24.05
1
Add To Cart
2
68055336AA
SEAL Output
- Rear Output Flange
- Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, EZD - 8 Cyl 5.7L Hemi VCT MDS, F - BRAND AWD

3

68395010AA
SEAL Input
$44.10 $29.91
1
Add To Cart

4
68055337AA
BOLT
- Require Quantity: 16
- Package Quantity: 1
$6.65 $4.43
1
Add To Cart

5
68055258AA
CASE HALF Front
Includes: Input Seal, Output Seal, Input Gear Bearing And Front Output Shaft Bearing / With Transfer Case Stamp Number [04593838AC]
Includes: Input Seal, Output Seal, Input Gear Bearing And Front Output Shaft Bearing / With Transfer Case Stamp Number [04593847AC]
Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, EZD - 8 Cyl 5.7L Hemi VCT MDS, EZH - 8 Cyl 5.7L HEMI MDS VCT, F - BRAND AWD
Replaced By: 68055258AB
$519.00 $354.54
1
Add To Cart
5
68101734AA
CASE HALF Front
- Includes: Input Seal, Output Seal, Input Gear Bearing And Front Output Shaft Bearing / With Transfer Case Stamp Number [68088811AA]
- Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, F - BRAND AWD
$586.00 $379.74
1
Add To Cart

6
68055335AA
DOWEL Transfer Case
- Require Quantity: 2
- Package Quantity: 1
$4.60 $3.06
1
Add To Cart

7
68055340AA
CASE Transfer Rear
Includes: Rear Ouput Shaft Seal, Rear Output Bearings And Dowel Pins / With Transfer Case Stamp Number [04593838AC]
Includes: Rear Ouput Shaft Seal, Rear Output Bearings And Dowel Pins / With Transfer Case Stamp Number [04593847AC]
Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, EZD - 8 Cyl 5.7L Hemi VCT MDS, EZH - 8 Cyl 5.7L HEMI MDS VCT, F - BRAND AWD
$449.00 $352.36
1
Add To Cart
7
68101737AA
CASE Transfer Rear
- Includes: Rear Ouput Shaft Seal, Rear Output Bearings And Dowel Pins / With Transfer Case Stamp Number [68088811AA]
- Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, F - BRAND AWD
$575.00 $378.40
1
Add To Cart

8

68055357AA
SENSOR Temperature
$52.15 $35.44
1
Add To Cart

9
68055332AA
NUT Hex
- Require Quantity: 3
- Package Quantity: 1
$1.45 $0.98
1
Add To Cart

10
68055351AA
PLUG Oil Fill
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 68055351AB
$19.35
1
Add To Cart

11
68055360AA
CLIP Wiring
$4.25 $2.84
1
Add To Cart

12
68055362AA
WEDGE Wiring
$8.45 $5.68
1
Add To Cart

13

68055358AA
CONNECTOR ASSEMBLY Electrical
$17.90 $12.14
1
Add To Cart

14
68055338AA
FLANGE Driveshaft Yoke
Includes Dust Shield / With Transfer Case Stamp Number [04593838AC]
Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, F - BRAND AWD
14
68055339AA
FLANGE Driveshaft Yoke
- Includes Dust Shield / With Transfer Case Stamp Number [04593847AC]
- Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EZD - 8 Cyl 5.7L Hemi VCT MDS, EZH - 8 Cyl 5.7L HEMI MDS VCT, F - BRAND AWD
14
68101992AA
FLANGE Driveshaft Yoke
- Includes Dust Shield / With Transfer Case Stamp Number [68088811AA]
- Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, F - BRAND AWD

15
68055343AA
SEAL Ring
$7.70 $5.16
1
Add To Cart

16
68055348AA
THRUST WASHER
$9.25 $6.24
1
Add To Cart

17
68055349AA
NUT
Mounting Rear Output Flange / With Transfer Case Stamp Number [04593837AC]
Mounting Rear Output Flange / With Transfer Case Stamp Number [04593838AC]
Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, EZD - 8 Cyl 5.7L Hemi VCT MDS, EZH - 8 Cyl 5.7L HEMI MDS VCT, F - BRAND AWD
$21.85 $14.70
1
Add To Cart
17
68101738AA
NUT
- Rear Output Flange / With Transfer Case Stamp Number [68088811AA]
- Fitting Vehicle Options: 48 - SEDAN TYPE #8, DGJ - 5-Speed Automatic Transmission W5A580, EGG - 6 Cyl 3.5L High Output MPI, F - BRAND AWD
$28.05 $19.01
1
Add To Cart

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 2009 Chrysler 300 parts. Parts like Case & Related Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 2.7L, 6 Cyl 3.5L, 8 Cyl 5.7L, 8 Cyl 6.1L. Transmission: 4-Speed Automatic Transmission, 5-Speed Automatic Transmission.
