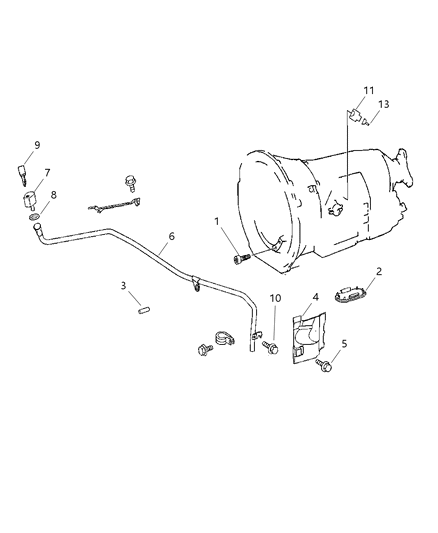

Diagram (1 of 1): NAG1; W5A380; 5-Speed; Automatic Transmission Oil Fill Tube and Related Parts [DGZ]

2009 Dodge Sprinter 2500 Oil Filler Tube & Related Parts Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
5137660AA
SCREW
Intermediate Flange to Transmission Case [M8x80]
Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, L - LOWLINE
Require Quantity: 2
Package Quantity: 1
1
5191821AA
SCREW
- Flywheel to Torque Converter [M10x31]
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, L - LOWLINE
- Require Quantity: 6
- Package Quantity: 1
- Replaced By: 68080124AA
1
6104024AA
SCREW
- Intermediate Flange to Transmission Case [M8x25]
- Fitting Vehicle Options: 13 - 119 WB, 15 - VAN WHEEL BASE, 17 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 53 - 119 WB, 55 - WAGON WHEEL BASE 5, 6 - Lt. Duty DODGE 4WD, L - LOWLINE
- Require Quantity: 8
- Package Quantity: 1
- Replaced By: 6509967AA
$15.65 $10.61
1
Add To Cart

2
68013686AA

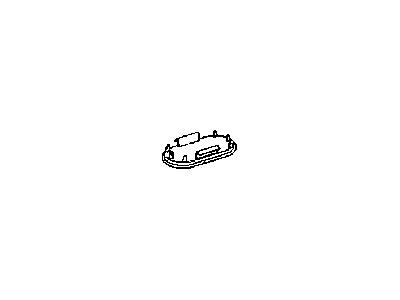

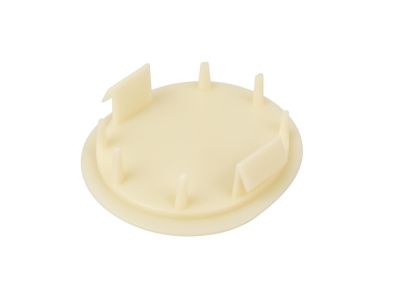

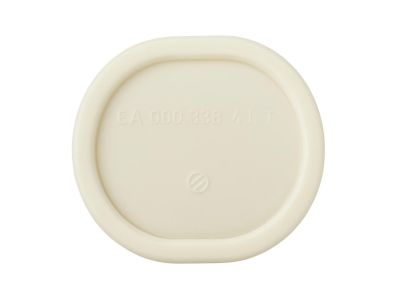

COVER
$47.00 $4.19
1
Add To Cart

3
5080447AA
PIN

4
68005202AA
SHIELD Heat

5
6104681AA

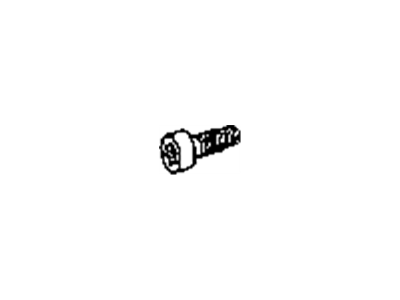

BOLT Torx Head M6.0X1.00X14.00
- Replaced By: 5174467AA
$12.15 $8.37
1
Add To Cart

6

68013688AA

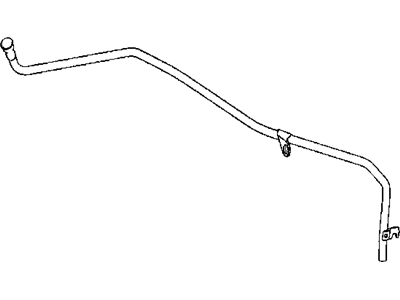

TUBE

7

53013549AA
CAP Oil Filler
$19.00 $12.94
1
Add To Cart

8

5101154AA
SEAL Oil Filler Tube

9

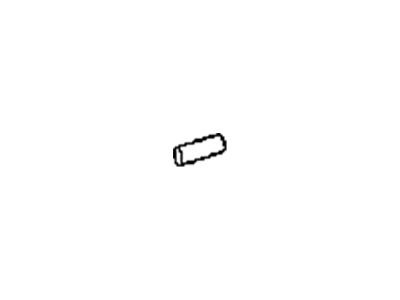

5093746AA
PIN
$5.85 $3.97
1
Add To Cart

10
6104681AA
BOLT Torx Head M6.0X1.00X14.00
- Replaced By: 5174467AA
$12.15 $8.37
1
Add To Cart

11
5120265AA
CONNECTOR
- Replaced By: 5120265AB
$73.95 $50.22
1
Add To Cart

13

5103882AA
TERMINAL
$19.35
1
Add To Cart

5120884AA
CAP

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 2009 Dodge Sprinter 2500 parts. Parts like Oil Filler Tube & Related Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L Diesel. Transmission: 5-Speed Automatic Transmission.
