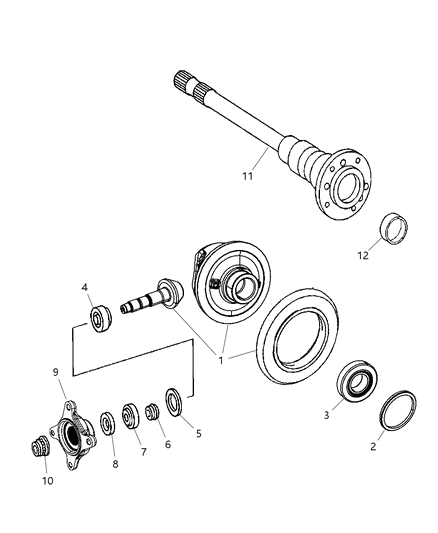

Diagram (1 of 1): Rear Wheel Drive; Differential and Drive Line Differential Assembly Rear Internal Differential Parts [741.412]

2009 Dodge Sprinter 2500 Differential Assembly Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
68019087AA
DIFFERENTIAL Rear Axle
With [DMH] / With Special Version Code [35-504232 / 10] Or [35-504004 / 29] / See Note
$2450.00 $1925.54
1
Add To Cart
1
68019086AA
DIFFERENTIAL Rear Axle
- With [DMF] / With Special Version Code [35-504232 / 09 ] Or [35-504004 / 28] / See Note

2
68018935AA
WASHER Differential
With [DMF] / [4.90MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
With [DMH] / [4.90MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
Require Quantity: 3
Package Quantity: 1
2
68018936AA
WASHER Differential
- With [DMF] / [5.00MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.00MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 68064536AA
$12.15 $10.80
1
Add To Cart
2
68018938AA
WASHER Differential
- With [DMF] / [5.10MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.10MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
2
68018940AA
WASHER Differential
- With [DMF] / [5.20MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.20MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
2
68018948AA
WASHER Differential
- With [DMF] / [5.30MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.30MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
2
68018949AA
WASHER Differential
- With [DMF] / [5.40MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.40MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 68064544AA
$13.45 $9.30
1
Add To Cart
2
68018961AA
WASHER Differential
- With [DMF] / [5.50MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.50MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
$12.10 $10.48
1
Add To Cart
2
68018962AA
WASHER Differential
- With [DMF] / [5.60MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.60MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 68064548AA
$11.35 $7.85
1
Add To Cart
2
68018963AA
WASHER Differential
- With [DMF] / [5.70MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.70MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
2
68018964AA
WASHER Differential
- With [DMF] / [5.80MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.80MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
2
68018965AA
WASHER Differential
- With [DMF] / [5.90MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [5.90MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
2
68018966AA
WASHER Differential
- With [DMF] / [6.00MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [6.00MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
$10.80 $9.37
1
Add To Cart
2
68018969AA
WASHER Differential
- With [DMF] / [6.10MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [6.10MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
2
68018971AA
WASHER Differential
- With [DMF] / [6.20MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [6.20MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
2
68018972AA
WASHER Differential
- With [DMF] / [6.30MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [6.30MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1
2
68018974AA
WASHER Differential
- With [DMF] / [6.38MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
  With [DMH] / [6.38MM] With Special Version Code [35-504232 / 06 / 07 / 08 /09 / 10 / 11]
- Require Quantity: 3
- Package Quantity: 1

3
68019036AA
BEARING Axle
With [DMF] / Interchangeable With [68019039AA]
With [DMH] / Interchangeable With [68019039AA]
Require Quantity: 2
Package Quantity: 1
Replaced By: 68531145AA
$124.00 $79.48
1
Add To Cart
3
68019039AA
BEARING Axle
- With [DMF] / Interchangeable With [68019036AA]
  With [DMH] / Intercahangeable With [68019036AA]
- Require Quantity: 2

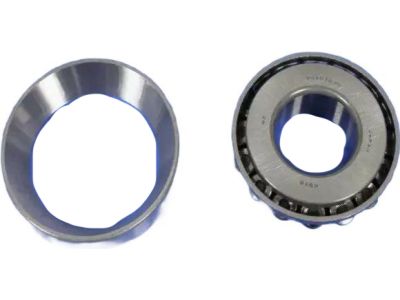

4
68018997AA

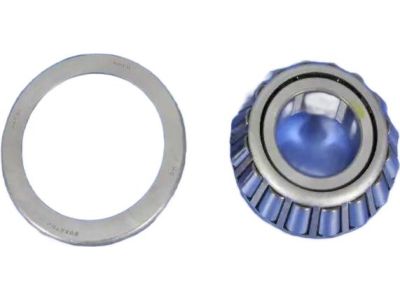

BEARING Pinion Inner
With [DMF] / Interchangeable With [68018998AA] / With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 06]
With [DMH] / Interchangeable With [68018998AA] / With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 06]
4
68018998AA
BEARING Pinion Inner
- With [DMF] / Interchangeable With [68018997AA] / With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 06]
  With [DMH] / Interchangeable With [68018997AA] / With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 06]
$145.00 $94.42
1
Add To Cart

5
68018935AA
WASHER Differential
With [DMF] / [4.90MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
With [DMH] / [4.90MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
Require Quantity: 3
Package Quantity: 1
5
68018938AA
WASHER Differential
- With [DMF] / [5.10MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
  With [DMH] / [5.10MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
- Require Quantity: 3
- Package Quantity: 1
5
68018948AA
WASHER Differential
- With [DMF] / [5.30MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
  With [DMH] / [5.30MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
- Require Quantity: 3
- Package Quantity: 1
5
68018961AA
WASHER Differential
- With [DMF] / [5.50MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
  With [DMH] / [5.50MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
- Require Quantity: 3
- Package Quantity: 1
$12.10 $10.48
1
Add To Cart
5
68018963AA
WASHER Differential
- With [DMF] / [5.70MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
  With [DMH] / [5.70MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
- Require Quantity: 3
- Package Quantity: 1
5
68018965AA
WASHER Differential
- With [DMF] / [5.90MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
  With [DMH] / [5.90MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
- Require Quantity: 3
- Package Quantity: 1
5
68018969AA
WASHER Differential
- With [DMF] / [6.10MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
  With [DMH] / [6.10MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
- Require Quantity: 3
- Package Quantity: 1
5
68018971AA
WASHER Differential
- With [DMF] / [6.20MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
  With [DMH] / [6.20MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
- Require Quantity: 3
- Package Quantity: 1
5
68018972AA
WASHER Differential
- With [DMF] / [6.30MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
  With [DMH] / [6.30MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
- Require Quantity: 3
- Package Quantity: 1
5
68018974AA
WASHER Differential
- With [DMF] / [6.38MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
  With [DMH] / [6.38MM] With Special Version Code [35-504232 / 06 / 07 / 08 / 09 / 10 / 11] Or [35-504006 / 06]
- Require Quantity: 3
- Package Quantity: 1

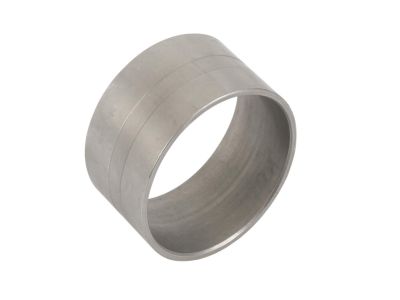

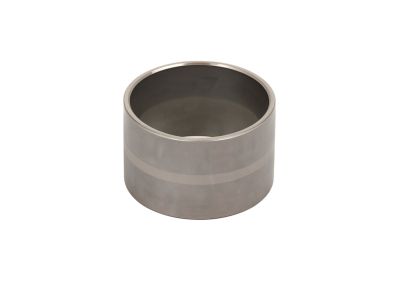

6
68019018AA

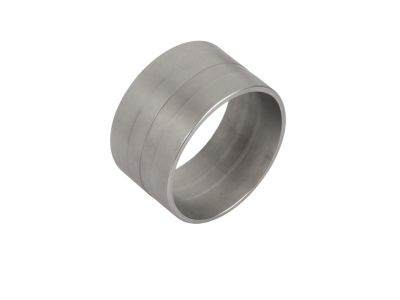

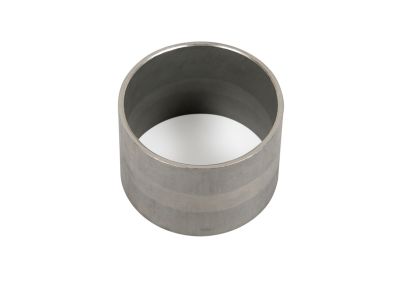

SPACER
$30.30 $20.43
1
Add To Cart

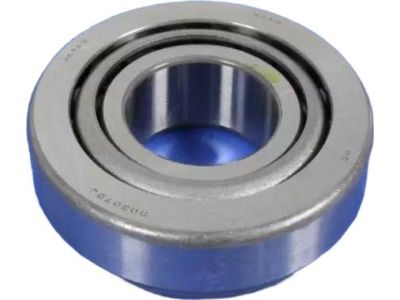

7
68018980AA
BEARING Pinion Outer
With [DMF] / Interchangeable With [68018981AA]
With [DMH] / Interchangeable With [68018981AA]
7
68018981AA
BEARING Pinion Outer
- With [DMF] / Interchangeable With / [68018980AA]
  With [DMH] / Interchangeable With / [68018980AA]
$55.85 $43.23
1
Add To Cart

8
68019031AA
SEAL Differential Bearing
- Replaced By: 68546080AA
$46.45 $42.62
1
Add To Cart

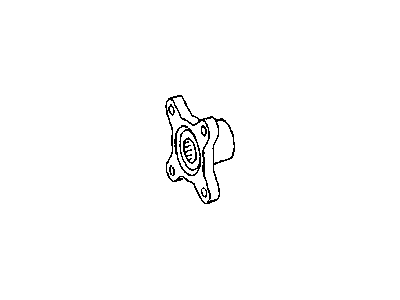

9
68018931AB
FLANGE Center Differential
- Replaced By: 68018931AC
$145.00 $98.14
1
Add To Cart

10

68018934AA
NUT Pinion Yoke

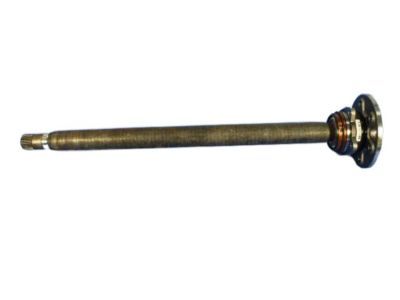

11
68044521AA

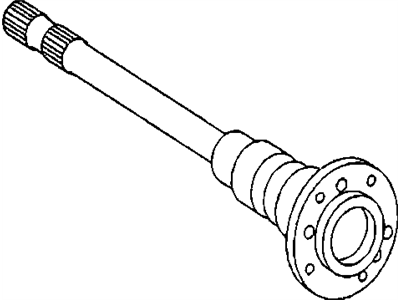

SHAFT Axle See Note
Right

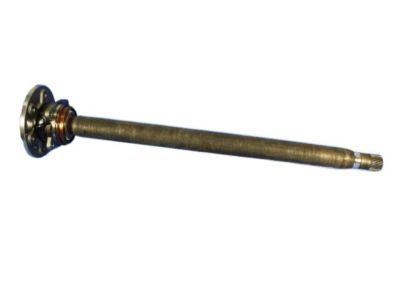

11
68019095AB
SHAFT Axle See Note
- Left

12
4862654AB
PLUG Expansion
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 68138129AA
$10.20 $6.92
1
Add To Cart
