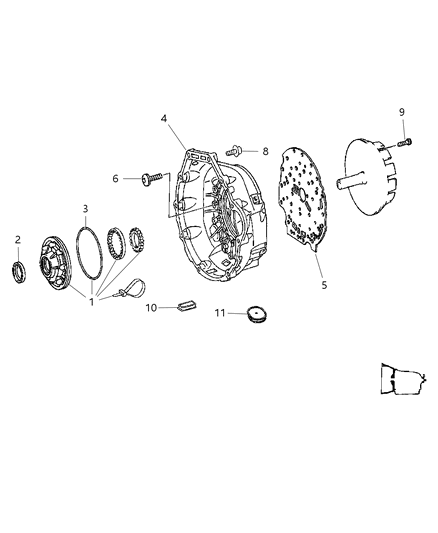

Diagram (1 of 1): NAG1; W5A380; 5-Speed; Automatic Transmission Oil Pump and Related Parts [DGZ]

2009 Dodge Sprinter 3500 Oil Pump & Related Parts Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
5080070AA
PUMP Transmission Oil
- Replaced By: RL087860AA
$610.00 $363.36
1
Add To Cart

2
52108424AA
SEAL
- Replaced By: 68024613AA
$84.70 $57.13

3

52107900AA
O RING Transmission Oil Pump
$38.85 $26.33
1
Add To Cart

4
5161462AA
HOUSING Torque Converter

5

52108147AA
PLATE Intermediate
$112.00 $74.79
1
Add To Cart

6
6104158AA
BOLT Torx Head M8x1.25x40
- Require Quantity: 2
- Package Quantity: 1
$11.00 $7.45
1
Add To Cart

8
52107934AA
BOLT Torx Head M6x32
- Require Quantity: 11
- Package Quantity: 1
$19.35
1
Add To Cart

9
52107933AA
BOLT Torx Head M8x35
- Require Quantity: 7
- Package Quantity: 1
- Replaced By: 68064780AA
$6.75 $4.56
1
Add To Cart

10
5073886AA
GASKET
- Require Quantity: 2
- Package Quantity: 1
$5.45 $4.26
1
Add To Cart

11
53013767AA
PLUG
- Replaced By: 68013686AA
$47.00 $32.46
1
Add To Cart

52108206AA
BOLT Socket Head M8x40
- Require Quantity: 15
- Package Quantity: 1
$11.10 $7.43
1
Add To Cart

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 2009 Dodge Sprinter 3500 parts. Parts like Oil Pump & Related Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L Diesel. Transmission: 5-Speed Automatic Transmission.
