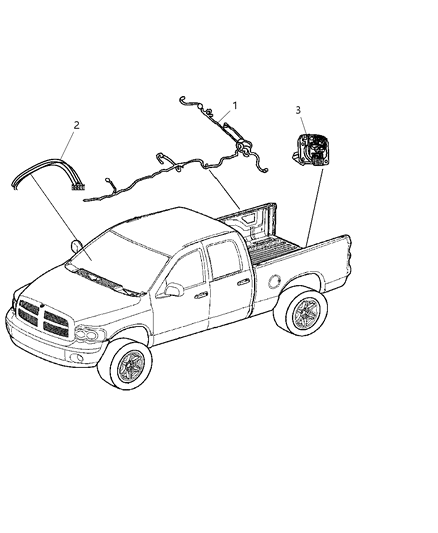

Diagram (1 of 1): Electrical Wiring Chassis and Underbody

2011 Ram 2500 Wiring Chassis & Underbody Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
68032906AD
WIRING Chassis
[XBC]
Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
1
68077708AB
WIRING Chassis
- Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
1
68077708AC
WIRING Chassis
- After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
- Replaced By: 68077708AD
1
68077708AD
WIRING Chassis
- After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
1
68077709AB
WIRING Chassis
- [XAC] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
- Replaced By: 68077709AC
$284.00 $191.76
1
Add To Cart
1
68077709AC
WIRING Chassis
- [XAC] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
1
68077709AD
WIRING Chassis
- [XAC] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
1
68077712AB
WIRING Chassis
- [XBC] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
1
68077712AC
WIRING Chassis
- [XBC] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
- Replaced By: 68077712AD
$259.00 $174.84
1
Add To Cart
1
68077712AD
WIRING Chassis
- [XBC] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 62 - REG CAB 8 FT BOX, 7 - Med. Duty DODGE 4WD
1
68077713AB
WIRING Chassis
- Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077713AC
WIRING Chassis
- After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
- Replaced By: 68077713AD
1
68077713AD
WIRING Chassis
- After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077714AB
WIRING Chassis
- [XAA] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077714AC
WIRING Chassis
- [XAA] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
- Replaced By: 68077714AD
1
68077714AD
WIRING Chassis
- [XAA] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077715AB
WIRING Chassis
- [XAA], [XAC] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077715AC
WIRING Chassis
- [XAA], [XAC] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
- Replaced By: 68077715AD
$579.00 $395.58
1
Add To Cart
1
68077715AD
WIRING Chassis
- [XAA], [XAC] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077716AB
WIRING Chassis
- [XBC] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077716AC
WIRING Chassis
- [XBC] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
- Replaced By: 68077716AD
$524.00 $155.88
1
Add To Cart
1
68077716AD
WIRING Chassis
- [XBC] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077717AB
WIRING Chassis
- [DSE] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
- Replaced By: 68077717AC
$305.00 $206.42
1
Add To Cart
1
68077717AC
WIRING Chassis
- [DSE] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077717AD
WIRING Chassis
- [DSE] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
$477.00 $374.63
1
Add To Cart
1
68077718AB
WIRING Chassis
- [XAA], [DSE] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077718AC
WIRING Chassis
- [XAA], [DSE], [XAC] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077718AD
WIRING Chassis
- [XAA], [DSE], [XAC] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 91 - CREW CAB W.B.2
1
68077719AB
WIRING Chassis
- Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 81 - Mega Cab
- Replaced By: 68077719AD
1
68077719AC
WIRING Chassis
- After 06/21/10 and Up to 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 81 - Mega Cab
- Replaced By: 68077719AD
$315.00 $213.19
1
Add To Cart
1
68077719AD
WIRING Chassis
- After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 81 - Mega Cab
1
68077720AB
WIRING Chassis
- [XAA] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 81 - Mega Cab
- Replaced By: 68077720AD
$284.00 $191.76
1
Add To Cart
1
68077720AC
WIRING Chassis
- [XAA] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 81 - Mega Cab
- Replaced By: 68077720AD
$284.00 $222.69
1
Add To Cart
1
68077720AD
WIRING Chassis
- [XAA] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 81 - Mega Cab
1
68077721AB
WIRING Chassis
- [XAA], [XAC] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 81 - Mega Cab
1
68077721AC
WIRING Chassis
- [XAA], [XAC] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 81 - Mega Cab
- Replaced By: 68077721AD
$595.00 $406.98
1
Add To Cart
1
68077721AD
WIRING Chassis
- [XAA], [XAC] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 81 - Mega Cab
1
68077725AB
WIRING Chassis
- Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
1
68077725AC
WIRING Chassis
- After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
- Replaced By: 68077725AD
$492.00 $332.76
1
Add To Cart
1
68077725AD
WIRING Chassis
- After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
1
68077726AB
WIRING Chassis
- [XAA] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
- Replaced By: 68077726AC
$324.00 $218.83
1
Add To Cart
1
68077726AC
WIRING Chassis
- [XAA] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
1
68077726AD
WIRING Chassis
- [XAA] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
$392.00 $307.82
1
Add To Cart
1
68077727AB
WIRING Chassis
- [XAA], [XAC] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
- Replaced By: 68077727AC
$350.00 $236.88
1
Add To Cart
1
68077727AC
WIRING Chassis
- [XAA], [XAC] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
1
68077727AD
WIRING Chassis
- [XAA], [XAC] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
1
68077731AB
WIRING Chassis
- [XBC] Up to 06/21/10
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
1
68077731AC
WIRING Chassis
- [XBC] After 06/21/10 and Up To 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
1
68077731AD
WIRING Chassis
- [XBC] After 03/14/11
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 7 - Med. Duty DODGE 4WD, 92 - CREW CAB W.B.3
$525.00 $412.61
1
Add To Cart

2

68049133AA
WIRING KIT Trailer Tow
$51.55 $25.34
1
Add To Cart

3
68014986AB
CONNECTOR Trailer Tow
- Replaced By: 68573359AA
$105.00 $74.52
1
Add To Cart

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 2011 Ram 2500 parts. Parts like Wiring Chassis & Underbody are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 6.7L Diesel, 8 Cyl 5.7L. Transmission: 5-Speed Automatic Transmission, 6-Speed Automatic Transmission, 6-Speed Manual Transmission.
