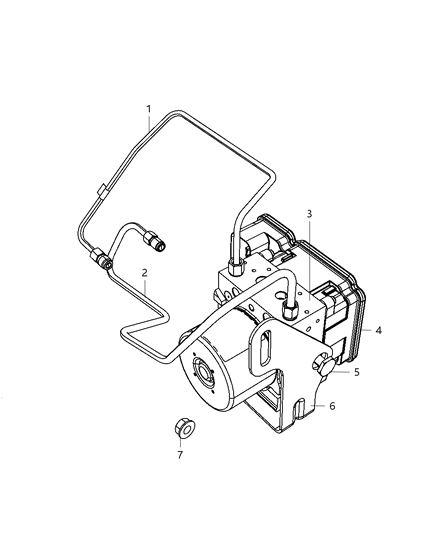

Diagram (1 of 1): Brakes HCU and Tubes to Master Cylinder

2012 Jeep Grand Cherokee Hydraulic Control Unit & Brake Tubes, To Master Cylinder Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
5154205AB
TUBE ASSEMBLY, BRAKE Master Cylinder to HCU Secondary
[NHP]
1
52124729AF
TUBE ASSEMBLY, BRAKE Master Cylinder to HCU Secondary
- [NHM]
$25.10 $16.97
1
Add To Cart

2
5154204AB
TUBE ASSEMBLY, BRAKE Master Cylinder to HCU Primary
[NHP]
Replaced By: 68142305AB
$52.35 $35.00
1
Add To Cart
2
52124728AF
TUBE ASSEMBLY, BRAKE Master Cylinder to HCU Primary
- [NHM]
- Replaced By: 68142305AB
$52.35 $35.00
1
Add To Cart

3

68085389AA
CONTROL UNIT Anti-Lock Brake
$875.00 $574.20
1
Add To Cart

4
68139770AA
MODULE Anti-Lock Brake System
[ERB] Or [EZH], With [NHM]
[EXF],[NHM]
Fitting Vehicle Options: 74 - SPORT UTILITY 4-DR TYPE #4, ERB - 6 Cyl 3.6L VVT, EXF, EZH - 8 Cyl 5.7L MDS VVT, J - JEEP - 4WD, T - JEEP - 2WD
Replaced By: 68139770AB
4
68157064AA
MODULE Anti-Lock Brake System
- [ERB] Or [EXF] Or [EZH], With [NHP]
  [ESG], [NHM] Or [NHP]
- Fitting Vehicle Options: 74 - SPORT UTILITY 4-DR TYPE #4, ERB - 6 Cyl 3.6L VVT, ESG - 8 Cyl 6.4L SRT HEMI MDS, EXF, EZH - 8 Cyl 5.7L MDS VVT, J - JEEP - 4WD, T - JEEP - 2WD
- Replaced By: 68157064AC

5
68085393AA
SCREW Hex Head
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 68085393AB
$4.50 $3.01
1
Add To Cart

6
68085390AA
BRACKET Hydraulic Control Unit
$51.00 $34.56
1
Add To Cart

7
4779281AA
GROMMET
- Require Quantity: 3
- Package Quantity: 1
$5.20 $3.45
1
Add To Cart

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 2012 Jeep Grand Cherokee parts. Parts like Hydraulic Control Unit & Brake Tubes, To Master Cylinder are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.6L, 8 Cyl 5.7L, 8 Cyl 6.4L. Transmission: 5-Speed Automatic Transmission, 6-Speed Automatic Transmission.
