Diagram (1 of 1): Air Conditioners and Heaters A/C Plumbing

2012 Ram 3500 Cab Chassis A/C Plumbing Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
68092244AB
LINE A/C Liquid Includes: Gaskets, O-Rings, Valve Core, Cap
Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, EZ0
1
68092251AB
LINE A/C Liquid Includes: Gaskets, O-Rings, Valve Core, Cap
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ET0
1
68092314AB
LINE A/C Liquid Includes: Gaskets, O-Rings, Valve Core, Cap
- [HA0], [AH2]
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ET0

2
68142220AA
SEAL A/C Line

3
5179284AA
VALVE CORE A/C Line
$24.25 $16.63
1
Add To Cart

4

5179285AA
CAP A/C Charge Valve

5

68086125AA
SEAL Slim Line 3/8"
$32.50 $21.97
1
Add To Cart

6
6101445
NUT AND WASHER Hex M8x1.25
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6102440AA
$10.85 $7.51
1
Add To Cart

7
52014545AA
LINE A/C Discharge Jumper Includes: O-Rings
Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DBA, EZ0
7
68078247AA
LINE A/C Discharge Jumper Includes: O-Rings
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DBB, ET0

8

68046015AA
O RING A/C Line
$23.65 $16.23
1
Add To Cart

9

68046015AA
O RING A/C Line
$23.65 $16.23
1
Add To Cart

10
68105166AB
LINE A/C Suction Includes: Gasket, O-Rings, Valve Core, Cap, Clips
[HA0], [AH2]
Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ET0
Replaced By: 68105166AC
10
68092247AB
LINE A/C Suction Includes: Gasket, O-Rings, Valve Core, Cap, Clips
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, EZ0
10
68092249AB
LINE A/C Suction Includes: Gasket, O-Rings, Valve Core, Cap, Clips
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ET0

11
68086127AA
SEAL Slim Line 5/8"
$22.75 $15.44
1
Add To Cart

12
68142217AA
SEAL Slim Line 3/4"
- Replaced By: 68110605AA
$31.25 $21.11
1
Add To Cart

13

5003461AA
VALVE CORE A/C Line
$30.90 $21.25
1
Add To Cart

14

5073260AA
CAP A/C Charge Valve

15
68142217AA
SEAL Slim Line 3/4"
- Replaced By: 68110605AA
$31.25 $21.11
1
Add To Cart

16
6104708AA
NUT Hex M6
- Replaced By: 5097674AA
$15.35 $10.44
1
Add To Cart

17
68092248AB
LINE A/C Discharge Includes: Gaskets, O-Rings, Transducer, Valve Core
Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, EZ0
17
68092250AB
LINE A/C Discharge Includes: Gaskets, O-Rings, Transducer, Valve Core
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ET0

18

5183358AA
O RING A/C Line
$23.75 $16.29
1
Add To Cart

19
68086126AA
SEAL Slim Line 1/2"
- Require Quantity: 2
- Package Quantity: 1
$22.75 $15.71
1
Add To Cart

20
68141376AA
VALVE A/C pressure Transducer
- Replaced By: 68308727AA
$87.00 $57.72
1
Add To Cart

21

5183358AA
O RING A/C Line
$23.75 $16.29
1
Add To Cart

22
55057091AC

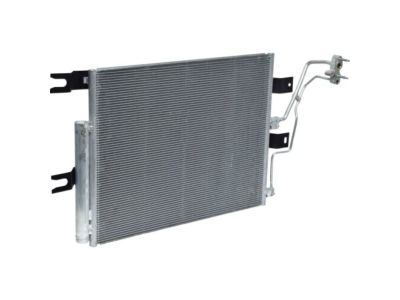

COOLER Condenser and Trans Cooler Includes: Jumper Tube, Drier
Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DBA, ET0
Replaced By: 55057091AD
$725.00 $478.50
1
Add To Cart
22
52014588AB
COOLER Condenser and Trans Cooler Includes: Jumper Tube, Drier
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DBA, EZ0
- Replaced By: 68092725AE
$967.00 $638.00
1
Add To Cart

23
55056967AD
CONDENSER Air Conditioning
- Replaced By: 55056967AE
$460.00 $302.50
1
Add To Cart

24
68138269AA
VALVE KIT A/C Expansion
- Replaced By: 68138269AB
$222.00 $166.37
1
Add To Cart

25

68046015AA
O RING A/C Line
$23.65 $16.23
1
Add To Cart

26

5161806AA
O RING A/C Line
$26.05 $17.84
1
Add To Cart

27
56021384
CLIP
- Require Quantity: 2
- Package Quantity: 1
$6.15 $4.16
1
Add To Cart

28

68069559AA
ISOLATOR A/C Condenser

29
68069560AA
BRACKET Condenser And Trans Cooler Lower
Right
29
68069561AA
BRACKET Condenser And Trans Cooler Lower
- Left

30
68069570AA
BRACKET A/C Condenser

31
68069575AA
FITTING Quick Connect
- Require Quantity: 2
- Package Quantity: 1

32
68069574AA
BOLT KIT
$19.35
1
Add To Cart

34

68447796AA
FILTER KIT A/C Filter Drier
$63.25 $42.91
1
Add To Cart

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 2012 Ram 3500 Cab Chassis parts. Parts like A/C Plumbing are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 6.7L Diesel, 8 Cyl 5.7L. Transmission: 6-Speed Automatic Transmission, 6-Speed Manual Transmission.
