Diagram (1 of 1): Electrical Wiring, Chassis and Underbody
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description

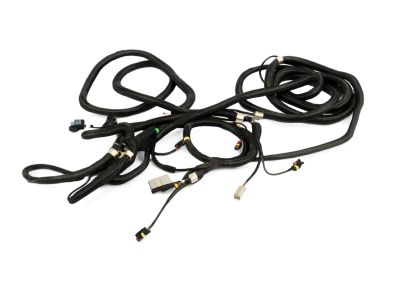

- 14727723AB
WIRING Body Right- [XAC] Or [XA3], [XAA], [JKP]
- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 3 - HD DODGE 2WD
- Replaced By: 4727723AE

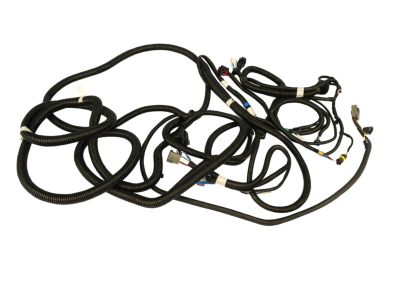

$708.00 $47.801 - 14727788AE
WIRING Body Right- [XAA], [JKP]
- Fitting Vehicle Options: 17 - VAN WHEEL BASE, 3 - HD DODGE 2WD

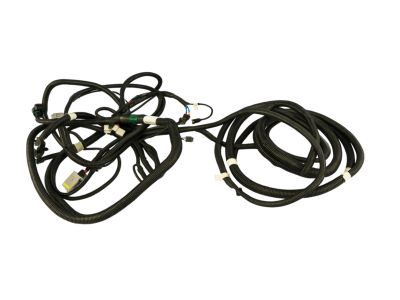

$766.00 $43.231 - 168171808AB
WIRING Body Right- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 3 - HD DODGE 2WD
- Replaced By: 68171808AE
$658.00 $174.871 - 1$279.00 $188.381
- 1$292.00 $197.401
- 168191014AB
WIRING Body Right- [XAA], [JKP]
- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 3 - HD DODGE 2WD
$279.00 $188.381 - 168191015AB
WIRING Body Right- [XAC] Or [XA3]
- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 3 - HD DODGE 2WD
$379.00 $251.491 - 168191016AB
WIRING Body Right- [XAC] Or [XA3], [JKP]
- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 3 - HD DODGE 2WD
- Replaced By: 68191016AE
$334.00 $33.091 - 1$319.00 $215.451
- 168191019AB
WIRING Body Right- [GFA], [JKP]
- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 3 - HD DODGE 2WD
$279.00 $188.381 - 168191020AB
WIRING Body Right- [GFA], [XAA]
- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 3 - HD DODGE 2WD
$279.00 $188.381 - 168191021AB
WIRING Body Right- [XAC] Or [XA3], [GFA]
- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 3 - HD DODGE 2WD
- Replaced By: 68191021AE
$632.00 $29.261 - 168191022AB
WIRING Body Right- [XAC] Or [XA3], [XAA]
- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 3 - HD DODGE 2WD
- Replaced By: 68191022AE
$502.00 $32.511 - 1$285.00 $192.891
- 168191027AB
WIRING Body Right- [XAC] Or [XA3]
- Fitting Vehicle Options: 17 - VAN WHEEL BASE, 3 - HD DODGE 2WD
- Replaced By: 68191027AE
$628.00 $31.961 - 1$534.00 $32.121
- 1$635.00 $31.241
- 24727692AA
WIRING Taillamp Jumper- [XGF] Cab Chassis Cut Away Side Marker
- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 04 - CAB CHASSIS WHEEL BASE, 05 - CAB CHASSIS WHEEL BASE, 3 - HD DODGE 2WD, 32 - CLUB CAB 2-DR 8FT BOX, 34 - QUAD CAB 4-DR 8FT BOX, 35 - QUAD CAB 4-DR XFT BOX
- Replaced By: 4727692AE
$261.00 $173.291 - 268224719AA
WIRING Taillamp Jumper- [XGF]
- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 04 - CAB CHASSIS WHEEL BASE, 05 - CAB CHASSIS WHEEL BASE, 16 - VAN WHEEL BASE, 17 - VAN WHEEL BASE, 3 - HD DODGE 2WD, 32 - CLUB CAB 2-DR 8FT BOX, 34 - QUAD CAB 4-DR 8FT BOX, 35 - QUAD CAB 4-DR XFT BOX
- Replaced By: 68224719AC
$78.95 $53.631
- 368171815AA
WIRING Body Left- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 17 - VAN WHEEL BASE, 3 - HD DODGE 2WD, EXG - 4 Cyl 3.0L F1C Turbo Diesel
- Replaced By: 68171815AD
$706.00 $464.201 - 368171816AB
WIRING Body Left- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 17 - VAN WHEEL BASE, 3 - HD DODGE 2WD, ERB - 6 Cyl 3.6L VVT
- Replaced By: 68171816AH
$205.00 $136.401 - 368172811AB
WIRING Body Left- [BC3]
- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 3 - HD DODGE 2WD, 32 - CLUB CAB 2-DR 8FT BOX, ERB - 6 Cyl 3.6L VVT
- Replaced By: 68172811AG
$230.00 $18.561 - 368172812AB
WIRING Body Left- [BC3]
- Fitting Vehicle Options: 04 - CAB CHASSIS WHEEL BASE, 3 - HD DODGE 2WD, 34 - QUAD CAB 4-DR 8FT BOX, ERB - 6 Cyl 3.6L VVT
- Replaced By: 68172812AG
$229.00 $18.391 - 368172813AB
WIRING Body Left- [BC3]
- Fitting Vehicle Options: 05 - CAB CHASSIS WHEEL BASE, 3 - HD DODGE 2WD, 35 - QUAD CAB 4-DR XFT BOX, ERB - 6 Cyl 3.6L VVT
- Replaced By: 68172813AG
$230.00 $19.981 - 368191202AA
WIRING Body Left- [BC3]
- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 3 - HD DODGE 2WD, 32 - CLUB CAB 2-DR 8FT BOX, EXG - 4 Cyl 3.0L F1C Turbo Diesel
- Replaced By: 68191202AF
$115.00 $18.501 - 368191205AA
WIRING Body Left- [BC3]
- Fitting Vehicle Options: 04 - CAB CHASSIS WHEEL BASE, 3 - HD DODGE 2WD, 34 - QUAD CAB 4-DR 8FT BOX, EXG - 4 Cyl 3.0L F1C Turbo Diesel
- Replaced By: 68191205AG
$192.00 $128.571 - 368191208AA
WIRING Body Left- [BC3]
- Fitting Vehicle Options: 05 - CAB CHASSIS WHEEL BASE, 3 - HD DODGE 2WD, 35 - QUAD CAB 4-DR XFT BOX, EXG - 4 Cyl 3.0L F1C Turbo Diesel
- Replaced By: 68191208AG
$114.00 $75.311 - 368212938AA
WIRING Body Left- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 3 - HD DODGE 2WD, 32 - CLUB CAB 2-DR 8FT BOX, EXG - 4 Cyl 3.0L F1C Turbo Diesel
- Replaced By: 68191202AG
$112.00 $74.311 - 368212941AA
WIRING Body Left- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 3 - HD DODGE 2WD, 32 - CLUB CAB 2-DR 8FT BOX, ERB - 6 Cyl 3.6L VVT
- Replaced By: 68212941AF
$229.00 $19.241 - 368212944AA
WIRING Body Left- Fitting Vehicle Options: 04 - CAB CHASSIS WHEEL BASE, 3 - HD DODGE 2WD, 34 - QUAD CAB 4-DR 8FT BOX, EXG - 4 Cyl 3.0L F1C Turbo Diesel
- Replaced By: 68191205AG
$192.00 $128.571 - 368212947AA
WIRING Body Left- Fitting Vehicle Options: 04 - CAB CHASSIS WHEEL BASE, 3 - HD DODGE 2WD, 34 - QUAD CAB 4-DR 8FT BOX, ERB - 6 Cyl 3.6L VVT
- Replaced By: 68212947AF
$225.00 $20.261 - 368212950AA
WIRING Body Left- Fitting Vehicle Options: 05 - CAB CHASSIS WHEEL BASE, 3 - HD DODGE 2WD, 35 - QUAD CAB 4-DR XFT BOX, EXG - 4 Cyl 3.0L F1C Turbo Diesel
- 368212953AA
WIRING Body Left- Fitting Vehicle Options: 05 - CAB CHASSIS WHEEL BASE, 3 - HD DODGE 2WD, 35 - QUAD CAB 4-DR XFT BOX, ERB - 6 Cyl 3.6L VVT
- Replaced By: 68212953AF
$242.00 $19.691
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 2014 Ram ProMaster 3500 parts. Parts like Wiring - Chassis & Underbody are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 3.0L Diesel, 6 Cyl 3.6L. Transmission: 6-Speed Automatic Transmission.
