Make sure this part fits

Chrysler 4294764 Cable

1987-1994 Chrysler 4294764

Customer Questions & Expert Answers (3)
Mopar 4294764 Cable
Mopar 4294764 Cable
  • Part Description
    Cable, Front
  • Manufacturer
    Mopar
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

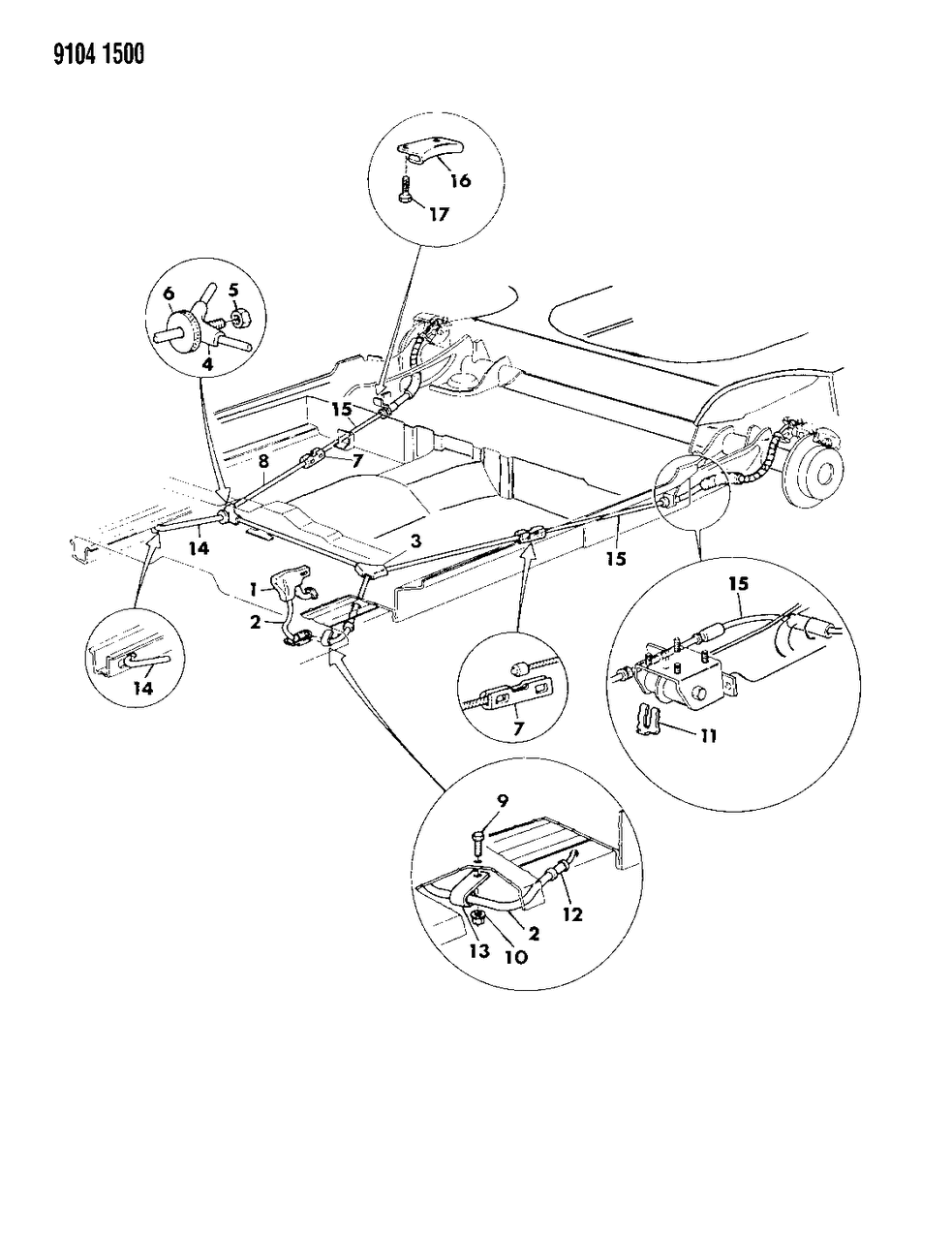

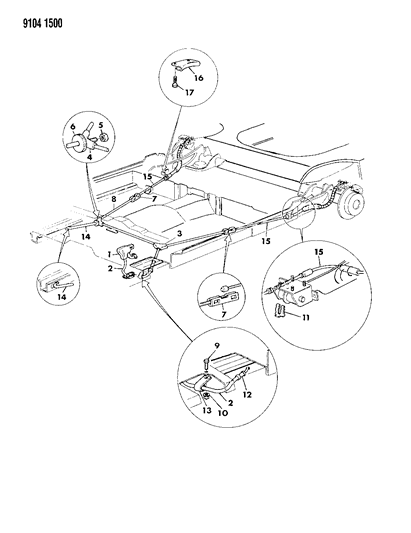

  • 4294764 Cable is Ref No. 2 in the diagram below

    1989 Chrysler TC Maserati Cable Diagram for 4294764
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts

  • Product Specifications

    BrandGenuine Chrysler
    Manufacturer Part Number4294764
    Part DescriptionCable, Front
    Other NamesFront Cable
    Item Weight1.40 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerMopar
    SKU4294764
    WarrantyThis genuine Mopar part is guaranteed by Mopar's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California’s Proposition 65

  • Vehicle Fitment

    Year Make Model Engine Important vehicle option details
    1990-1993 Chrysler Imperial6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.8LBase
    1987-1994 Chrysler LeBaron4 Cyl 2.2L, 4 Cyl 2.5L, 6 Cyl 3.0LBase, Landau, LE, LX
    1987-1993 Chrysler New Yorker4 Cyl 2.2L, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.8LFifth Avenue, Salon
    1989-1990 Chrysler TC Maserati4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L
    1987-1988 Chrysler Town & Country4 Cyl 2.2L, 4 Cyl 2.5L

  • Customer Questions & Expert Answers

    Q:
    This part will not fit my vehicle. Can you provide me with the part number for the bracket that will fit? TN. Posted by MoparPartsGiant Specialist
    A:
    You can Select Your Vehicle to check if 4294764 fits your vehicle.
    Posted by MoparPartsGiant Specialist
    Q:
    How to remove and install parking brake cables on Chrysler Imperial? Posted by Customer
    A:
    Raise the rear of the vehicle and support it securely on jack-stands. Working under the vehicle, loosen the adjusting nut until there's slack in the cables. Detach the rear end of the front cable from the connector that attaches it to the middle cable. From inside the vehicle, remove the driver's side kick panel. Pull up the forward end of the front cable and disconnect it. Pinch the cable retainer with needle-nose pliers and pull it down through the cable retaining bracket. Pull the cable assembly through the grommet in the hole in the floor. Installation is the reverse of removal. Adjust the parking brake. Remove the rear wheels and the hub/drum assemblies. Back off the equalizer adjusting nut until the cable is slack. Disconnect the rear brake cable from the brake shoe lever. Locate the retainer at the end of the rear cable, where it enters the brake shoe backing plate. Pinch this retainer with pliers and pull the retainer through the backing plate. Remove the cable lock from the brake cable support bracket on the trailing arm and detach the cable from the trailing arm assembly. Disconnect the rear brake cable from the connector at the end of the middle cable. The above procedure also applies to the other rear cable. Installation is the reverse of removal. Adjust the parking brake. Remove the caliper and brake disc. Disconnect the parking brake cable from the lever on the parking brake shoe. Compress the retainer on the end of the cable housing with pliers or a hose clamp and feed the cable through the retaining hole in the adapter. Remove the parking brake cable clip at the cable support bracket and remove the cable from the vehicle. The above procedure also applies to the other rear cable. Installation is the reverse of removal.
    Posted by MoparPartsGiant Specialist
    Q:
    How do you remove the rear brake cable from the brake backing plate for the 1987 Dodge Daytona? Posted by Customer
    A:
    To remove the rear brake cable from the brake backing plate, you should disconnect the rear brake cable from the connector, disconnect the cable at the brake shoe lever, and use a screw-type hose clamp to compress the retainers so the cable can be removed from the brake backing plate. Remove the clamp when the cable is free.
    Posted by MoparPartsGiant Specialist
    See expert answers on similar Parking Brake Cable
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

Genuine Mopar Part 4294764, the Right Choice

To ensure reliability, purchase Mopar part # 4294764 Cable. It is sometimes referred to as Chrysler Parking Brake Cable. For Mopar owners with dreams of keeping their vehicles running in prime condition, choosing OEM parts is a smart decision. Meticulously crafted, these parts follow strict factory specifications and are manufactured in top-notch facilities with advanced technologies. Furthermore, they undergo rigorous testing to ensure durability and safety, making them a reliable choice for Mopar owners. This part fits specific Chrysler Imperial, LeBaron, Town & Country models.

MoparPartsGiant.com is a leading supplier of genuine Mopar parts and accessories such as Mopar 4294764 Cable. Wondering where to find exceptional quality and affordable OEM Mopar parts? You have already come to the right place. Our website boasts a huge selection of genuine Mopar parts at the most economical prices possible. What's more, all parts come with a manufacturer's warranty. For detailed Chrysler parts information, click here.
