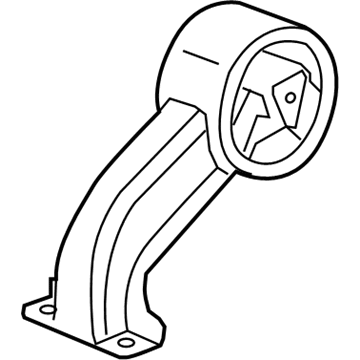

Chrysler 68092910AB Insulator

You can Select Your Vehicle to check if 68092910AB fits your vehicle.

If movement is noted, the engine should be lowered, and the mount fasteners tightened. Rubber preservative may also be applied to slow deterioration.

For the front mount replacement: 1. Raise the vehicle and remove the splash shield. 2. Support the engine with a block of wood. 3. Remove the front mount through-bolt and crossmember-to-mount bolts. 4. Take out the mount. 5. If the mount bracket needs replacement, remove the bracket-to-block bolts. 6. Installation follows the reverse order.

Engine mounts seldom require attention, but broken or deteriorated mounts should be replaced immediately to prevent damage or accelerated wear on driveline components.

For the front mount replacement: 1. Raise the vehicle and remove the splash shield. 2. Support the engine with a block of wood. 3. Remove the front mount through-bolt and crossmember-to-mount bolts. 4. Take out the mount. 5. If the mount bracket needs replacement, remove the bracket-to-block bolts. 6. Installation follows the reverse order.

To check the mounts, the engine must be raised slightly to relieve weight from them. Begin by raising the vehicle and securely supporting it on jackstands. Then, remove the front wheels and tires. Position two jacks-one under the crankshaft pulley and the other under the transaxle bellhousing-using a block of wood to protect the components while raising the engine/transaxle just enough to relieve the mounts. Inspect the mounts for any cracks, hardened rubber, or separation from the metal plates, and check for movement between the mount plates and the engine or subframe. Tighten any loose fasteners as necessary. Applying rubber preservative can help slow deterioration.

To replace the right mount, raise the vehicle, remove the power steering fluid reservoir, support the engine, and take out the engine mount bracket and the mount itself. Replace it with a new one and tighten the bolts.

To replace the right mount, remove the coolant reservoir, raise the vehicle, and remove the under-vehicle splash shield. Move the heater tube out of the way, then remove the engine mount bracket-to-timing cover support bolts and the engine mount bracket-to-mount bolts. Support the engine, remove the engine mount-to-body bolts, and the body-to-mount bolts from underneath. Replace the engine mount, tighten the body-to-mount bolts, lower the engine, and tighten the mount-to-bracket bolts. The installation follows the reverse order.

To replace the right mount, raise the vehicle, remove the power steering fluid reservoir, support the engine, and take out the engine mount bracket and the mount itself. Replace it with a new one and tighten the bolts.
