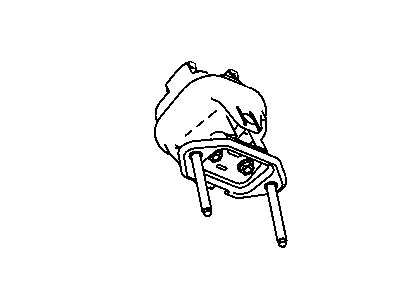

Chrysler 5037794AB INSULATOR-Engine Mount

You can Select Your Vehicle to check if 5037794AB fits your vehicle.

If movement is noted during the mount inspection, lower the engine and tighten the mount fasteners.

Raise the engine with a jack and block of wood under the oil pan until the engine mount studs clear the engine bracket and the subframe.

The first step is to disconnect the cable from the negative terminal of the battery, then raise the vehicle and support it securely on jackstands.

The alternator support bracket must be removed.

Position two jacks, one under the crankshaft pulley and the other under the transmission bell housing. Place a block of wood between the jack head and the crankshaft pulley or bellhousing, then carefully raise the engine/transmission just enough to take the weight off the mounts.

For replacement, follow these steps: Disconnect the cable from the negative terminal of the battery. Raise the vehicle and support it securely on jackstands (if not already done). Position a jack under the engine oil pan with a large wood block between the jack head and the oil pan. If you're removing the right side engine mount, remove the alternator support bracket. Remove the engine mount-to-subframe nuts and raise the engine with the jack. Remove the mount-to-engine bracket bolts. Install the new mount, making sure it is correctly positioned in the bracket. Install the fasteners and tighten them securely.

Raising the engine slightly during the check is done to remove the weight from the mounts, allowing for a proper inspection.

Remove the engine mount heat shield.
