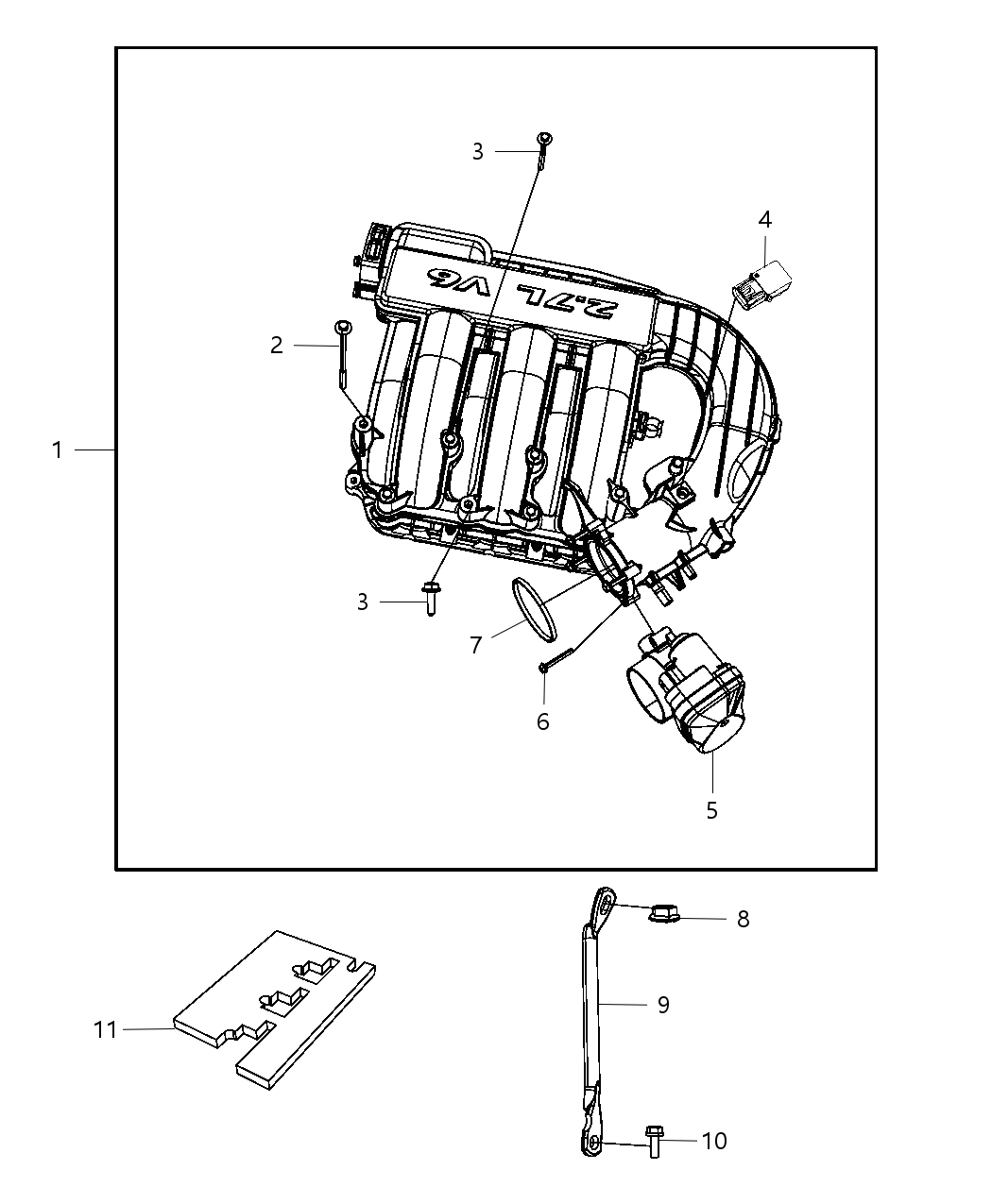

Chrysler 4591862AJ Plenum-Intake Manifold

You can Select Your Vehicle to check if 4591862AJ fits your vehicle.

Disconnect the brake booster vacuum hose, canister purge hose, and the PCV hose.

To remove the lower intake manifold, drain the cooling system and remove the upper intake manifold. Label and detach any remaining hoses and remove the fuel rail and injectors. Remove the heater hoses and coolant hoses. Loosen the remaining manifold mounting bolts/nuts and carefully break the gasket seal. Turn the manifold over, replace the O-ring on the heater supply tube, and remove all traces of old gasket material and sealant. Clean the mating surfaces with lacquer thinner or acetone. Apply RTV sealant around the front and rear cylinder head water passages and lay the new gaskets in place. Position the manifold on the engine, aligning the gaskets and manifold with the ports in the cylinder heads. Install the fuel rail and injectors, then tighten the nuts/bolts following the recommended sequence. Refill the cooling system, run the engine, and check for leaks.

Check for and disconnect anything still attached to the manifold.

To remove the lower intake manifold, drain the cooling system and remove the upper intake manifold. Label and detach any remaining hoses and remove the fuel rail and injectors. Remove the heater hoses and coolant hoses. Loosen the remaining manifold mounting bolts/nuts and carefully break the gasket seal. Turn the manifold over, replace the O-ring on the heater supply tube, and remove all traces of old gasket material and sealant. Clean the mating surfaces with lacquer thinner or acetone. Apply RTV sealant around the front and rear cylinder head water passages and lay the new gaskets in place. Position the manifold on the engine, aligning the gaskets and manifold with the ports in the cylinder heads. Install the fuel rail and injectors, then tighten the nuts/bolts following the recommended sequence. Refill the cooling system, run the engine, and check for leaks.

After removing the lower intake manifold, clean and inspect the sealing surfaces and gaskets, replacing them if needed.

Position the lower intake manifold correctly over the cylinder heads and install the fuel rail and injectors. Tighten the bolts following the recommended sequence and torque.
