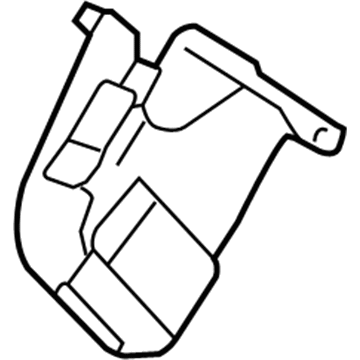

Mopar 52110084AC Bracket-Engine Mount

You can Select Your Vehicle to check if 52110084AC fits your vehicle.

Engine mounts seldom demand attention. If by any chance they become broken down or deteriorated, these should be replaced immediately in order to prevent damage or wear to the driveline components. To check the mounts, raise the vehicle and support it securely on jackstands. Next, place a jack underneath the engine oil pan and lift up slightly thus removing weight from the mountings. Look at the mount insulators for cracked or hardened rubber or separation from the metal in center. Also, make sure there is no relative sliding between mount and engine or frame. In case of any movement downwards lower it and tighten up mounting fasteners. As a first step in replacement disconnect battery cable and raise vehicle on jackstands. Hold engine then remove through bolts to detach mount from frame bracket and engine for 2WD models. For 4WD models remove skid plate, engine crossmember, and engine oil filter .Use an engine hoist to raise the engine slightly in order to take off weight from under mounts.Remove two front axle assembly bolts that attach it to frame as well as front axle block.This will allow us lower the front axle enough so that we can remove old mount out.Install new mount correctly positioned with regard to other parts of automobile then lastly secure it tightly.

It is crucial to promptly replace broken or deteriorated engine mounts to prevent additional strain on drive line components.

The engine mounting system consists of three molded mounts - two front mounts that support the engine assembly and one rear mount that supports the transmission and restricts torqueing action of the powertrain.

To check the engine mounts, the engine must be raised slightly to remove the weight from the mounts. The vehicle should be raised and securely supported on jackstands. Then, a jack should be placed under the engine oil pan with a large wood block between the jack head and the oil pan to prevent damage. The engine should be raised just enough to take the weight off the mounts. The mounts should be inspected for cracked, hardened, or separated rubber, as well as any relative movement between the mount plates and the engine or frame.

By raising the vehicle and supporting it securely on jackstands. Then, positioning a jack under the engine oil pan and raising the engine slightly to remove the weight from the mounts.

If any movement is observed between the inner and outer portions of the mounts, lower the engine and tighten the mount fasteners.
