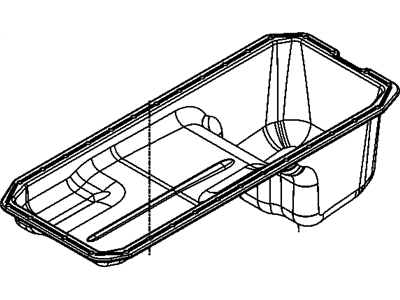

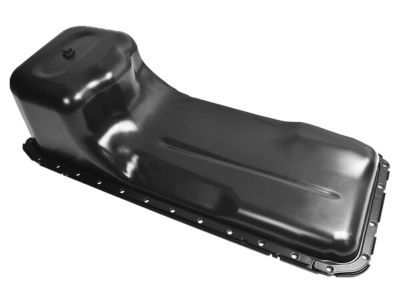

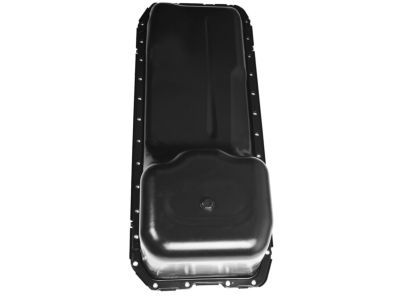

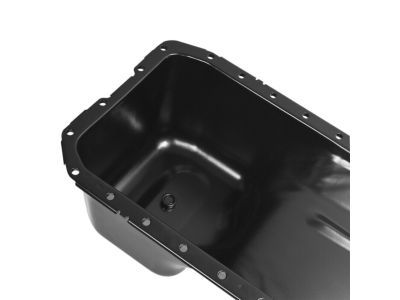

Mopar 68043300AA Pan-Engine Oil

You can Select Your Vehicle to check if 68043300AA fits your vehicle.

Disconnect the cables from the negative terminals of the batteries. Drain the engine oil. Raise the vehicle and support it securely on jackstands. Remove the oil dipstick. For 2WD models, remove the fan and fan shroud. Remove the starter. Remove the transmission. Remove the flywheel housing and the driveplate. Remove the steering gear mounting bolts and lower the steering gear. For 4WD models, unbolt the radiator shroud but don't remove it. Attach an engine support fixture or a hoist to the engine lift brackets with a chain. Raise the engine slightly, then remove the front engine mount through-bolts. Continue raising the engine until sufficient clearance is obtained under it. Remove the two bolts from the front of the engine block support. Remove the oil pan bolts and use a putty knife between the block and the pan to break the gasket seal. Lower the pan to access and remove the two bolts retaining the oil suction tube near the front of the block. Lower the suction tube into the oil pan and remove the oil pan and suction tube together. Clean the interior of the oil pan with rags and solvent and clean the oil suction tube. Also clean the pan mounting surface of the block of any sealant, gasket material or oil. On the engine, apply a small bead of RTV sealant to the block and front cover joints, and the block and the rear seal retainer joints. Attach a new gasket to the oil suction tube mounting flange and place the suction tube into the pan, with the mounting flange at the front. Raise the oil pan up next to the block and attach the oil suction tube to the block. Install the oil pan. Tighten the bolts, starting in the center and working towards the ends, to the torque. Install the oil pan drain plug with a new sealing washer and tighten it to the torque. Refill the engine with new oil. The remainder of installation is the reverse of removal. Start the engine and check for oil leaks.

Disconnect the cables from the negative terminals of the batteries. Drain the engine oil. Raise the vehicle and support it securely on jackstands. Remove the oil dipstick. For 2WD models, remove the fan and fan shroud. Remove the starter. Remove the transmission. Remove the flywheel housing and the driveplate. Remove the steering gear mounting bolts and lower the steering gear. For 4WD models, unbolt the radiator shroud but don't remove it. Attach an engine support fixture or a hoist to the engine lift brackets with a chain. Raise the engine slightly, then remove the front engine mount through-bolts. Continue raising the engine until sufficient clearance is obtained under it. Remove the two bolts from the front of the engine block support. Remove the oil pan bolts and use a putty knife between the block and the pan to break the gasket seal. Lower the pan to access and remove the two bolts retaining the oil suction tube near the front of the block. Lower the suction tube into the oil pan and remove the oil pan and suction tube together. Clean the interior of the oil pan with rags and solvent and clean the oil suction tube. Also clean the pan mounting surface of the block of any sealant, gasket material or oil. On the engine, apply a small bead of RTV sealant to the block and front cover joints, and the block and the rear seal retainer joints. Attach a new gasket to the oil suction tube mounting flange and place the suction tube into the pan, with the mounting flange at the front. Raise the oil pan up next to the block and attach the oil suction tube to the block. Install the oil pan. Tighten the bolts, starting in the center and working towards the ends, to the torque. Install the oil pan drain plug with a new sealing washer and tighten it to the torque. Refill the engine with new oil. The remainder of installation is the reverse of removal. Start the engine and check for oil leaks.

Remove the oil pan bolts, ensuring all are removed before using gentle force to separate the pan from the engine, breaking the gasket seal with a rubber mallet. Exercise caution to avoid prying on the gasket.

Remove the crossmember beneath the oil pan (front crossmember mounting bolts for 4WD models). If applicable, unbolt the steering gear without disconnecting the fluid lines and mark the front driveshaft position before detaching it from the front axle. Safely support the front axle with jacks at each end and remove the axle mounting bolts to lower the front axle, creating sufficient working room for oil pan removal.

To remove the lower oil pan, you should start by removing the bolts and nuts around its perimeter. Be cautious not to pry between the upper and lower pans to avoid damage. You can tap the pan with a soft-face hammer to break the gasket seal or use a putty knife if needed.

Refill the engine with new oil. The remainder of installation is the reverse of removal. Start the engine and check for oil leaks.

Remove the bolts and nuts (noting the stud locations), then carefully separate the oil pan from the block. Avoid prying between the block and the pan to prevent damage to the sealing surfaces and gasket. Instead, tap on the side of the oil pan with a rubber mallet if necessary to break the gasket seal.

The first step is to disconnect the cable from the negative terminal of the battery. Apply the parking brake and block the rear wheels. Then, raise the front of the vehicle and securely place it on jackstands.

Before removing the oil pan, it's important to disconnect the battery's negative terminal and securely raise the front of the vehicle on jackstands. Apply the parking brake and block the rear wheels for safety. Additionally, drain the engine oil.

Raise the oil pan up next to the block and attach the oil suction tube to the block. Install the oil pan. Tighten the bolts, starting in the center and working towards the ends, to the torque. Install the oil pan drain plug with a new sealing washer and tighten it to the torque.

The remainder of the installation is the reverse of removal. Refill the engine with oil and replace the oil filter. Run the engine until normal operating temperature is reached and check for leaks.

After removing the oil pans, it's essential to clean both the pans and mating surfaces. Apply RTV sealant to the upper pan's sealing surface. Install the upper pan and bolts, tightening them finger-tight. Then, tighten the pan-to-transmission bolts and the remaining bolts in a circular pattern from the middle outwards to the torque.

For installation, clean the oil pan with solvent, thoroughly clean the mounting surfaces of the oil pan and engine block, and wipe the gasket surfaces clean with a rag soaked in brake cleaner. Install the oil pump pick-up tube with new O-rings and apply RTV sealant to specified joints. Replace the windage tray/gasket assembly with a new one and ensure alignment studs are correctly positioned in the engine block.

For installation, clean the oil pan with solvent, thoroughly clean the mounting surfaces of the oil pan and engine block, and wipe the gasket surfaces clean with a rag soaked in brake cleaner. Install the oil pump pick-up tube with new O-rings and apply RTV sealant to specified joints. Replace the windage tray/gasket assembly with a new one and ensure alignment studs are correctly positioned in the engine block.

Attach an engine hoist or an engine support fixture to the lifting eyes on the engine. Raise the engine just enough to take the weight of the engine off the engine mounts, then remove the engine mount through-bolts. Raise the engine until the engine fan is almost in contact with the fan shroud.

After removing the oil pans, it's essential to clean both the pans and mating surfaces. Apply RTV sealant to the upper pan's sealing surface. Install the upper pan and bolts, tightening them finger-tight. Then, tighten the pan-to-transmission bolts and the remaining bolts in a circular pattern from the middle outwards to the torque.
